F100BET (2003)
UPPER CASING

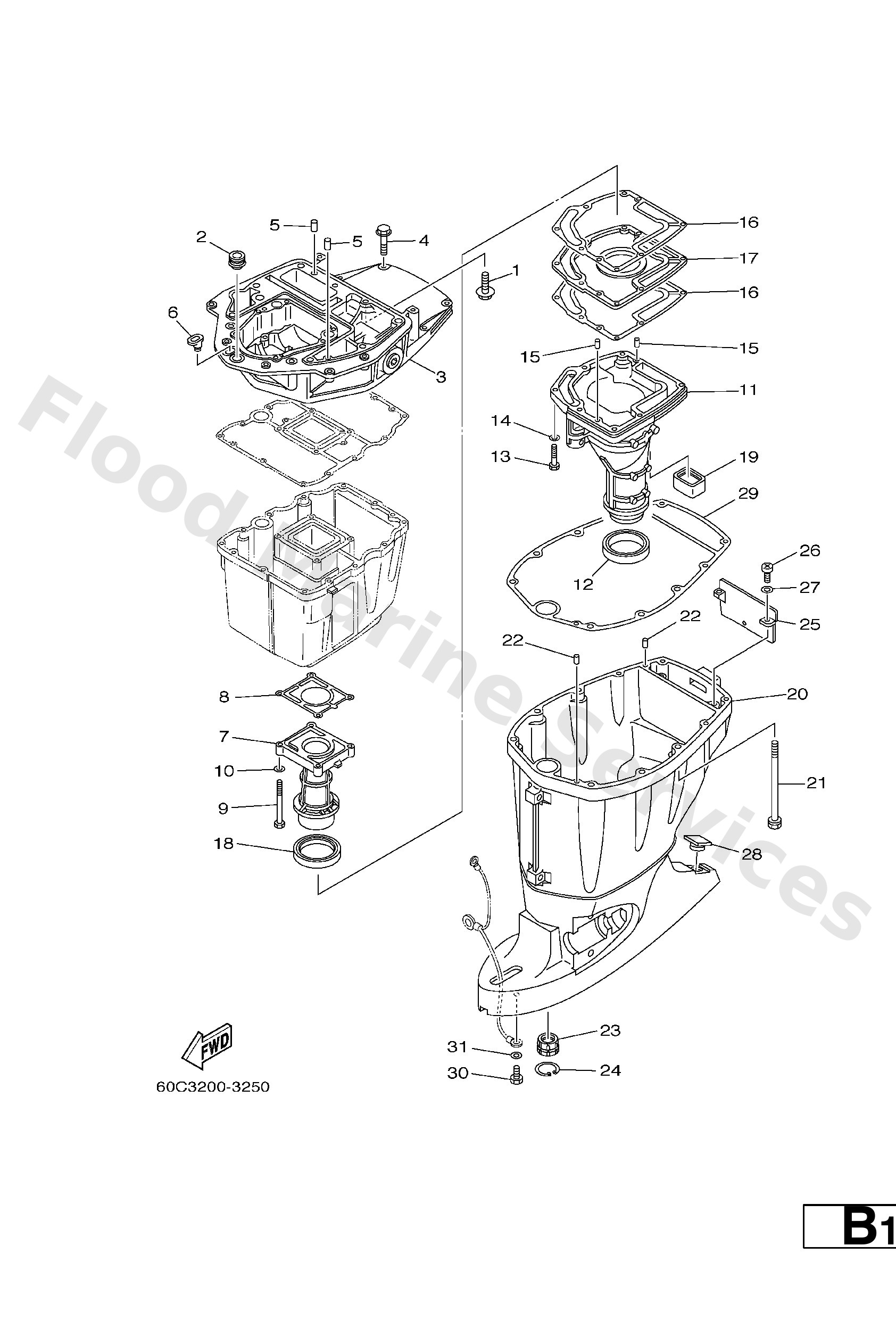

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
90119−08M58
Bolt, with washer
Loading…
↗
2
67F−42724−00
Grommet
Loading…
↗
3
67F−41137−02−94
Guide, exhaust
Loading…
↗
4
97575−08540
Bolt, hexagon w/w deep recess
Loading…
↗
5
93608−16M16
Pin, dowel(6t4)
Loading…
↗
6
6G1−42727−00
Grommet
Loading…
↗
7
60C−41131−01−5B
Manifold, ext. 1
Loading…
↗
8
67F−41133−A1
Gasket, exhaust manifold 1
Loading…
↗
9
97075−06070
Bolt(4kg)
Loading…
↗
10
92995−06600
Washer, plain (646)
Loading…
↗
11
60C−14711−10−5B
L
Muffler 1
Loading…
↗
11
60C−14711−30−5B
X
Muffler 1
Loading…
↗
12
68V−45123−00
Gasket, muffler
Loading…
↗
13
97075−06030
Bolt(jf7)
Loading…
↗
15
93606−19M23
Pin, dowel
Loading…
↗
16
67F−41134−A0
Gasket, exhaust manifold
Loading…
↗
17
67F−45181−00−5B
Plate
Loading…
↗
18
67F−41138−00
Seal, ext. 1
Loading…
↗
19
67F−45127−00
Seal
Loading…
↗
20
68V−45111−11−8D
L
Casing, upper
Loading…
↗
20
68V−45111−31−8D
X
Casing, upper
Loading…
↗
21
90119−10M08
Bolt, with washer
Loading…
↗
23
6E5−45318−00
Bushing, drive shaft 3
Loading…
↗
24
93420−36M01
Circlip (6a0)
Loading…
↗
25
67F−45151−00
Cover, upper casing
Loading…
↗
26
97880−06016
Screw pan head
Loading…
↗
27
92990−06600
Washer, plain (646)
Loading…
↗
28
6H3−45155−00
Cap
Loading…
↗
29
67F−45113−00
Gasket, upper casing
Loading…
↗
30
97095−06010
Bolt
Loading…
↗
