F100CET (2003)
UPPER CASING

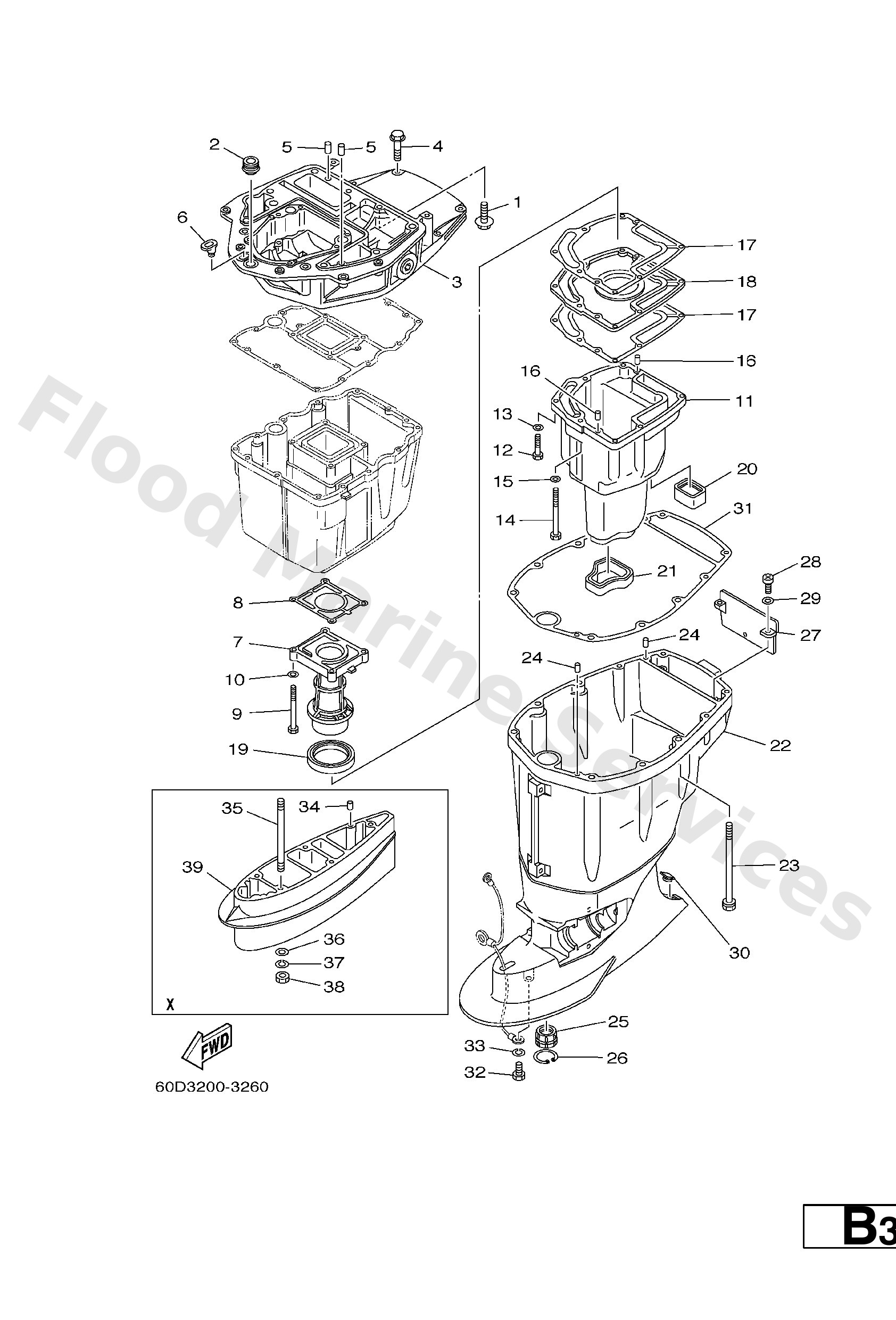

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
90119−08M58
Bolt, with washer
Loading…
↗
2
67F−42724−00
Grommet
Loading…
↗
3
67F−41137−02−94
Guide, exhaust
Loading…
↗
4
97575−08540
Bolt, hexagon w/w deep recess
Loading…
↗
5
93608−16M16
Pin, dowel(6t4)
Loading…
↗
6
6G1−42727−00
Grommet
Loading…
↗
7
60C−41131−01−5B
Manifold, ext. 1
Loading…
↗
8
67F−41133−A1
Gasket, exhaust manifold 1
Loading…
↗
9
97075−06070
Bolt(4kg)
Loading…
↗
10
92995−06600
Washer, plain (646)
Loading…
↗
11
60D−14711−00−5B
Muffler 1
Loading…
↗
12
97075−06030
Bolt(jf7)
Loading…
↗
14
97075−06050
Bolt(jf7)
Loading…
↗
16
93606−19M23
Pin, dowel
Loading…
↗
17
67F−41134−A0
Gasket, exhaust manifold
Loading…
↗
18
67F−45181−00−5B
Plate
Loading…
↗
19
67F−41138−00
Seal, ext. 1
Loading…
↗
20
67F−45127−00
Seal
Loading…
↗
21
67F−45123−00
Gasket, muffler
Loading…
↗
22
67F−45111−10−4D
Casing, upper
Loading…
↗
23
90119−10M08
Bolt, with washer
Loading…
↗
25
67F−45318−00
Bushing, drive shaft
Loading…
↗
26
93420−36M01
Circlip (6a0)
Loading…
↗
27
67F−45151−00
Cover, upper casing
Loading…
↗
28
97880−06016
Screw pan head
Loading…
↗
29
92990−06600
Washer, plain (646)
Loading…
↗
30
67F−45155−00
Cap
Loading…
↗
31
67F−45113−00
Gasket, upper casing
Loading…
↗
32
97095−08016
Bolt, hexagon deep recess
Loading…
↗
33
92995−08100
Ybs67-8 washer, spring
Loading…
↗
34
93606−12019
X
Pin, dowel (614)
Loading…
↗
35
90116−10M05
X
Bolt, stud (688)
Loading…
↗
36
92990−10600
X
Washer, plate
Loading…
↗
37
92990−10100
X
Ybs67-10 washer, spring
Loading…
↗
38
95380−10600
X
Nut(624)
Loading…
↗
39
688−45211−01−4D
X
Extension
Loading…
↗
