F13.5AMH (2003)
UPPER CASING

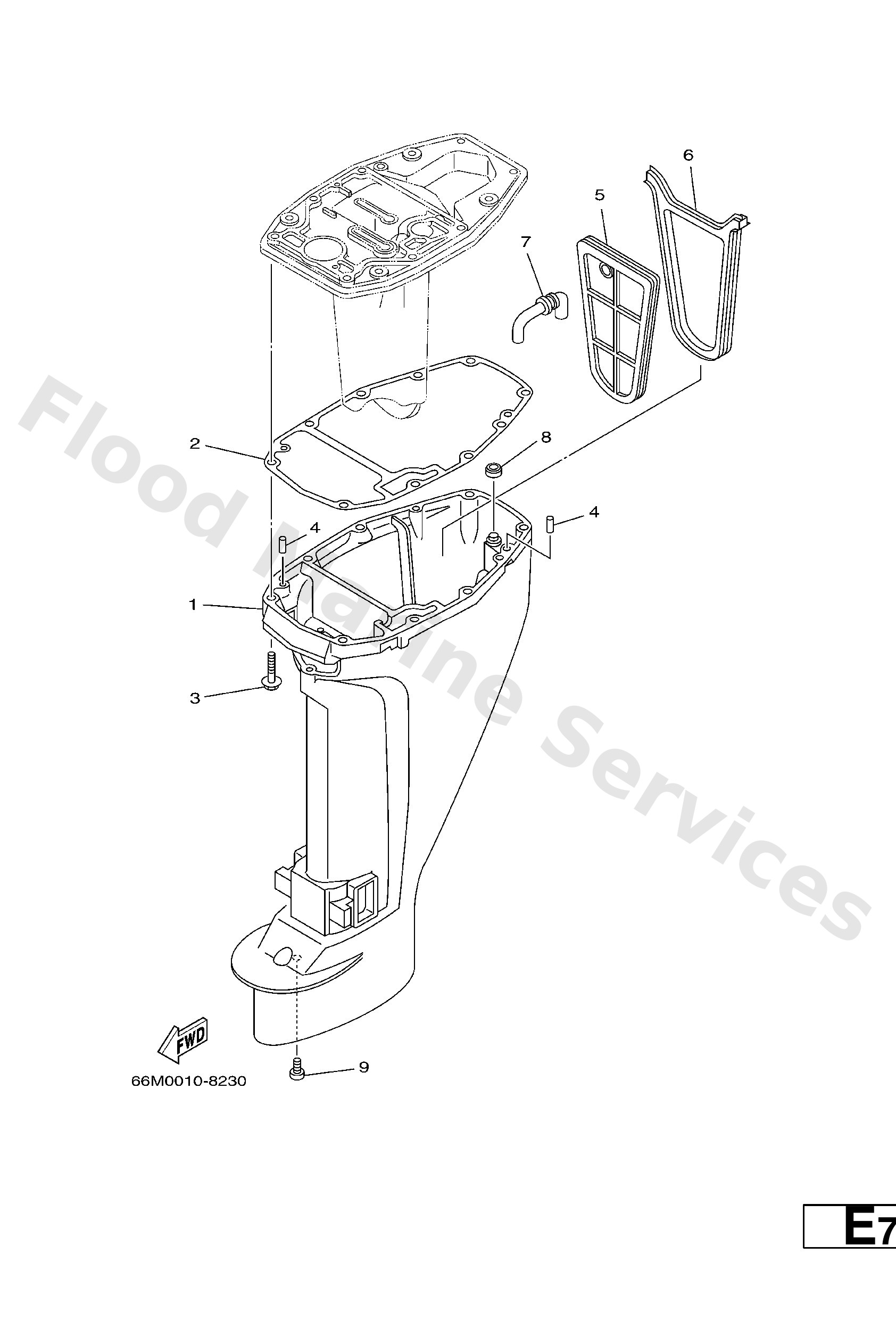

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
66M−45111−00−4D
S
Casing, upper
Loading…
↗
1
66M−45111−10−4D
L
Casing, upper
Loading…
↗
2
66M−45113−00
Gasket, upper casing
Loading…
↗
3
97575−08545
Bolt, hexagon w/w deep recess
Loading…
↗
4
93606−12019
Pin, dowel (614)
Loading…
↗
5
66M−45126−00
20 −
Loading…
↗
6
66M−45115−00
Gasket, upper casing
Loading…
↗
7
66M−45136−00
Pipe
Loading…
↗
8
66M−45128−00
Seal 2
Loading…
↗
9
90157−06M06
Screw, pan head(6m7)
Loading…
↗
