F150FET (2020)
UPPER CASING

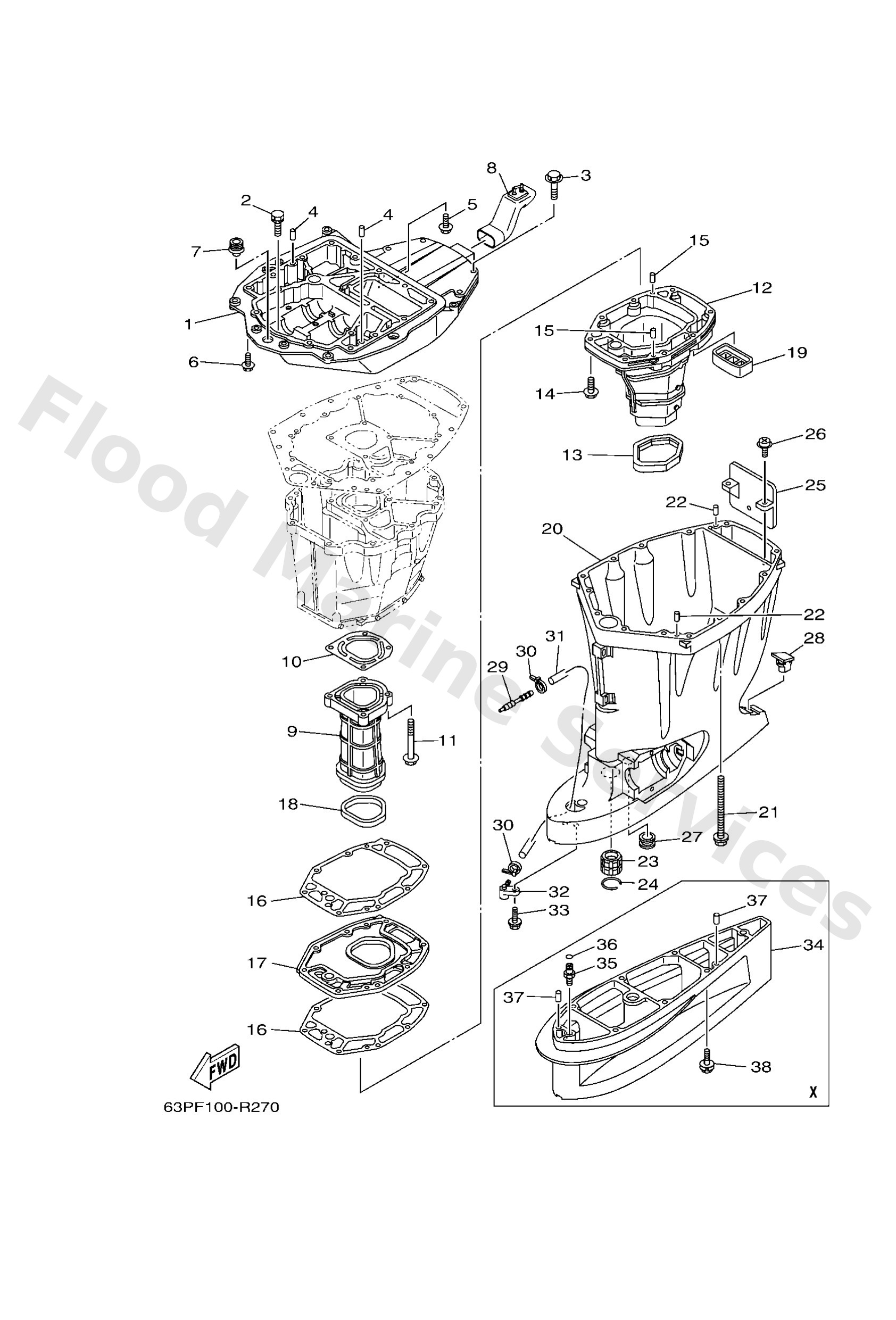

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
63P4113705
Guide, exhaust
Loading…
↗
2
9011908102
Bolt, with washer
Loading…
↗
3
97E7510545
Bolt, hexagon w/w deep recess
Loading…
↗
37
9360816M16
X(25.3")
Pin, dowel(6t4)
Loading…
↗
5
9011908M58
Bolt, with washer
Loading…
↗
6
97E7510535
Bolt, hexagon w/w deep recess
Loading…
↗
7
6E54272400
Grommet
Loading…
↗
8
6DA4276900
Seal, rubber
Loading…
↗
9
63P4113102
Manifold, ext. 1
Loading…
↗
10
63P41133A0
Gasket, exhaust manifold 1
Loading…
↗
11
97E7508560
Bolt, hexagon w/w deep recess
Loading…
↗
12
63P1471102
Muffler 1
Loading…
↗
13
69J4512300
Gasket, muffler
Loading…
↗
14
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
15
9360619M23
Pin, dowel
Loading…
↗
16
63P41134A1
Gasket, exhaust manifold
Loading…
↗
17
63P4518102
Plate
Loading…
↗
18
63P4113800
Seal, ext. 1
Loading…
↗
19
69J4512700
Seal
Loading…
↗
20
63P45111008D
Casing, upper
Loading…
↗
21
9011910007
Bolt, with washer
Loading…
↗
23
6E54531800
Bushing, drive shaft 3
Loading…
↗
24
9342036M01
Circlip (6a0)
Loading…
↗
25
69J1462401
Cover, exhaust
Loading…
↗
26
9798006216
Screw, with washer(6h2)
Loading…
↗
27
6E54436600
Damper, water seal 2
Loading…
↗
28
6C54515500
Cap
Loading…
↗
29
6E58355800
End, nipple
Loading…
↗
30
9046511M10
Clamp
Loading…
↗
31
90445070F1
Hose (l1050)
Loading…
↗
32
63P4537900
Nipple, hose
Loading…
↗
33
9011906M18
Bolt, with washer(61n)
Loading…
↗
34
6BM45211008D
X(25.3")
Extension
Loading…
↗
35
63P4537800
X(25.3")
Nipple, hose
Loading…
↗
36
9321007003
X(25.3")
O-ring (11m)
Loading…
↗
38
97E9510645
X(25.3")
Bolt, hexagon w/w deep recess
Loading…
↗
