F15AEP (2004)
UPPER CASING

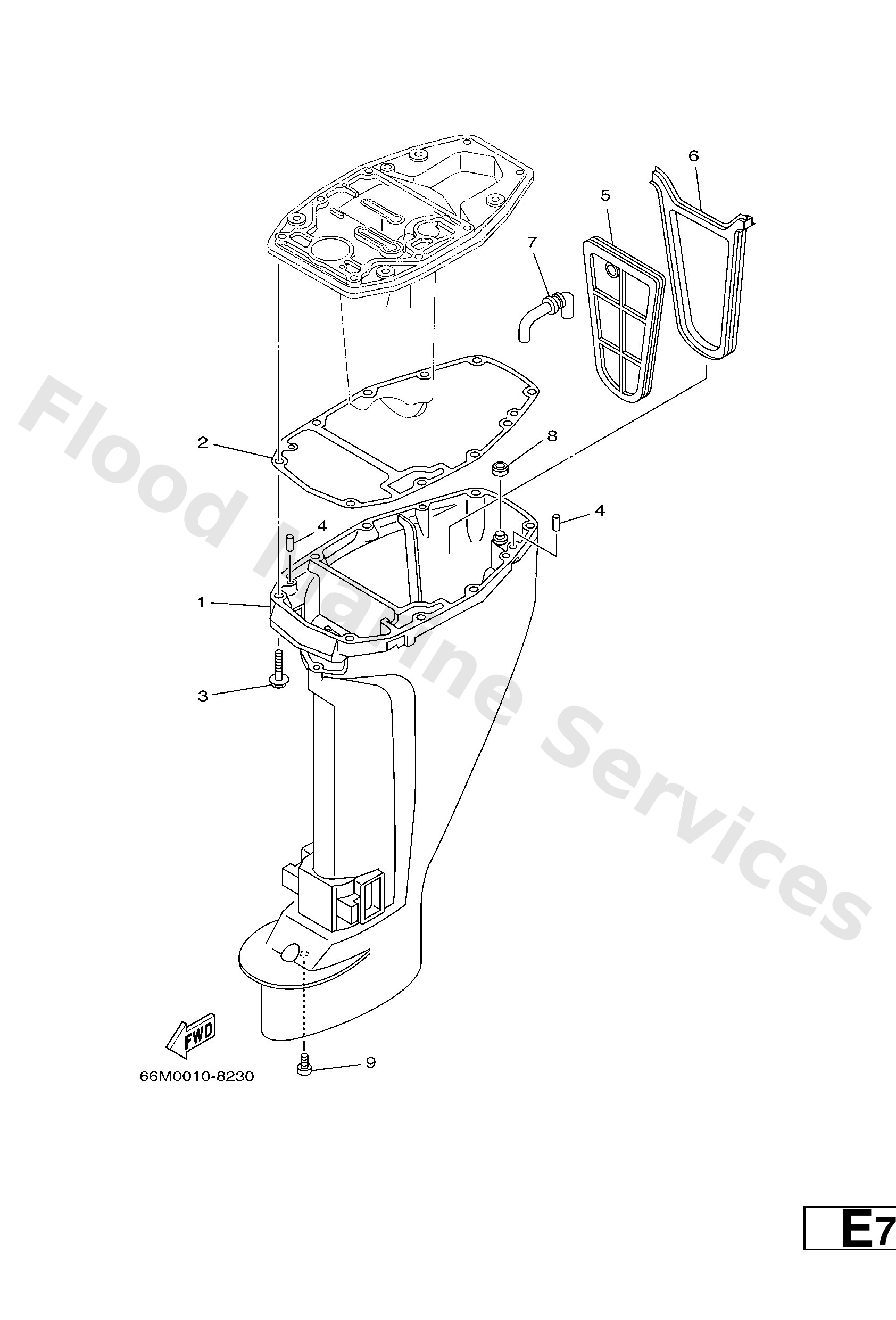

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
66M45111004D
S
Casing, upper
Loading…
↗
1
66M45111104D
L
Casing, upper
Loading…
↗
2
66M4511300
Gasket, upper casing
Loading…
↗
3
9757508545
Bolt, hexagon w/w deep recess
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
66M4512600
Plate, Seal Damper
Loading…
↗
6
66M4511500
Gasket, upper casing
Loading…
↗
7
66M4513600
Pipe
Loading…
↗
8
66M4512800
Seal 2
Loading…
↗
9
9015706M06
Screw, pan head(6m7)
Loading…
↗
