F15CE (2008)
UPPER CASING

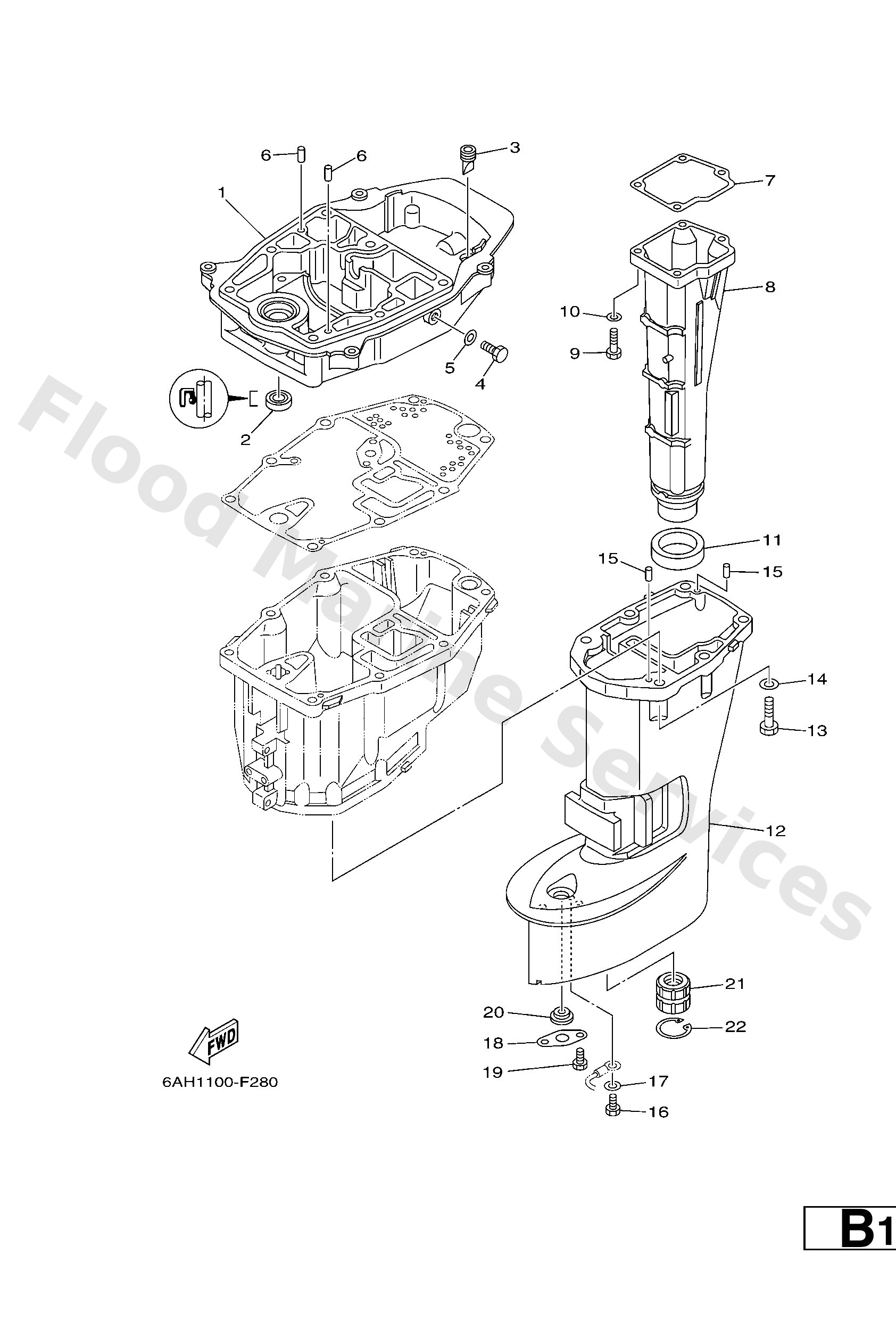

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6AH41137005B
Guide, exhaust
Loading…
↗
2
9310112M63
Oil seal
Loading…
↗
3
65W4271700
Rubber, seal 2
Loading…
↗
4
9709508014
Bolt, hexagon deep recess
Loading…
↗
5
9043008143
Gasket (256-11198-00)
Loading…
↗
6
9360619M23
Pin, dowel
Loading…
↗
7
6AH4113400
Gasket, exhaust manifold
Loading…
↗
8
6AH14711005B
S(17.1")
Muffler 1
Loading…
↗
8
6AH14711105B
L(22.1")
Muffler 1
Loading…
↗
9
9707506025
Bolt
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
6AH4113800
Seal, ext. 1
Loading…
↗
12
6AH45111004D
S(17.1")
Casing, upper
Loading…
↗
12
6AH45111104D
L(22.1")
Casing, upper
Loading…
↗
13
9707508030
Bolt, hexagon (fj1)
Loading…
↗
14
9299508600
Washer, plain (663)
Loading…
↗
15
9360412M07
Pin, dowel (688)
Loading…
↗
16
9709505010
Bolt (682)
Loading…
↗
17
9299505600
Washer, plain (646)
Loading…
↗
18
68T4532100
Plate
Loading…
↗
19
9709506008
Bolt (fj1)
Loading…
↗
20
9048014M54
Grommet
Loading…
↗
21
6824531800
L(22.1")
Bushing, drive shaft
Loading…
↗
22
9342030042
L(22.1")
Circlip (650)
Loading…
↗
