F2.5AMH (2013)
UPPER CASING

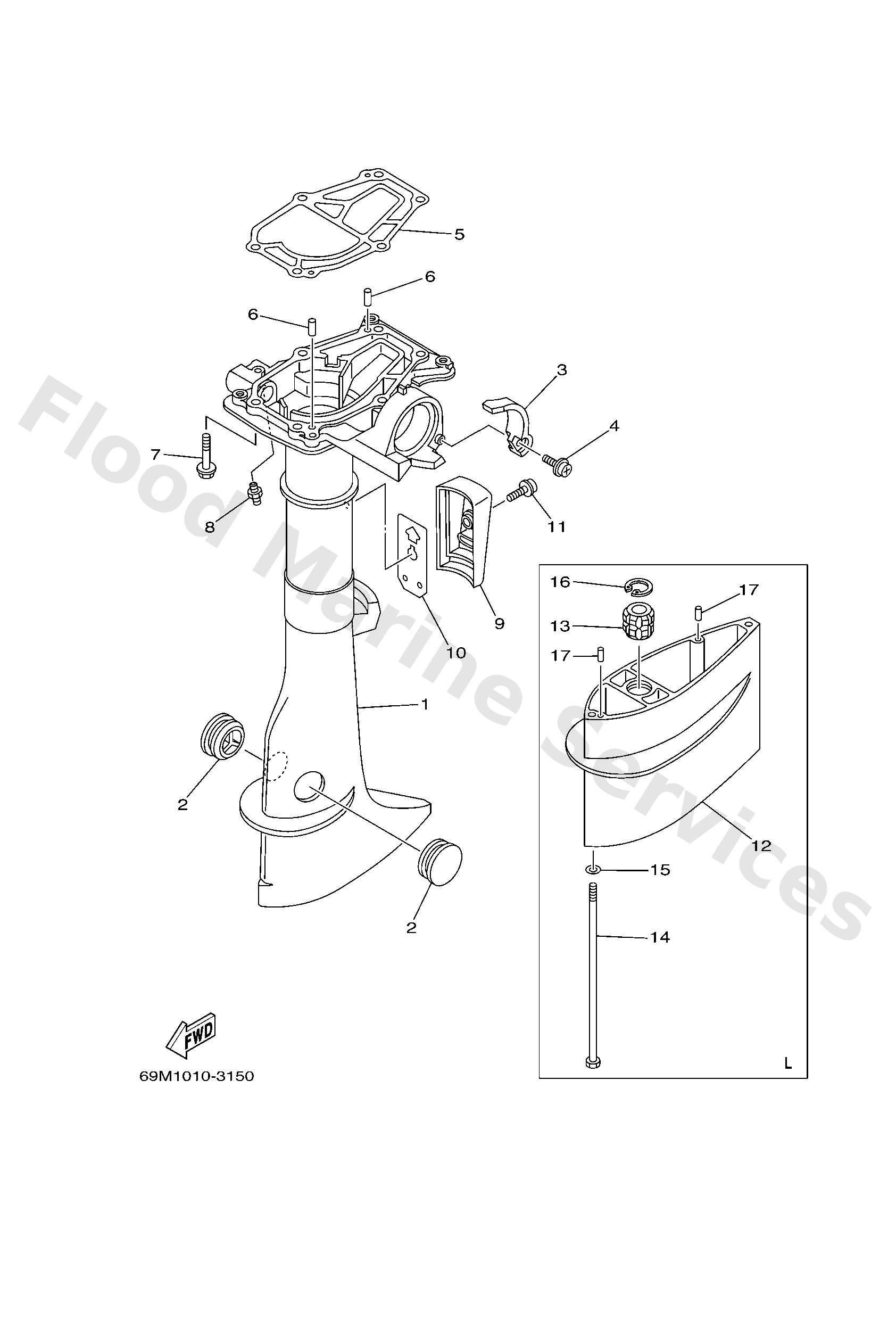

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69MG5111004D
Casing,upper
Loading…
↗
2
6474515101
Cover, upper casing
Loading…
↗
3
69MG515200
Cover,upper casing 2
Loading…
↗
4
9015905M12
Screw, with washer(6t4)
Loading…
↗
5
69M45113A0
Gasket, upper casing
Loading…
↗
17
9360412M07
L(22.0")
Pin, dowel (688)
Loading…
↗
7
9757506535
Bolt, hexagon w/w deep recess
Loading…
↗
8
9370006M03
Nipple, grease(6a1)
Loading…
↗
9
69MG515100
Cover,upper casing 1
Loading…
↗
10
69MG511500
Gasket,upper casing
Loading…
↗
11
9015906M11
Screw, with washer(6l2)
Loading…
↗
12
69MG5211004D
L(22.0")
Extention
Loading…
↗
13
6L54531800
L(22.0")
Bushing, drive shaft
Loading…
↗
14
9010106M18
L(22.0")
Bolt(6l5)
Loading…
↗
15
9299006600
L(22.0")
Washer, plain (646)
Loading…
↗
16
9342022M03
L(22.0")
Cir clip (6e0)
Loading…
↗
