F2.5BMH (2019)
UPPER CASING

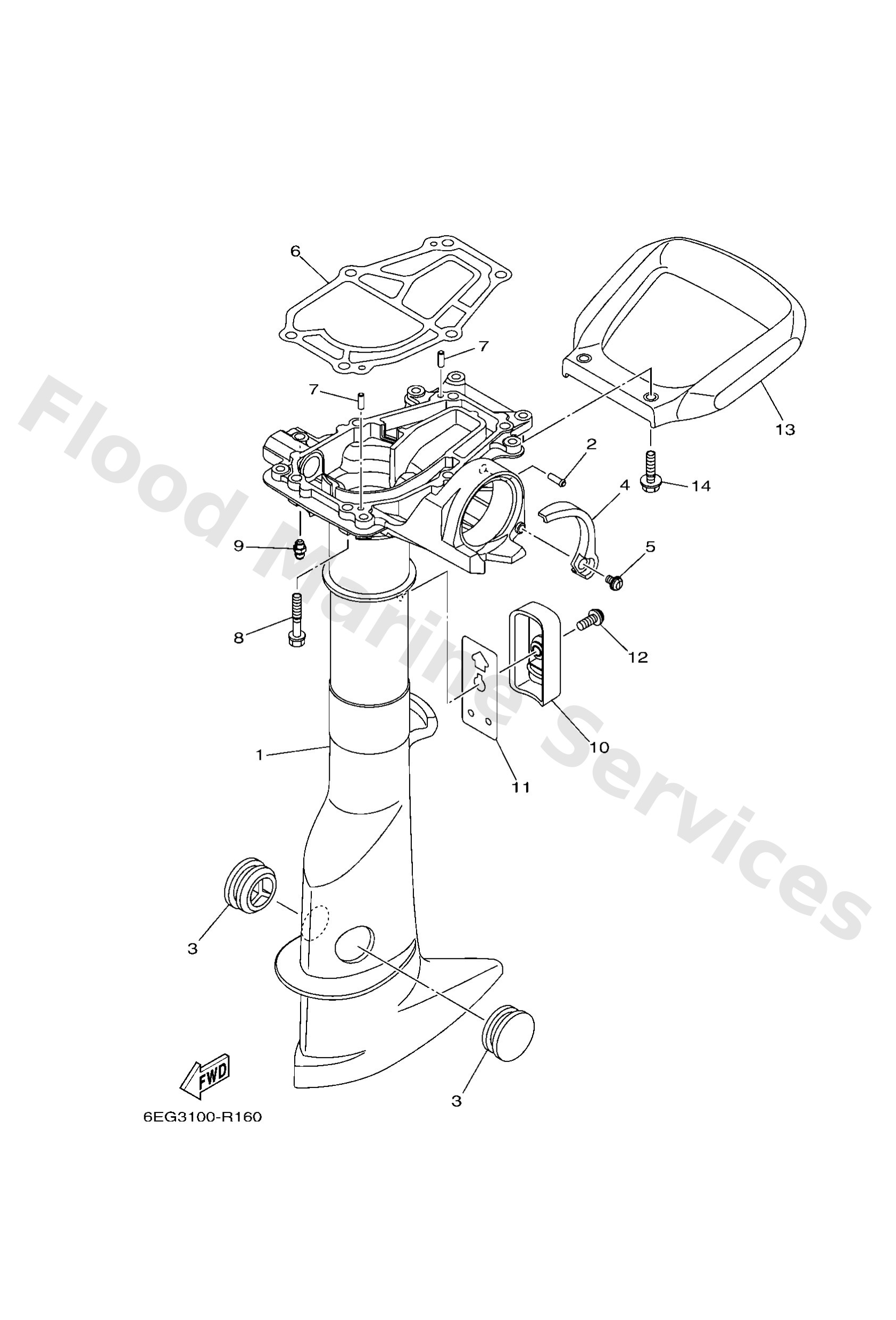

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6EGG5111008D
Casing, upper
Loading…
↗
2
6EEF437700
Pipe, joint 2
Loading…
↗
3
6474515101
Cover, upper casing
Loading…
↗
4
6EGG515200
Cover, upper casin
Loading…
↗
5
9015905M12
Screw, with washer(6t4)
Loading…
↗
6
6EGG511300
Gasket, upper casi
Loading…
↗
7
9360412M07
Pin, dowel (688)
Loading…
↗
8
97E7506535
Bolt, hexagon w/w deep recess
Loading…
↗
9
9370006M03
Nipple, grease(6a1)
Loading…
↗
10
6EGG515100
Cover, upper casin
Loading…
↗
11
6EGG511500
Gasket, upper casi
Loading…
↗
12
9015906M11
Screw, with washer(6l2)
Loading…
↗
13
6EGG273100
Carrying handle
Loading…
↗
14
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
