F225CET (2015)
UPPER CASING

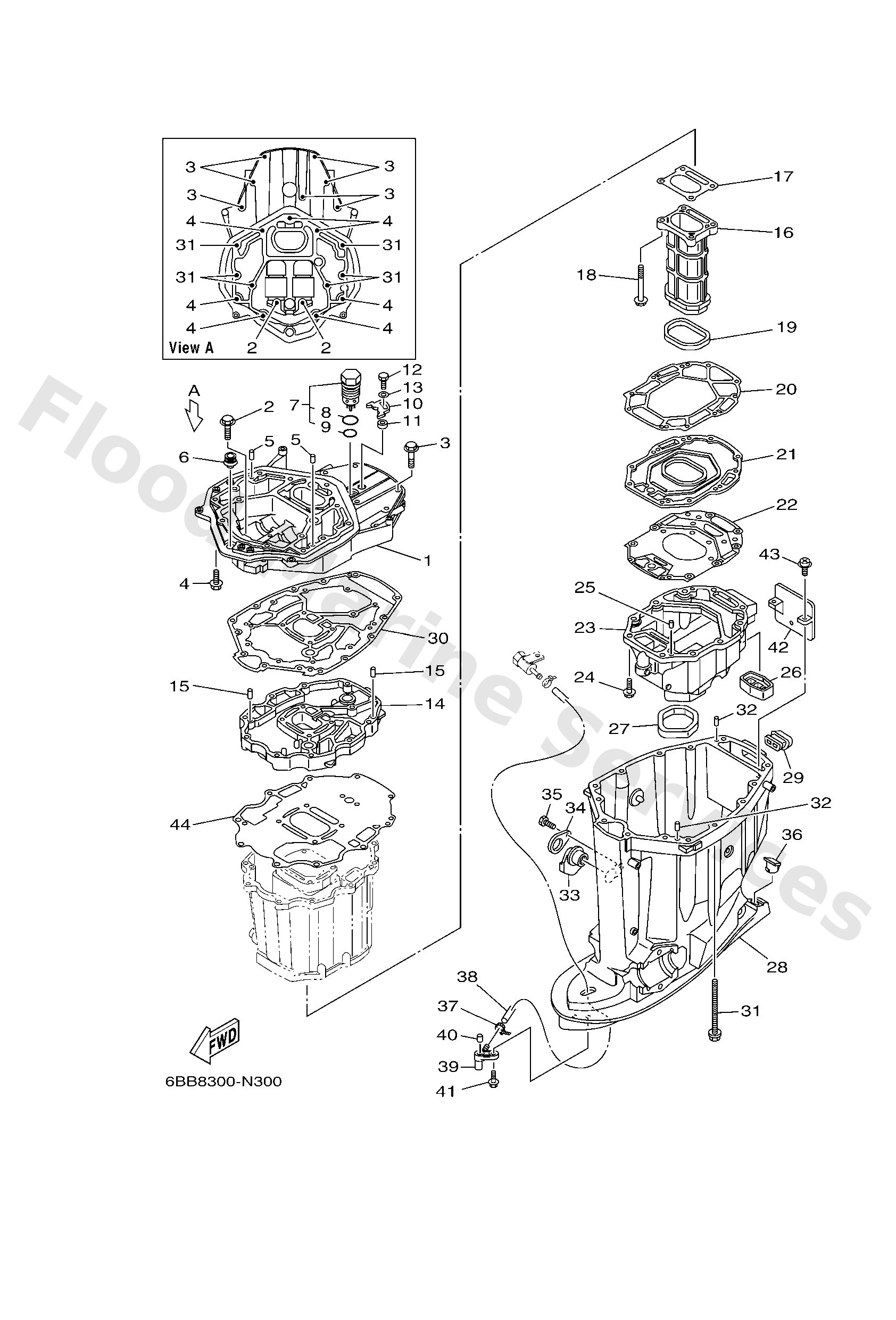

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69J4113710CA
Guide, exhaust
Loading…
↗
2
9011908102
Bolt, with washer
Loading…
↗
3
9757510545
Bolt, hexagon w/w deep recess
Loading…
↗
4
9757510535
Bolt, hexagon w/w deep recess
Loading…
↗
5
9360816M16
Pin, dowel(6t4)
Loading…
↗
6
6E54272400
Grommet
Loading…
↗
7
6AW1137110
Pressure control valve assembly
Loading…
↗
8
93210347A1
O-ring
Loading…
↗
9
9321028543
O-ring(72f)
Loading…
↗
10
69J1223300
Plate, guide stopper 1
Loading…
↗
11
9038706037
Collar 8121444900
Loading…
↗
12
9709506020
Bolt(7u8)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
69J4113111CA
Manifold, ext. 1
Loading…
↗
16
69J41132209S
Manifold, exhaust
Loading…
↗
17
6P24113400
Gasket, exhaust manifold
Loading…
↗
18
9757508590
Bolt, hexagon w/w deep recess
Loading…
↗
19
69J4113800
Seal, ext. 1
Loading…
↗
20
69J41135A0
Gasket, exhaust manifold
Loading…
↗
21
69J45181109S
Plate
Loading…
↗
22
6S14113600
Gasket, exhaust manifold 4
Loading…
↗
23
6BB14711009S
Muffler 1
Loading…
↗
24
9757508535
Bolt(70w)
Loading…
↗
25
9360619M23
Pin, dowel
Loading…
↗
26
69J4512700
Seal
Loading…
↗
27
69J4512300
Gasket, muffler
Loading…
↗
28
6BB45111008D
Casing, upper
Loading…
↗
29
69J4276900
Seal, rubber
Loading…
↗
30
69J4511320
Gasket, upper casing
Loading…
↗
31
9011910007
Bolt, with washer
Loading…
↗
33
6BB1531600
Damper 1
Loading…
↗
34
6BB4515201
Cover, upper casing 2
Loading…
↗
35
9709506012
Bolt(gh1)
Loading…
↗
36
61A4515500
Cap
Loading…
↗
37
9046511M10
FOR LAN SPEED
Clamp
Loading…
↗
38
9044507012
FOR LAN SPEED
Hose (l1457)
Loading…
↗
39
66K4537800
Nipple, hose
Loading…
↗
40
9360612019
Pin, dowel (614)
Loading…
↗
41
9011906M17
Bolt, with washer
Loading…
↗
42
69J1462401
Cover, exhaust
Loading…
↗
43
9798006216
Screw, with washer(6h2)
Loading…
↗
44
69J1531201
Gasket, oil pan
Loading…
↗
