F25DMH (2009)
UPPER CASING

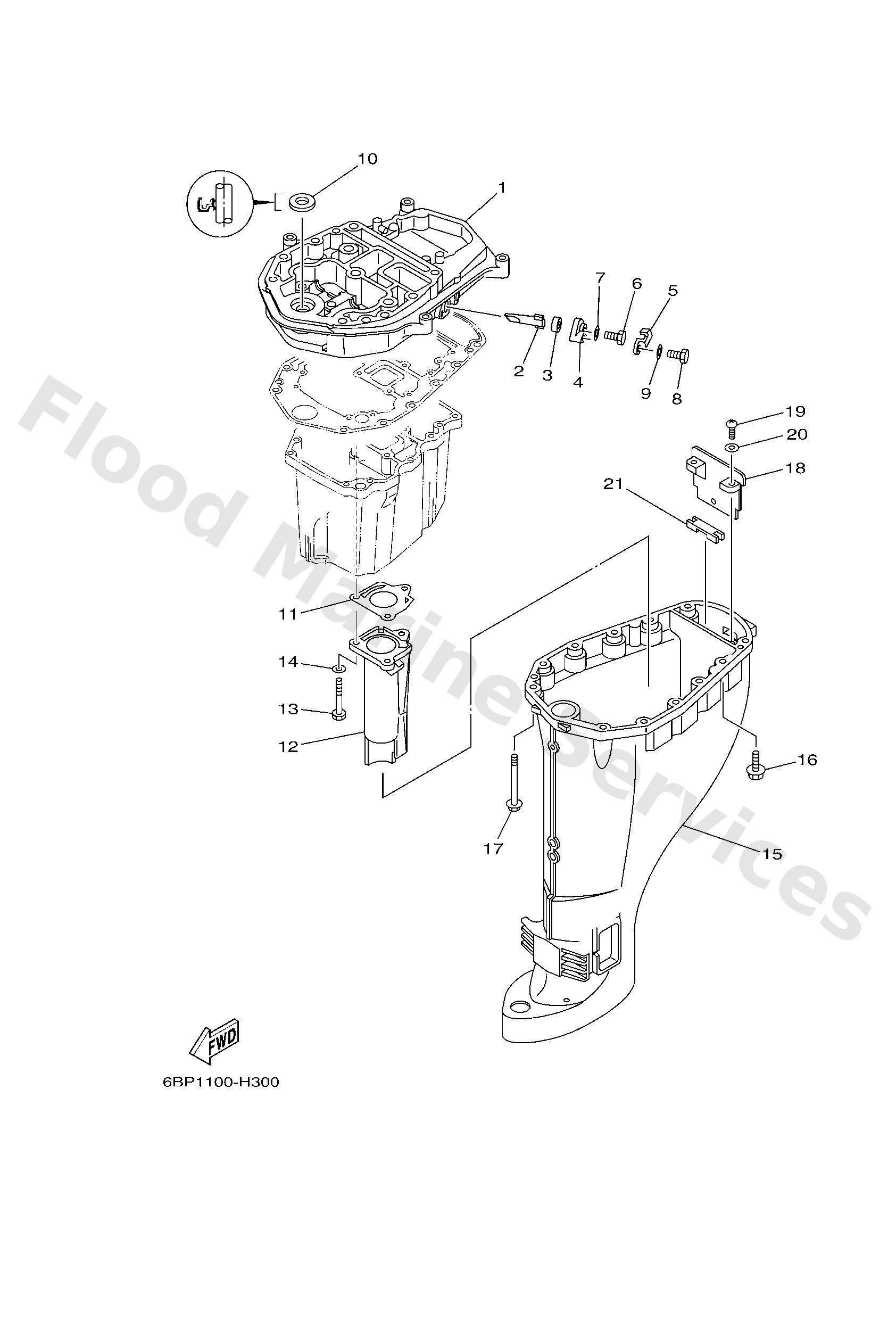

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
67C41137135B
Guide, exhaust (67c-13)
Loading…
↗
2
62Y1132500
Anode
Loading…
↗
3
66M1132800
Grommet, anode
Loading…
↗
4
66M113270094
Cover, anode
Loading…
↗
5
66M1253500
Plate
Loading…
↗
6
9709505012
Bolt, hexagon
Loading…
↗
7
9299505600
Washer, plain (646)
Loading…
↗
8
9701306020
Bolt(62y)
Loading…
↗
9
9290306600
Washer, plain (646)
Loading…
↗
10
9311016004
Oil seal
Loading…
↗
11
67C4113300
Gasket, exhaust manifold 1
Loading…
↗
12
68U41131005B
Manifold, ext. 1
Loading…
↗
13
9707506050
Bolt(jf7)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
6D545111104D
Casing, upper
Loading…
↗
16
9011908102
Bolt, with washer
Loading…
↗
17
9011908132
Bolt, with washer
Loading…
↗
18
65W4515100
Cover, upper casing
Loading…
↗
19
9788005016
Screw, pan head(6b0)
Loading…
↗
20
9299005600
Washer, plain (646)
Loading…
↗
21
65W4512800
Seal 2
Loading…
↗
