F25DMH (2016)
UPPER CASING

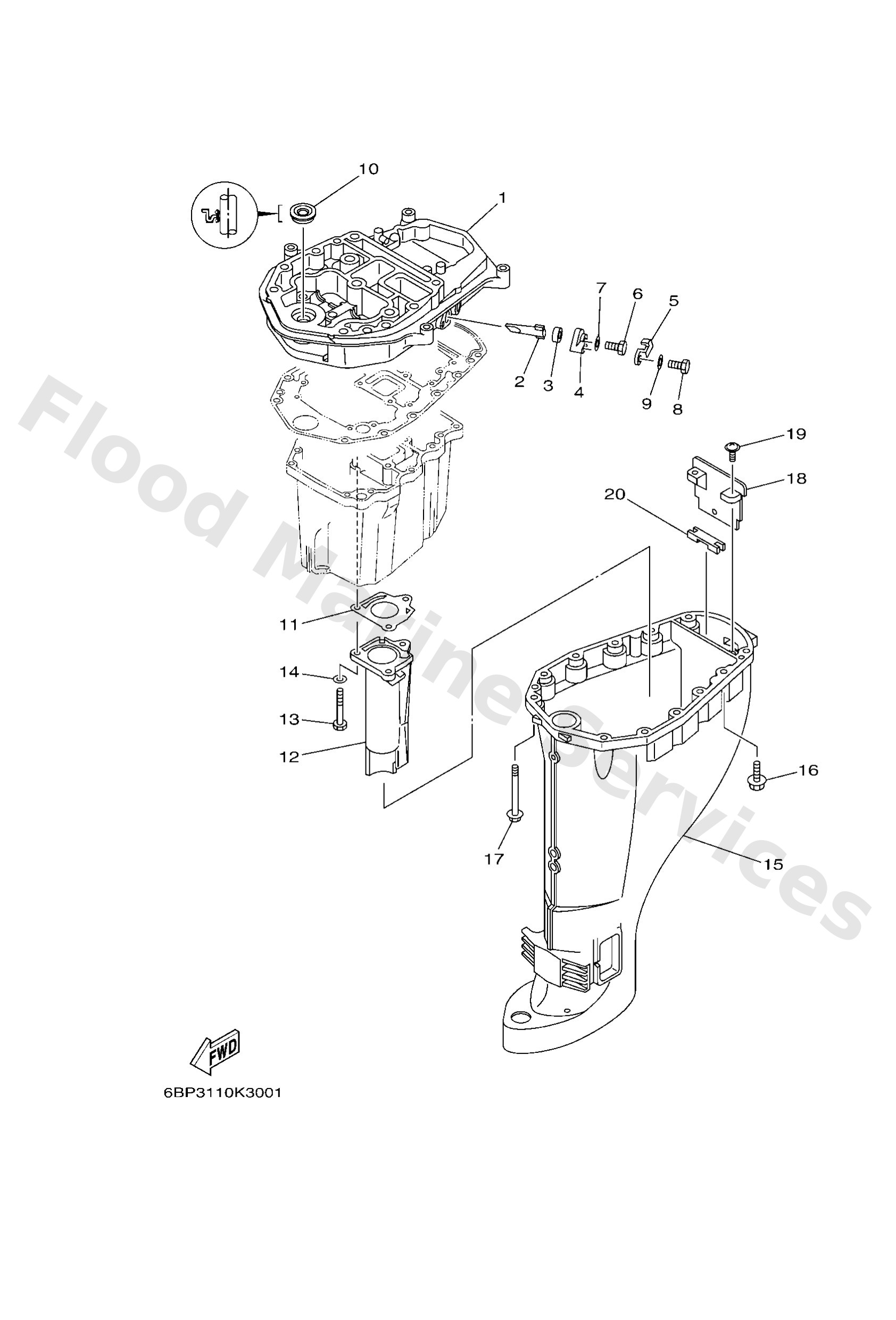

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
67C4113720CA
Guide, exhaust
Loading…
↗
2
62Y1132500
Anode
Loading…
↗
3
66M1132800
Grommet, anode
Loading…
↗
4
66M113270094
Cover, anode
Loading…
↗
5
66M1253500
Plate
Loading…
↗
6
9709505012
Bolt, hexagon
Loading…
↗
7
9299505600
Washer, plain (646)
Loading…
↗
8
9701306020
Bolt(62y)
Loading…
↗
9
9290306600
Washer, plain (646)
Loading…
↗
10
9310316011
Oil seal
Loading…
↗
11
67C4113300
Gasket, exhaust manifold 1
Loading…
↗
12
68U4113100CA
Manifold, ext. 1
Loading…
↗
13
9707506050
Bolt(jf7)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
6BP45111008D
S(16.7")
Casing, upper
Loading…
↗
15
6D545111108D
L(21.7")
Casing, upper
Loading…
↗
16
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
17
9011908132
Bolt, with washer
Loading…
↗
18
65W4515100
Cover, upper casing
Loading…
↗
19
9798005216
Screw, pan w/ plain
Loading…
↗
20
65W4512800
Seal 2
