F25GE (2021)
UPPER CASING

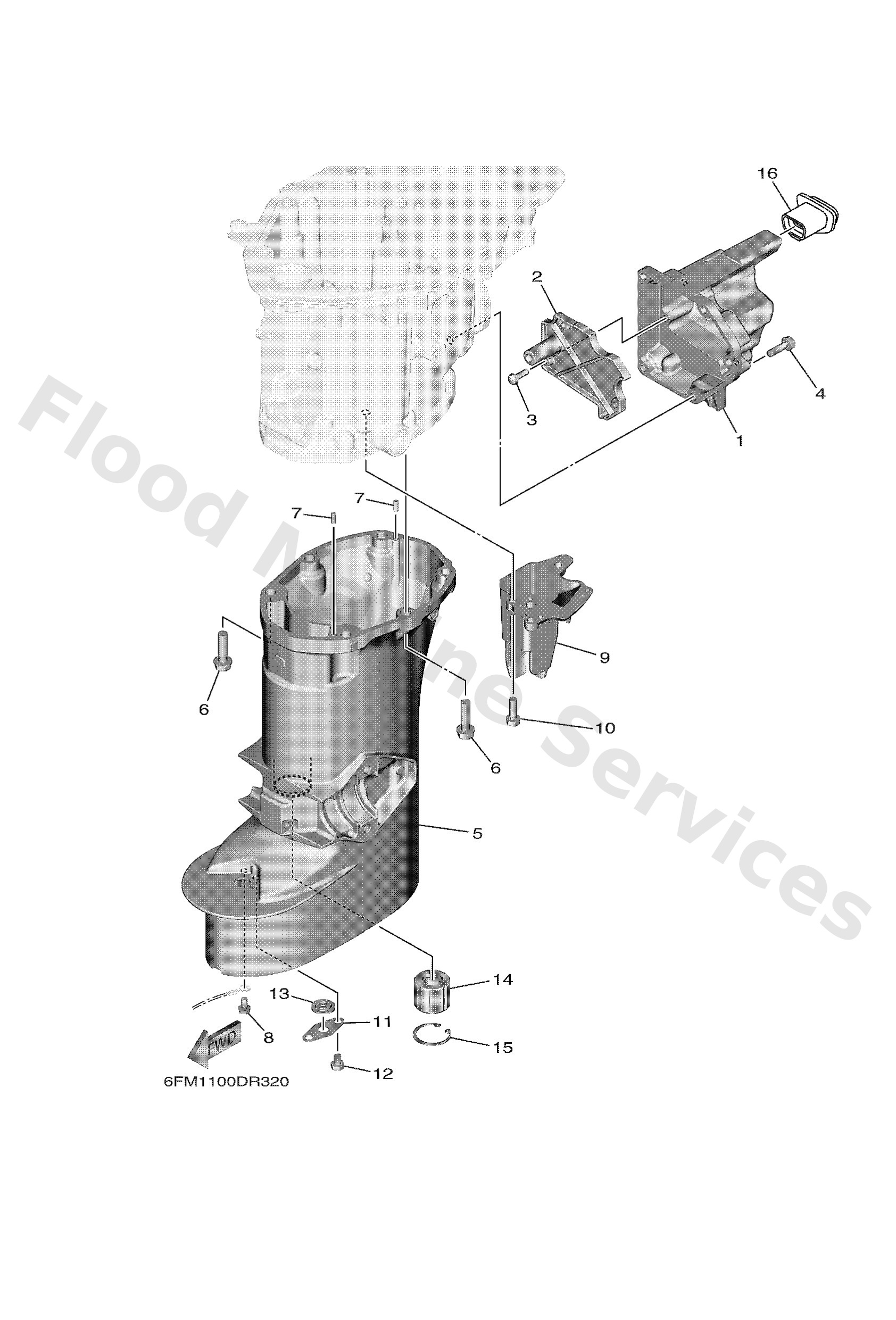

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6FM14731008D
Chamber 1
Loading…
↗
2
6FM4512600
Plate, seal damper
Loading…
↗
3
9798005216
Screw, pan w/ plain
Loading…
↗
4
9010506M07
Bolt (689)
Loading…
↗
5
6FM45111108D
L(21.7")
Casing, upper
Loading…
↗
5
6FM45111008D
S(16.7")
Casing, upper
Loading…
↗
6
97E7508530
Bolt, hexagon w/w deep recess
Loading…
↗
7
9360410M03
Pin, dowel (688)
Loading…
↗
8
9759505510
Bolt hex. head
Loading…
↗
9
6FM1471100CA
Muffler 1
Loading…
↗
11
68T4532100
L(21.7")
Plate
Loading…
↗
12
97D9506008
L(21.7")
Bolt, hexagon deep recess
Loading…
↗
13
9048014M54
L(21.7")
Grommet
Loading…
↗
14
6L24531800
L(21.7")
Bushing, drive shaft
Loading…
↗
15
9342030042
L(21.7")
Circlip (650)
Loading…
↗
16
6FM4276901
Seal, rubber
Loading…
↗
