F40FED (2018)
UPPER CASING

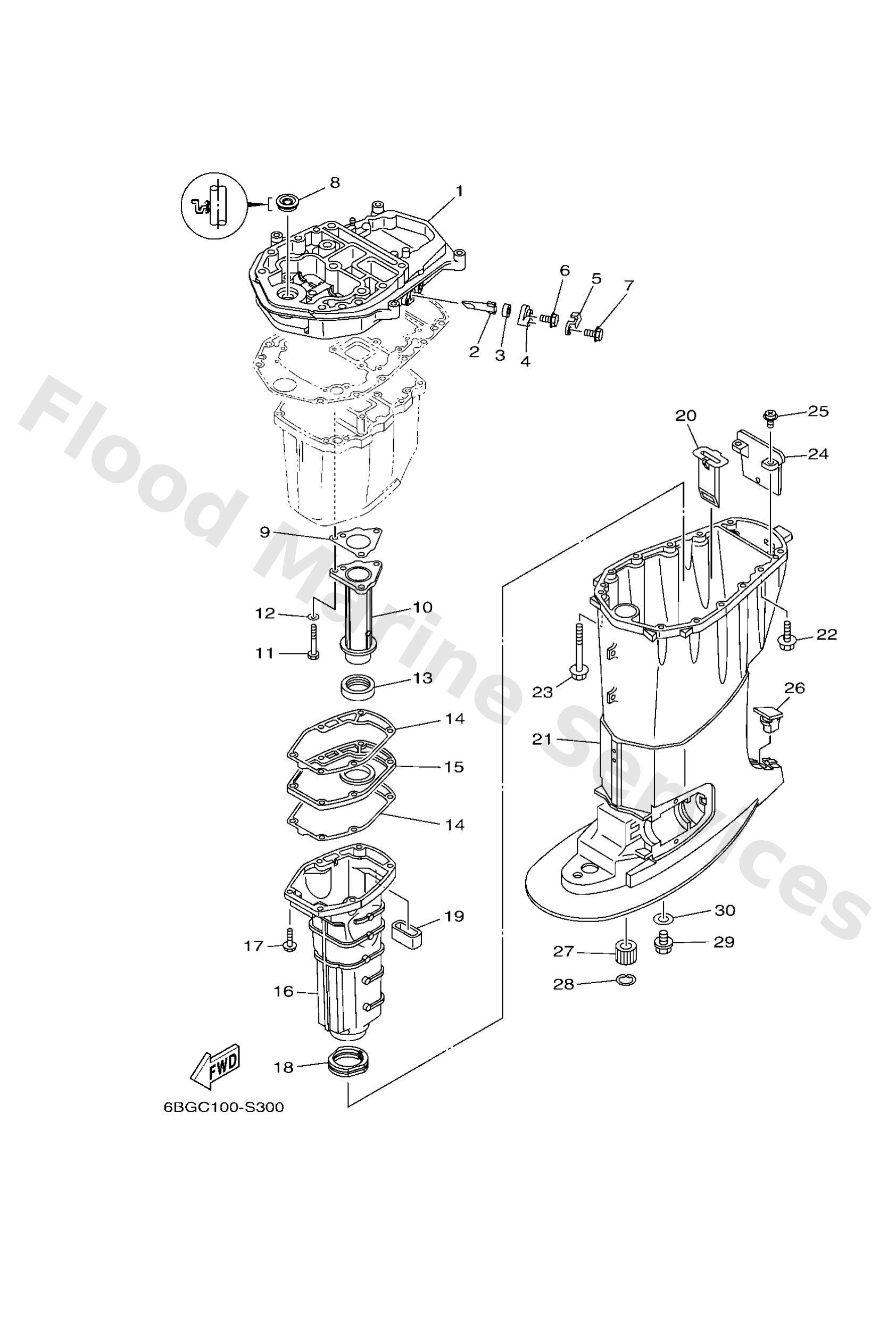

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6BG4113710CA
Guide, exhaust
Loading…
↗
2
62Y1132500
Anode
Loading…
↗
3
66M1132800
Grommet, anode
Loading…
↗
4
66M113270094
Cover, anode
Loading…
↗
5
66M1253500
Plate
Loading…
↗
6
9759505512
Bolt, hexagon
Loading…
↗
7
9751306520
Bolt, with washer(61b)
Loading…
↗
8
9310316011
Oil seal
Loading…
↗
9
64J4113310
Gasket, exhaust manifold 1
Loading…
↗
10
6BG41131A0CA
Manifold, ext. 1
Loading…
↗
11
9707506050
Bolt(jf7)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
64J4613210
Gasket 1
Loading…
↗
14
6BG4113400
Gasket, exhaust manifold
Loading…
↗
15
6BG4518100CA
Plate
Loading…
↗
16
69W1471110CA
L(21.1")
Muffler 1
Loading…
↗
16
6BG1471100CA
S(16.3")
Muffler 1
Loading…
↗
17
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
18
67C4512300
Gasket, muffler
Loading…
↗
19
62Y4512700
Seal
Loading…
↗
20
64J7712300
Guide 1
Loading…
↗
21
6BG45111008D
S(16.3")
Casing, upper
Loading…
↗
21
6BG45111208D
L(21.1")
Casing, upper
Loading…
↗
22
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
23
9011908132
Bolt, with washer
Loading…
↗
24
67C4515100
Cover, upper casing
Loading…
↗
25
9798005216
Screw, pan w/ plain
Loading…
↗
26
63D4515500
S(16.3")
Cap
Loading…
↗
26
6C54515500
L(21.1")
Cap
Loading…
↗
27
6A04531800
L(21.1")
Bushing drive shaft assembly 3
Loading…
↗
28
9342036M01
L(21.1")
Circlip (6a0)
Loading…
↗
29
9034014M06
L(21.1")
Plug, straight screw(62y)
Loading…
↗
30
9043014M09
L(21.1")
Gasket
Loading…
↗
