Yamaha Outboard Parts - UPPER CASING - F4AMH (2003) | Flood Marine

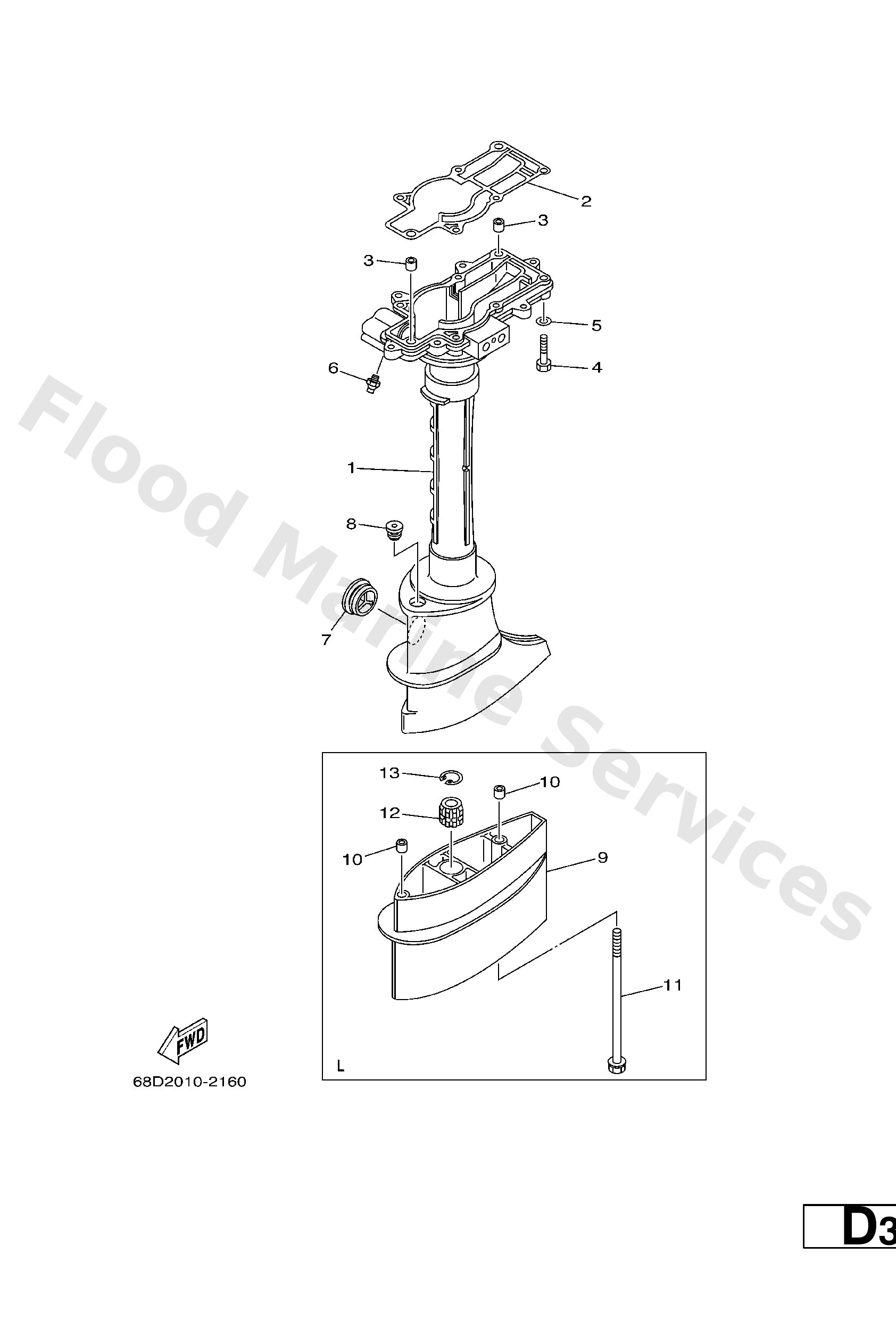

Diagram: UPPER CASING

Diagram

Parts List

Reference
Description
Price


2
68D−G5113−A0
Gasket, upper casing
Loading…

↗
10
90387−06806 L
Collar(6e0)
Loading…

↗
4
97095−06035
Bolt(j52)
Loading…

↗
5
92995−06600
Washer, plain (646)
Loading…

↗
6
93700−06M03
Nipple, grease(6a1)
Loading…

↗
7
647−45151−01
Cover, upper casing
Loading…

↗
8
90480−10M13
Grommet (6e0)
Loading…

↗
11
90119−06M77 L
Bolt, with washer
Loading…

↗
12
6E0−45318−01 L
Bushing, drive shaft 3
Loading…

↗
13
93420−22M03 L
Cir clip (6e0)
Loading…

↗
