F4AMH (2004)
UPPER CASING

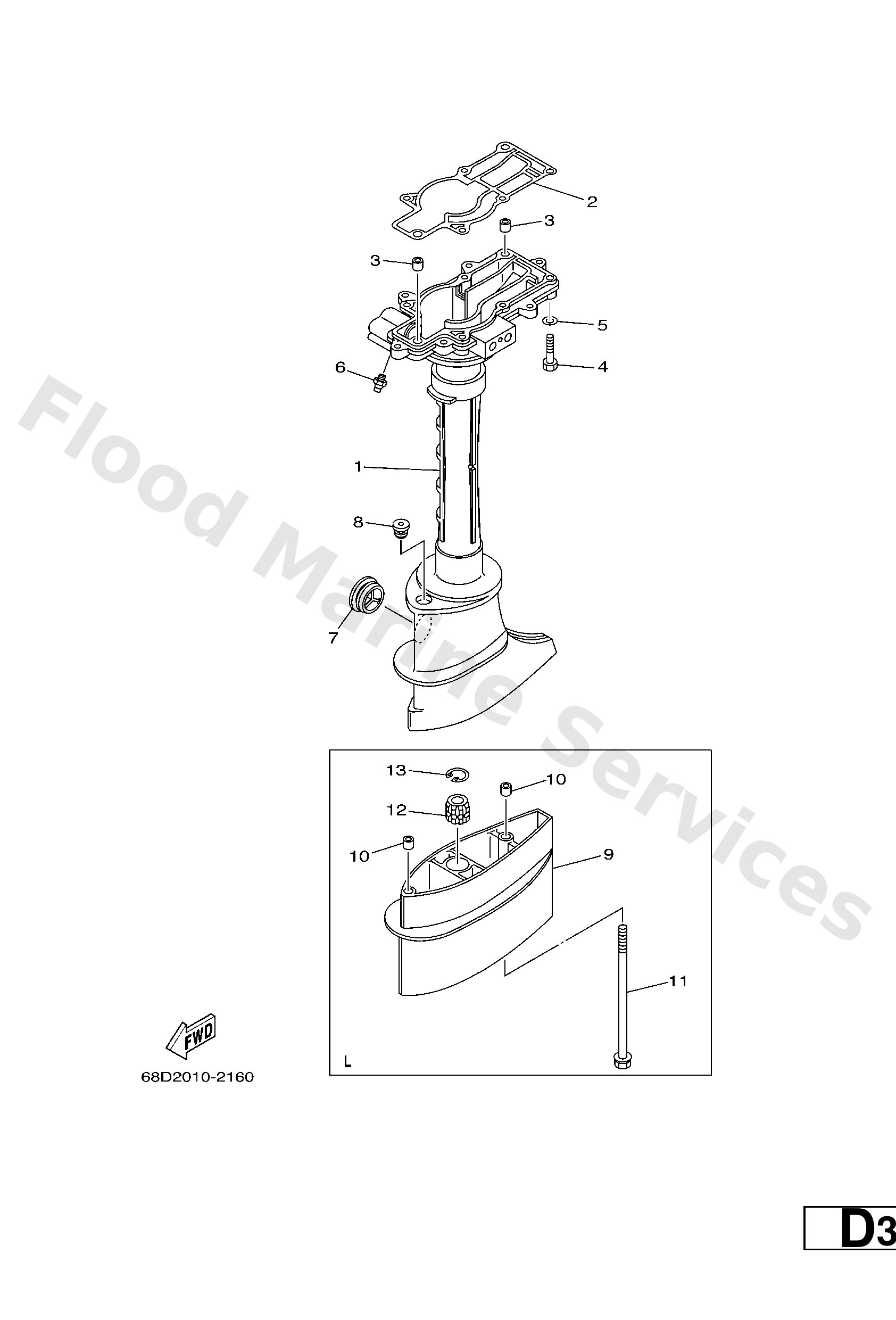

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
68DG5111014D
Casing, Upper
Loading…
↗
2
68DG5113A0
Gasket, upper casing
Loading…
↗
10
9038706806
L
Collar(6e0)
Loading…
↗
4
9709506035
Bolt(j52)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9370006M03
Nipple, grease(6a1)
Loading…
↗
7
6474515101
Cover, upper casing
Loading…
↗
8
9048010M13
Grommet (6e0)
Loading…
↗
9
68DG5211004D
L
Extension
Loading…
↗
11
9011906M77
L
Bolt, with washer
Loading…
↗
12
6E04531801
L
Bushing, drive shaft 3
Loading…
↗
13
9342022M03
L
Cir clip (6e0)
Loading…
↗
