F50AEHT (2002)
UPPER CASING

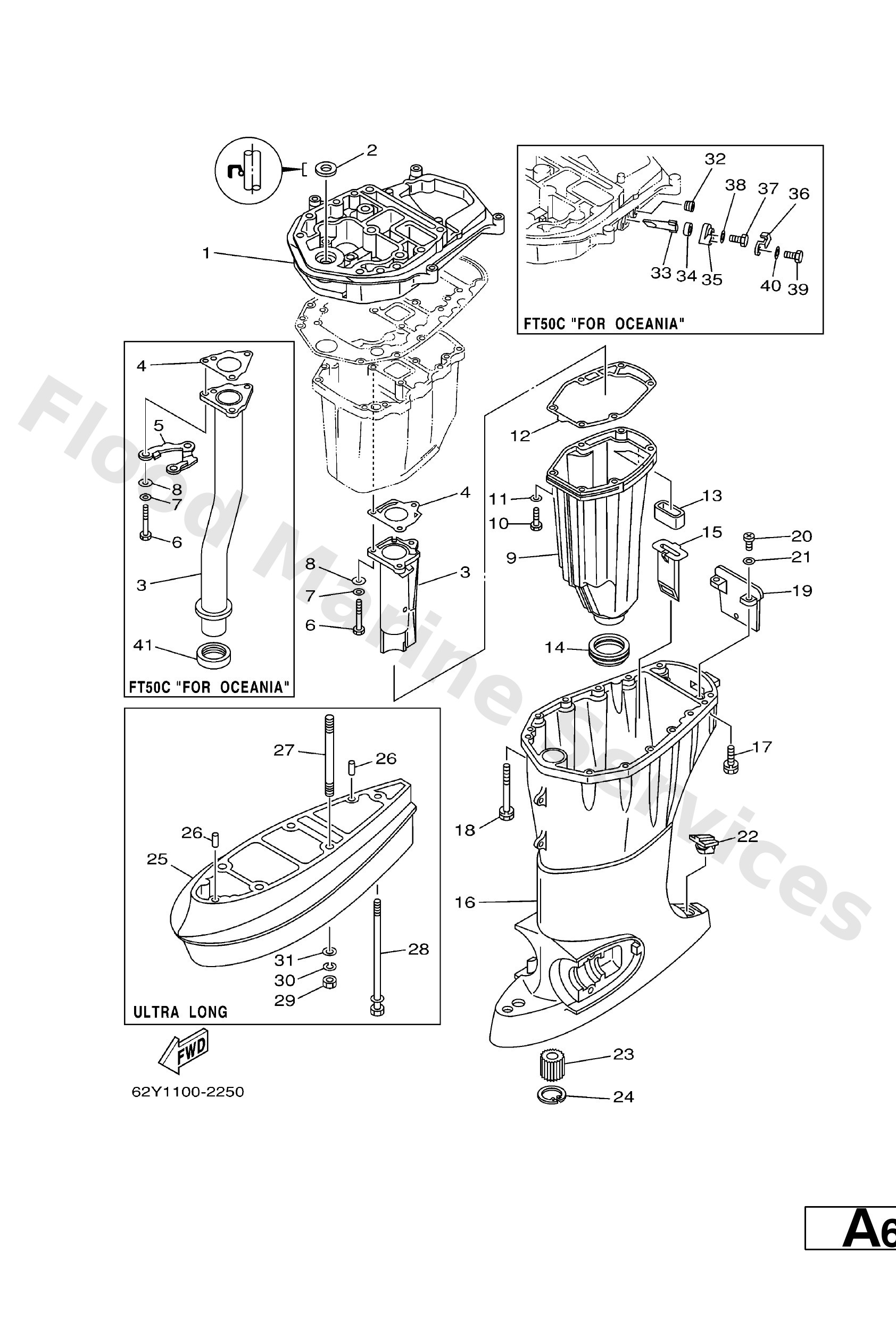

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
64J411370094
FT50C
Guide, exhaust
Loading…
↗
1
62Y411371094
F50,T50,F50A
Guide, Exhaust
Loading…
↗
2
9310318011
Oil seal
Loading…
↗
3
67C41131005B
F50,T50,F50A
Manifold, ext. 1
Loading…
↗
3
64J411311094
FT50C
Manifold, ext. 1
Loading…
↗
4
67C4113300
F50,T50,F50A
Gasket, exhaust manifold 1
Loading…
↗
4
64J4113310
FT50C
Gasket, exhaust manifold 1
Loading…
↗
5
64J4111600
FT50C
Protector
Loading…
↗
6
9707506050
Bolt(jf7)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
9020106015
Washer, plate
Loading…
↗
9
64J14711005B
FT50C
Muffler 1
Loading…
↗
9
62Y14711005B
F50,T50,F50A
Muffler 1
Loading…
↗
10
9707506025
Bolt
Loading…
↗
12
62Y4113401
Gasket, exhaust manifold
Loading…
↗
13
62Y4512700
Seal
Loading…
↗
14
6634512300
Gasket, muffler
Loading…
↗
15
64J7712300
FT50C
Guide 1
Loading…
↗
16
62Y45111214D
Casing, upper
Loading…
↗
17
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
18
9011908M82
Bolt, with washer(697)
Loading…
↗
19
62Y4515100
Cover, upper casing
Loading…
↗
20
9788005016
Screw, pan head(6b0)
Loading…
↗
21
9299005600
Washer, plain (646)
Loading…
↗
22
6H34515500
Cap
Loading…
↗
23
62Y4531800
Bushing, Drive Shaft
Loading…
↗
24
9342036M01
Circlip (6a0)
Loading…
↗
26
9360612019
FT50C–X
Pin, dowel (614)
Loading…
↗
27
9011610M53
FT50C–X
Bolt, stud
Loading…
↗
28
9011908M00
FT50C–X
Bolt, with washer(62x)
Loading…
↗
29
9538010600
FT50C–X
Nut(624)
Loading…
↗
30
9299010100
FT50C–X
Ybs67-10 washer, spring
Loading…
↗
31
9299010600
FT50C–X
Washer, plate
Loading…
↗
32
68T1111200
FT50C
-
Loading…
↗
33
62Y1132500
FT50C
Anode
Loading…
↗
34
66M1132800
FT50C
Grommet, anode
Loading…
↗
35
66M113270094
FT50C
Cover, anode
Loading…
↗
36
66M1253500
FT50C
Plate
Loading…
↗
37
9709505012
FT50C
Bolt, hexagon
Loading…
↗
38
9299505600
FT50C
Washer, plain (646)
Loading…
↗
39
9701306020
FT50C
Bolt(62y)
Loading…
↗
40
9290306600
FT50C
Washer, plain (646)
Loading…
↗
41
64J4613210
FT50C
Gasket 1
Loading…
↗
