F50DET (2010)
UPPER CASING

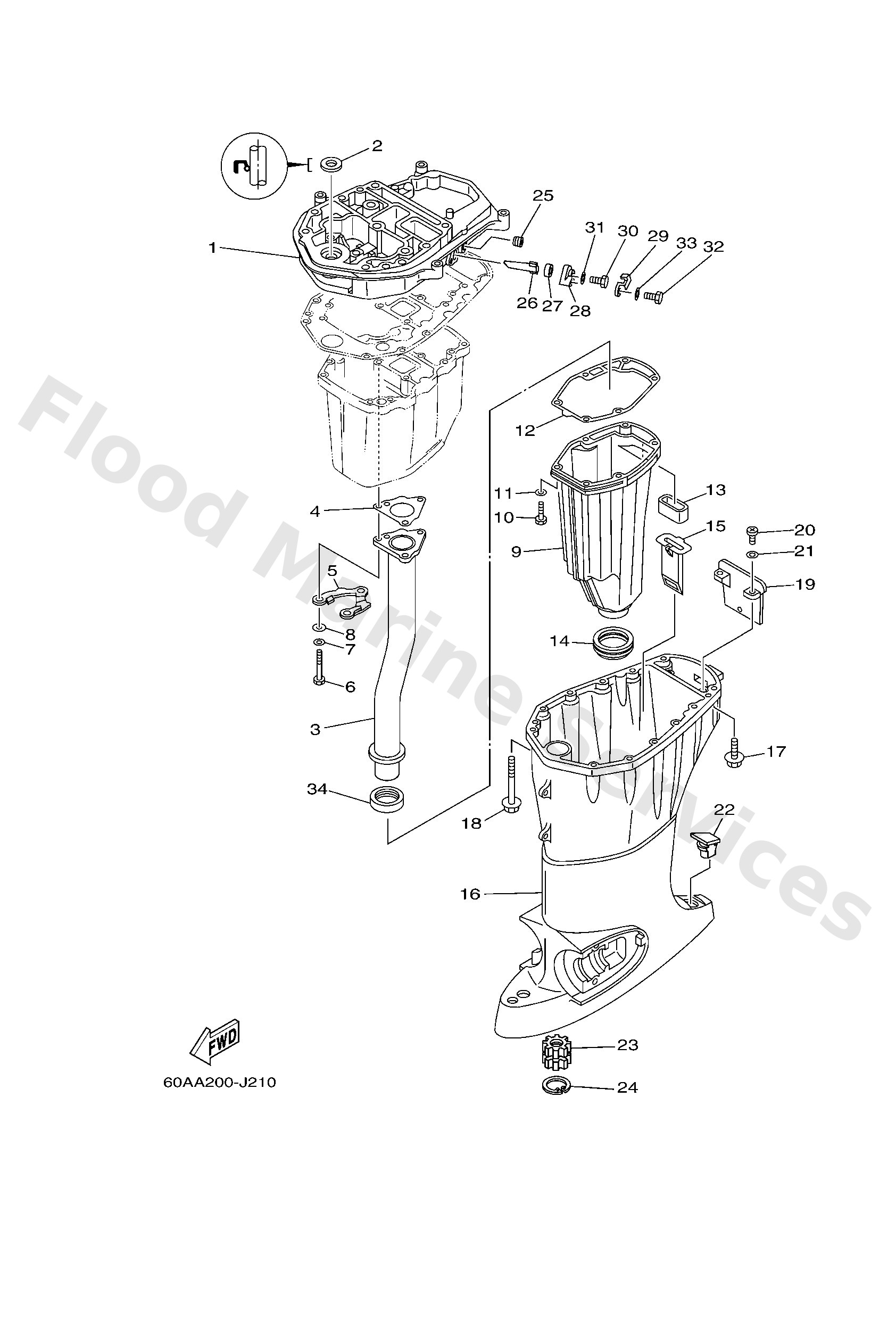

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
64J4113703CA
Guide, exhaust
Loading…
↗
2
9310318011
Oil seal
Loading…
↗
3
64J4113110
Manifold, ext. 1
Loading…
↗
4
64J4113310
Gasket, exhaust manifold 1
Loading…
↗
5
64J4111600
Protector
Loading…
↗
6
9707506050
Bolt(jf7)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
9020106015
Washer, plate
Loading…
↗
9
64J1471100CA
Muffler 1
Loading…
↗
10
9707506025
Bolt
Loading…
↗
12
6BG4113400
Gasket, exhaust manifold
Loading…
↗
13
62Y4512700
Seal
Loading…
↗
14
6634512300
Gasket, muffler
Loading…
↗
15
64J7712300
Guide 1
Loading…
↗
16
62Y45111218D
Casing, upper
Loading…
↗
17
9011908102
Bolt, with washer
Loading…
↗
18
9011908132
Bolt, with washer
Loading…
↗
19
62Y4515100
Cover, upper casing
Loading…
↗
20
9788005016
Screw, pan head(6b0)
Loading…
↗
21
9299005600
Washer, plain (646)
Loading…
↗
22
6C54515500
Cap
Loading…
↗
23
69W4531800
Bushing, drive shaft
Loading…
↗
24
9342036M01
Circlip (6a0)
Loading…
↗
25
68T1111200
-
Loading…
↗
26
62Y1132500
Anode
Loading…
↗
27
66M1132800
Grommet, anode
Loading…
↗
28
66M113270094
Cover, anode
Loading…
↗
29
66M1253500
Plate
Loading…
↗
30
9709505012
Bolt, hexagon
Loading…
↗
31
9299505600
Washer, plain (646)
Loading…
↗
32
9701306020
Bolt(62y)
Loading…
↗
33
9290306600
Washer, plain (646)
Loading…
↗
34
64J4613210
Gasket 1
Loading…
↗
