F5AMH (2022)
UPPER CASING

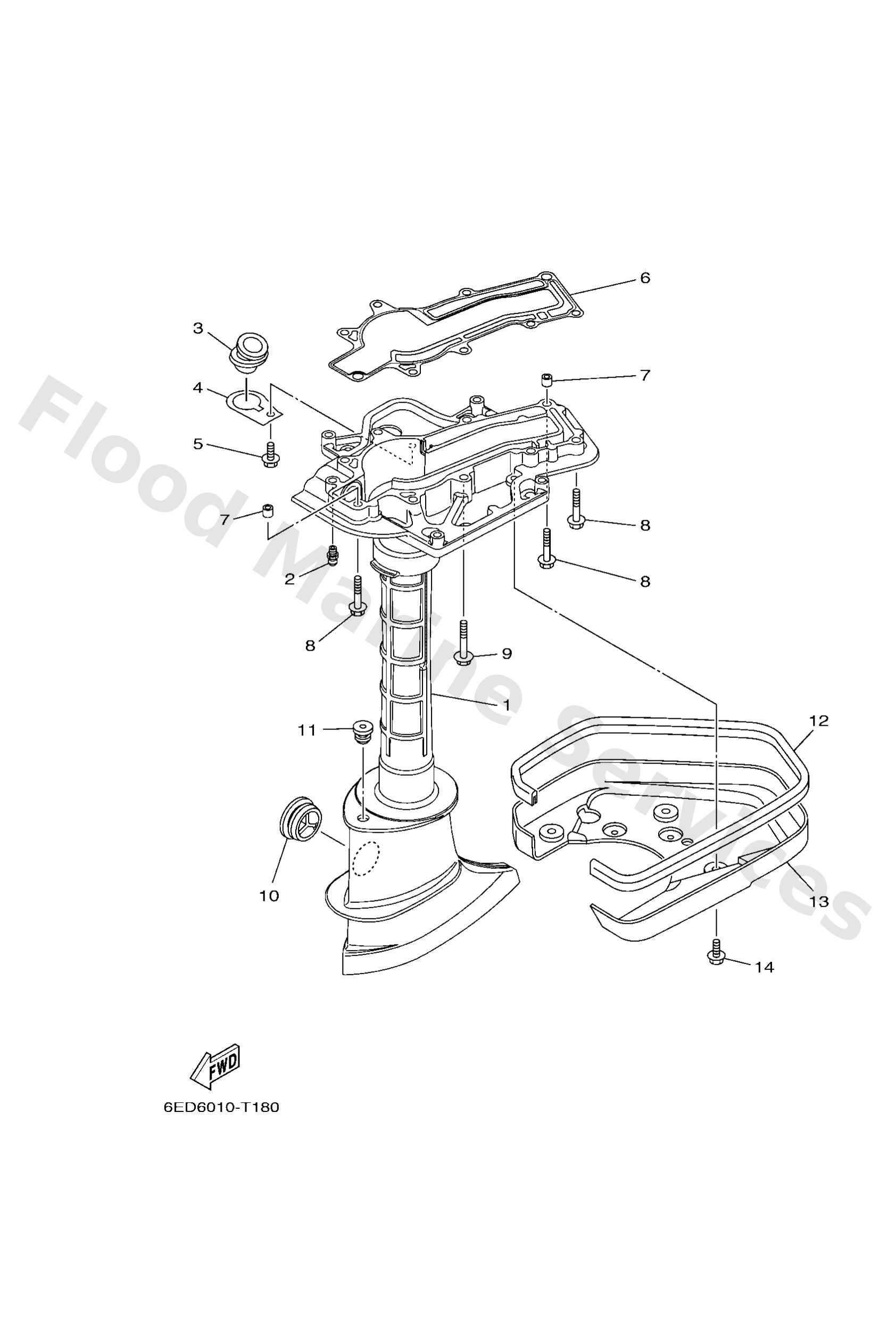

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6EEG5111018D
Casing, upper
Loading…
↗
2
9370006M03
Nipple, grease(6a1)
Loading…
↗
3
6EEE531601
Damper 1
Loading…
↗
4
6EEG518100
Plate
Loading…
↗
5
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
6
6EE4511300
Gasket, upper casing
Loading…
↗
7
9038706M14
Collar(6e0)
Loading…
↗
8
97E7506540
Bolt, hexagon w/w deep recess
Loading…
↗
9
97E7506550
Bolt, hexagon w/w deep recess
Loading…
↗
10
6474515102
Cover, upper casing
Loading…
↗
11
9048010M13
Grommet (6e0)
Loading…
↗
12
6EEG271600
Rubber, seal 1
Loading…
↗
13
6EEG272300
Cover, bottom
Loading…
↗
