F60CET (2010)
UPPER CASING

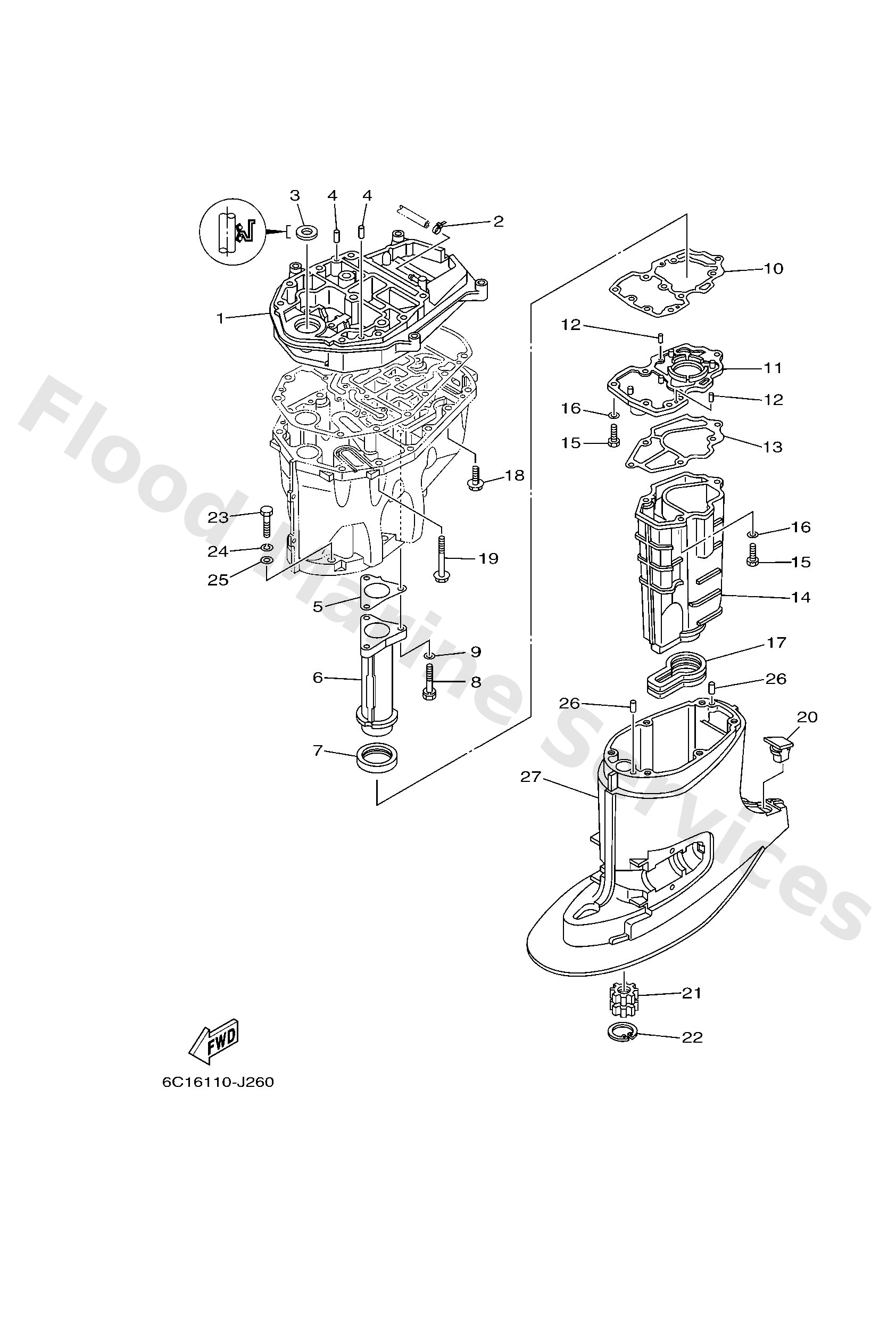

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6C54113700CA
Guide, exhaust
Loading…
↗
2
9046511M10
Clamp
Loading…
↗
3
9310318011
Oil seal
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
6C54113300
Gasket, exhaust manifold 1
Loading…
↗
6
6C54113100CA
Manifold, ext. 1
Loading…
↗
7
6C54613200
Gasket 1
Loading…
↗
8
9011906120
Bolt, with washer
Loading…
↗
9
9020106015
Washer, plate
Loading…
↗
10
6C54113400
Gasket, exhaust manifold
Loading…
↗
11
6C54518100CA
Plate
Loading…
↗
12
9360410M03
Pin, dowel (688)
Loading…
↗
13
6C54113500
Gasket, exhaust manifold
Loading…
↗
14
6C51471100CA
Muffler 1
Loading…
↗
15
9707506025
Bolt
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
6C54512300
Gasket, muffler
Loading…
↗
18
9011908102
Bolt, with washer
Loading…
↗
19
9011908132
Bolt, with washer
Loading…
↗
20
6C54515500
Cap
Loading…
↗
21
69W4531800
Bushing, drive shaft
Loading…
↗
22
9342036M01
Circlip (6a0)
Loading…
↗
23
9707510045
Bolt(64d)
Loading…
↗
24
9299510100
Ybs67-10 washer, spring
Loading…
↗
25
9299510600
Washer, plate
Loading…
↗
26
9360612019
Pin, dowel (614)
Loading…
↗
27
6C545111008D
Casing, upper
Loading…
↗
