F6CMH (2014)
UPPER CASING

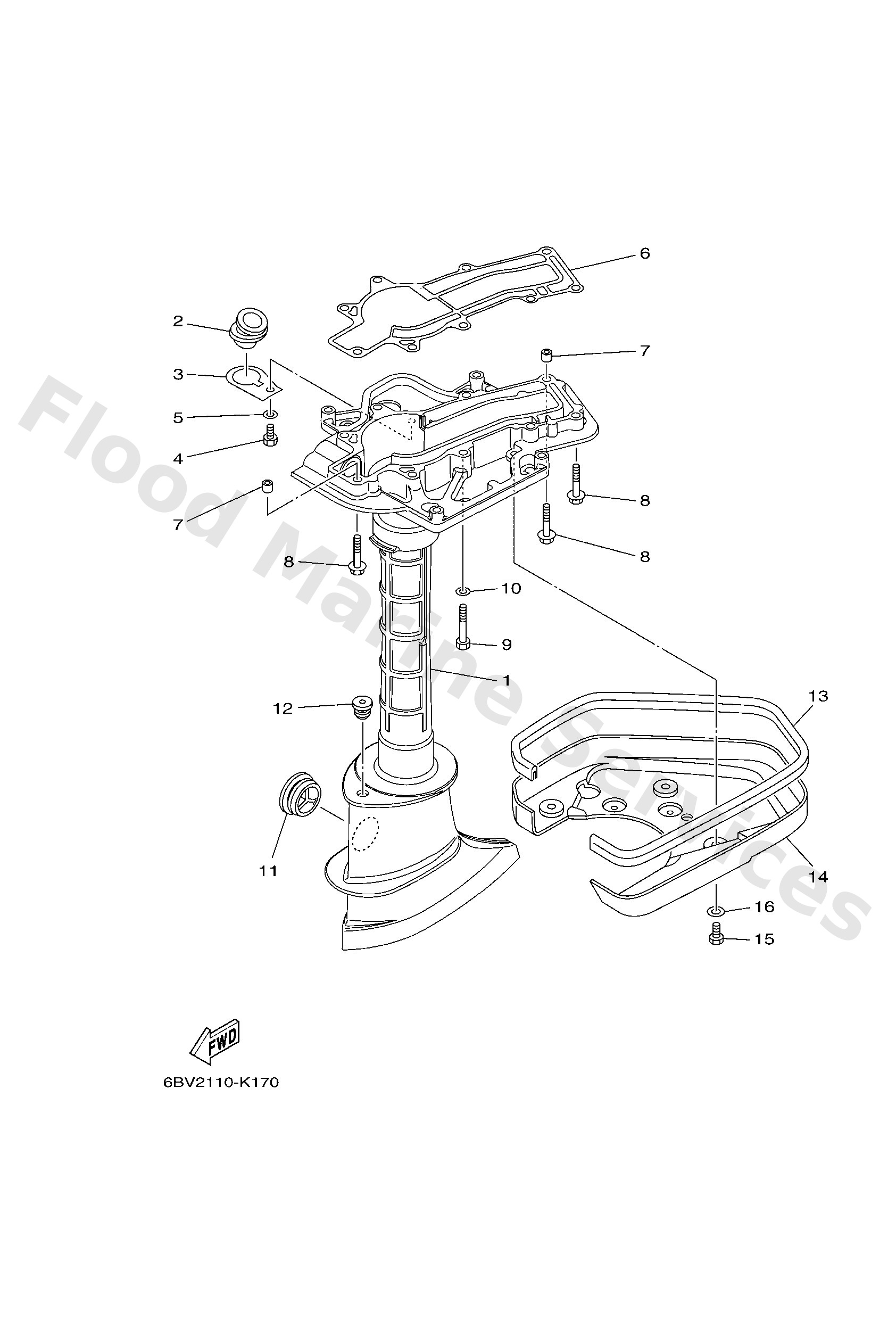

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6BXG5111004D
Upper casing & grease nipple
Loading…
↗
2
6BX1531600
Damper 1
Loading…
↗
3
6BXG532100
Plate
Loading…
↗
4
9709506014
Bolt(gj3)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
6BX4511300
Gasket, upper casing
Loading…
↗
7
9038706806
Collar(6e0)
Loading…
↗
8
9757506540
Bolt, hexagon w/w deep recess
Loading…
↗
9
9707506050
Bolt(jf7)
Loading…
↗
11
6474515101
Cover, upper casing
Loading…
↗
12
9048010M13
Grommet (6e0)
Loading…
↗
13
6BX4271600
Rubber, seal 1
Loading…
↗
14
6BXG272300
Cover, bottom
Loading…
↗
