F6CMH (2015)
UPPER CASING

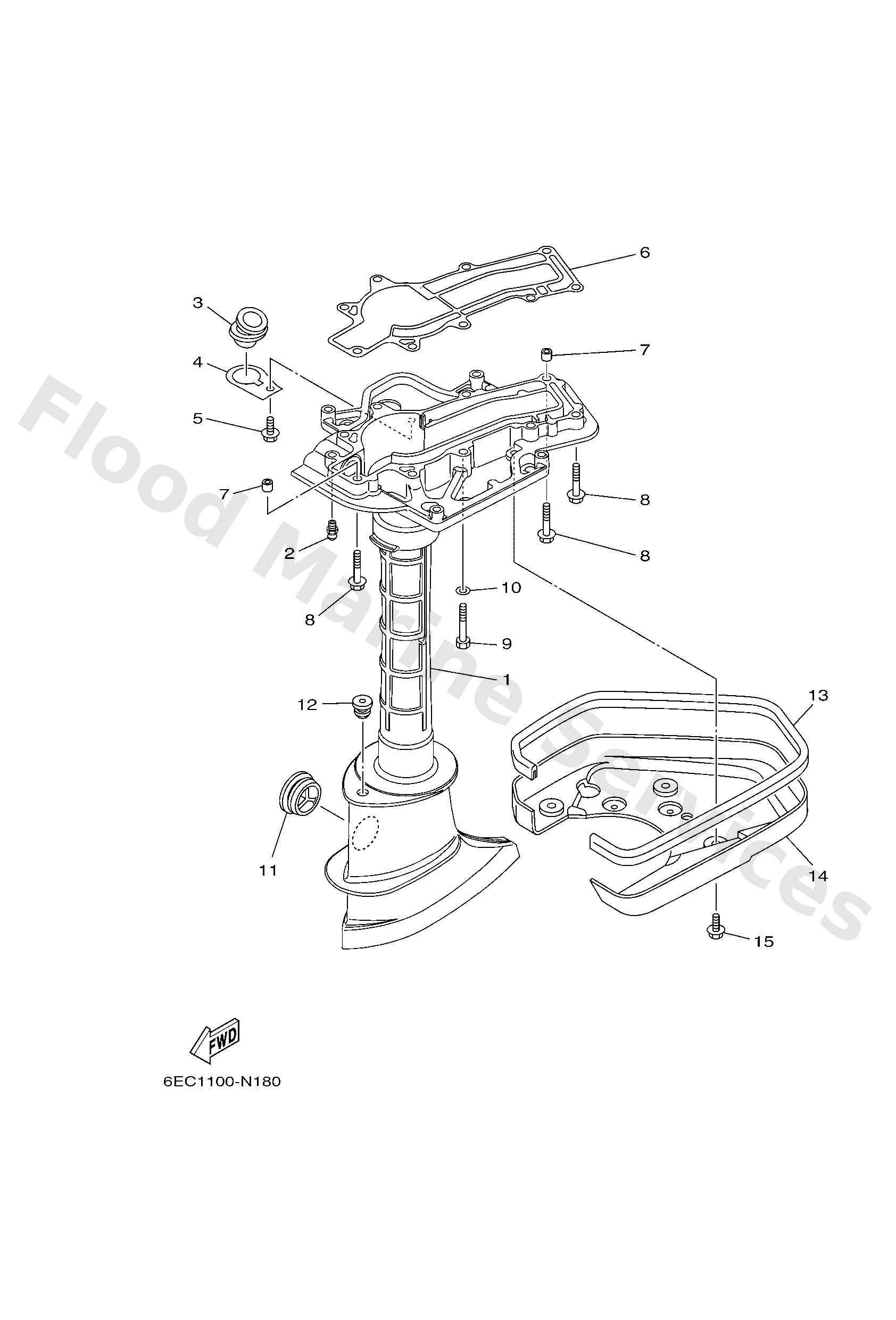

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6EEG5111004D
Casing, upper
Loading…
↗
2
9370006M03
Nipple, grease(6a1)
Loading…
↗
3
6EEE531600
Damper 1
Loading…
↗
4
6EEG518100
Plate
Loading…
↗
5
9759506514
Bolt(gj3)
Loading…
↗
6
6BX4511300
Gasket, upper casing
Loading…
↗
7
9038706M14
Collar(6e0)
Loading…
↗
8
9757506540
Bolt, hexagon w/w deep recess
Loading…
↗
9
9707506050
Bolt(jf7)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
6474515101
Cover, upper casing
Loading…
↗
12
9048010M13
Grommet (6e0)
Loading…
↗
13
6EEG271600
Rubber, seal 1
Loading…
↗
14
6EEG272300
Cover, bottom
Loading…
↗
