F70AET (2012)
UPPER CASING

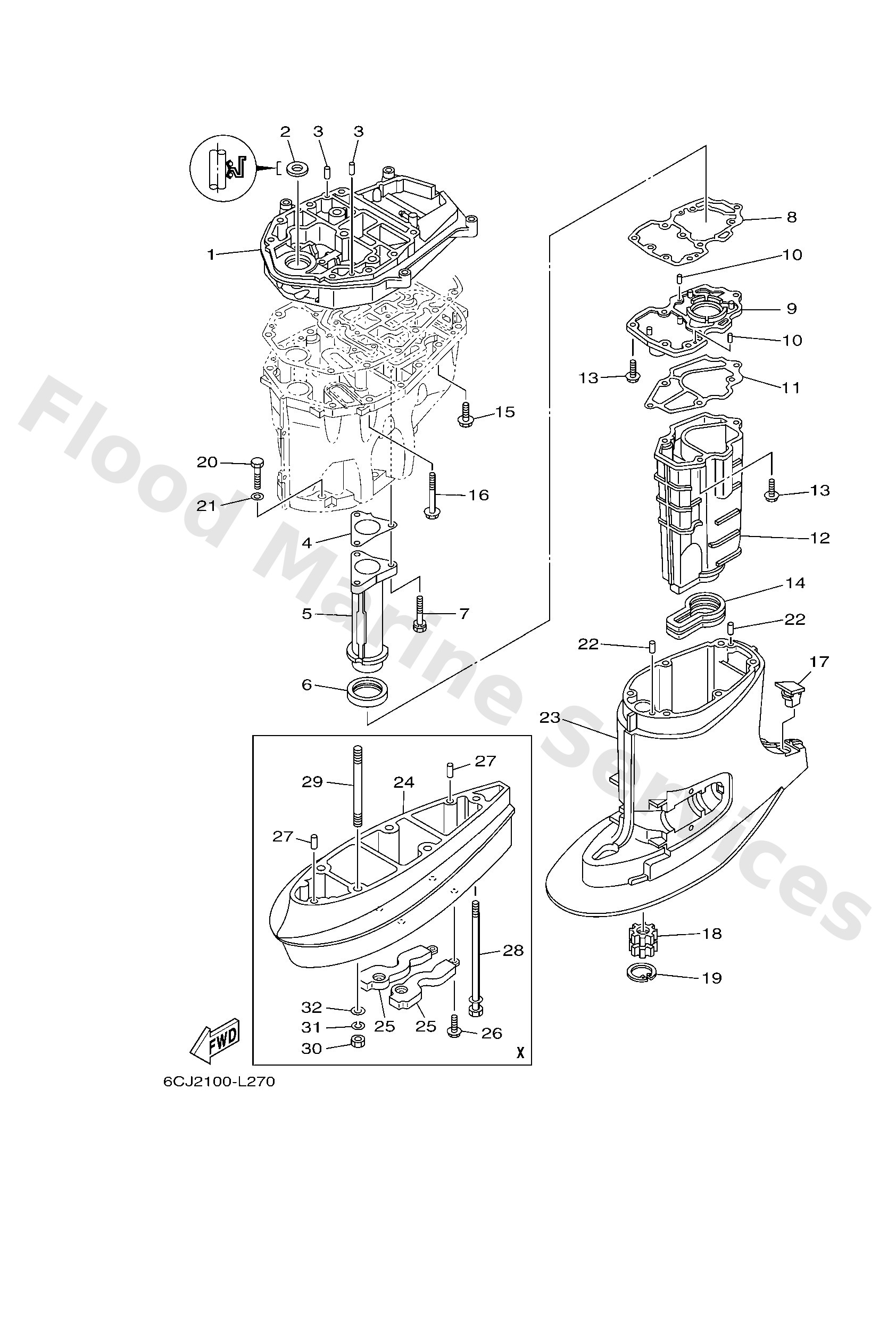

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6C54113702CA
Guide, exhaust
Loading…
↗
2
9310318011
Oil seal
Loading…
↗
3
9360812M05
Pin, dowel b (6e5)
Loading…
↗
4
6C54113300
Gasket, exhaust manifold 1
Loading…
↗
5
6C54113100CA
Manifold, ext. 1
Loading…
↗
6
6C54613200
Gasket 1
Loading…
↗
7
9011906261
Bolt, with washer
Loading…
↗
8
6C54113400
Gasket, exhaust manifold
Loading…
↗
9
6CJ4518100CA
Plate
Loading…
↗
10
9360410M03
Pin, dowel (688)
Loading…
↗
11
6C54113500
Gasket, exhaust manifold
Loading…
↗
12
6CJ14711009S
Muffler 1
Loading…
↗
13
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
14
6C54512300
Gasket, muffler
Loading…
↗
15
9011908102
Bolt, with washer
Loading…
↗
16
9011908132
Bolt, with washer
Loading…
↗
17
6C54515500
Cap
Loading…
↗
18
69W4531800
Bushing, drive shaft
Loading…
↗
19
9342036M01
Circlip (6a0)
Loading…
↗
20
9707510045
Bolt(64d)
Loading…
↗
32
9299510600
X(25.5")
Washer, plate
Loading…
↗
27
9360612019
X(25.5")
Pin, dowel (614)
Loading…
↗
23
6C545111008D
Casing, upper
Loading…
↗
24
6C545211008D
X(25.5")
Extension
Loading…
↗
25
6C545213005B
X(25.5")
Cover, extension
Loading…
↗
26
9757506520
X(25.5")
Bolt, hexagon w/w deep recess
Loading…
↗
28
9011908M00
X(25.5")
Bolt, with washer(62x)
Loading…
↗
29
9011610M53
X(25.5")
Bolt, stud
Loading…
↗
30
9538010600
X(25.5")
Nut(624)
Loading…
↗
31
9299010100
X(25.5")
Ybs67-10 washer, spring
Loading…
↗
