F80AET (2005)
UPPER CASING

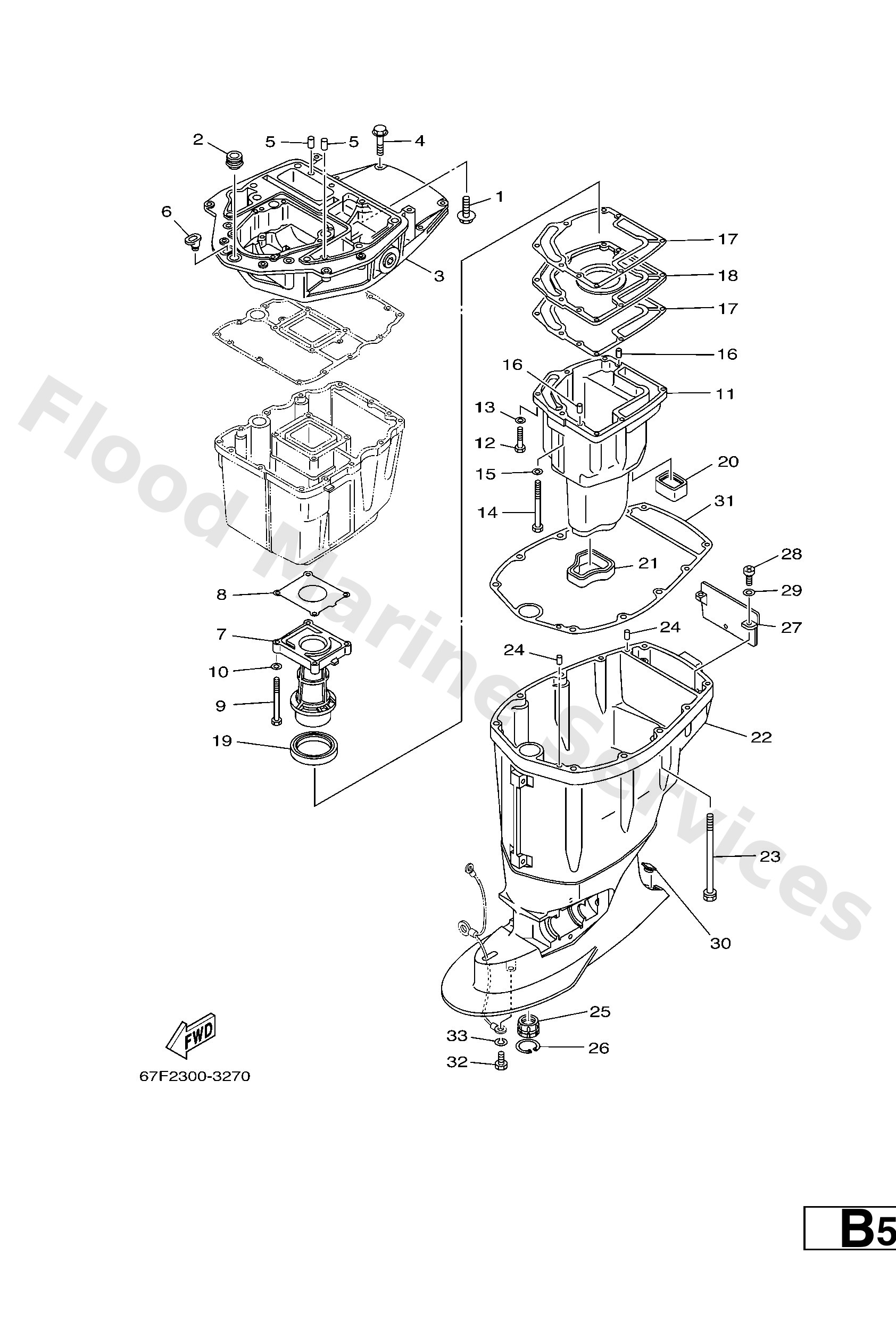

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
9011908M58
Bolt, with washer
Loading…
↗
2
67F4272400
Grommet
Loading…
↗
3
67F411370294
Guide, exhaust
Loading…
↗
4
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
5
9360816M16
Pin, dowel(6t4)
Loading…
↗
6
6G14272700
Grommet
Loading…
↗
7
67F41131015B
Manifold, ext. 1
Loading…
↗
8
67F41133A1
Gasket, exhaust manifold 1
Loading…
↗
9
9707506070
Bolt(4kg)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
67F14711005B
Muffler 1
Loading…
↗
12
9707506030
Bolt(jf7)
Loading…
↗
14
9707506050
Bolt(jf7)
Loading…
↗
16
9360619M23
Pin, dowel
Loading…
↗
17
67F41134A0
Gasket, exhaust manifold
Loading…
↗
18
67F45181005B
Plate
Loading…
↗
19
67F4113800
Seal, ext. 1
Loading…
↗
20
67F4512700
Seal
Loading…
↗
21
67F4512300
Gasket, muffler
Loading…
↗
22
67F45111114D
Casing, upper
Loading…
↗
23
9011910M08
Bolt, with washer
Loading…
↗
25
67F4531800
Bushing, drive shaft
Loading…
↗
26
9342036M01
Circlip (6a0)
Loading…
↗
27
67F4515100
Cover, upper casing
Loading…
↗
28
9788006016
Screw pan head
Loading…
↗
29
9299006600
Washer, plain (646)
Loading…
↗
30
67F4515500
Cap
Loading…
↗
31
67F4511300
Gasket, upper casing
Loading…
↗
32
9709508016
Bolt, hexagon deep recess
Loading…
↗
33
9299508100
Ybs67-8 washer, spring
