F80BET (2016)
UPPER CASING

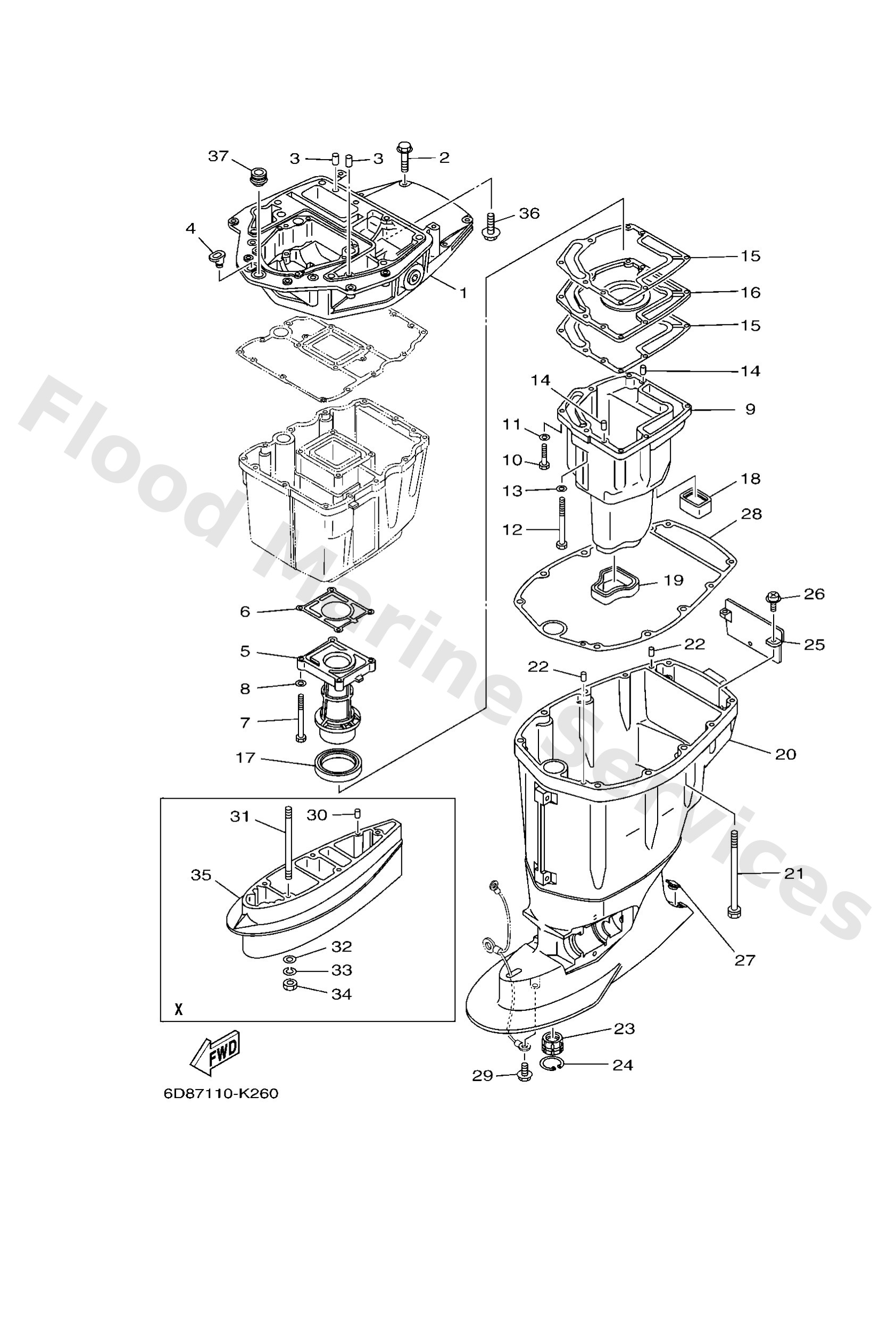

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6D84113700CA
Guide, exhaust
Loading…
↗
2
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
3
9360816M16
Pin, dowel(6t4)
Loading…
↗
4
6G14272700
Grommet
Loading…
↗
5
67F4113101CA
Manifold, ext. 1
Loading…
↗
6
67F41133A1
Gasket, exhaust manifold 1
Loading…
↗
7
9707506070
Bolt(4kg)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
67F1471100CA
Muffler 1
Loading…
↗
10
9707506030
Bolt(jf7)
Loading…
↗
12
9707506050
Bolt(jf7)
Loading…
↗
14
9360619M23
Pin, dowel
Loading…
↗
15
67F41134A0
Gasket, exhaust manifold
Loading…
↗
16
67F4518100CA
Plate
Loading…
↗
17
67F4113800
Seal, ext. 1
Loading…
↗
18
67F4512700
Seal
Loading…
↗
19
67F4512300
Gasket, muffler
Loading…
↗
20
67F45111118D
Casing, upper
Loading…
↗
21
9011910M08
Bolt, with washer
Loading…
↗
23
67F4531800
Bushing, drive shaft
Loading…
↗
24
9342036M01
Circlip (6a0)
Loading…
↗
25
67F4515100
Cover, upper casing
Loading…
↗
26
9798006216
Screw, with washer(6h2)
Loading…
↗
27
67F4515500
Cap
Loading…
↗
28
67F4511300
Gasket, upper casing
Loading…
↗
29
9589508014
Bolt, flange deep recess
Loading…
↗
30
9360612019
X(26.1")
Pin, dowel (614)
Loading…
↗
31
9011610M05
X(26.1")
Bolt, stud (688)
Loading…
↗
32
9299510600
X(26.1")
Washer, plate
Loading…
↗
33
9299010100
X(26.1")
Ybs67-10 washer, spring
Loading…
↗
34
9538010600
X(26.1")
Nut(624)
Loading…
↗
35
68845211018D
X(26.1")
Extension
Loading…
↗
36
9011908M58
Bolt, with washer
Loading…
↗
37
67F4272400
Grommet
Loading…
↗
