F8CMH (2014)
UPPER CASING

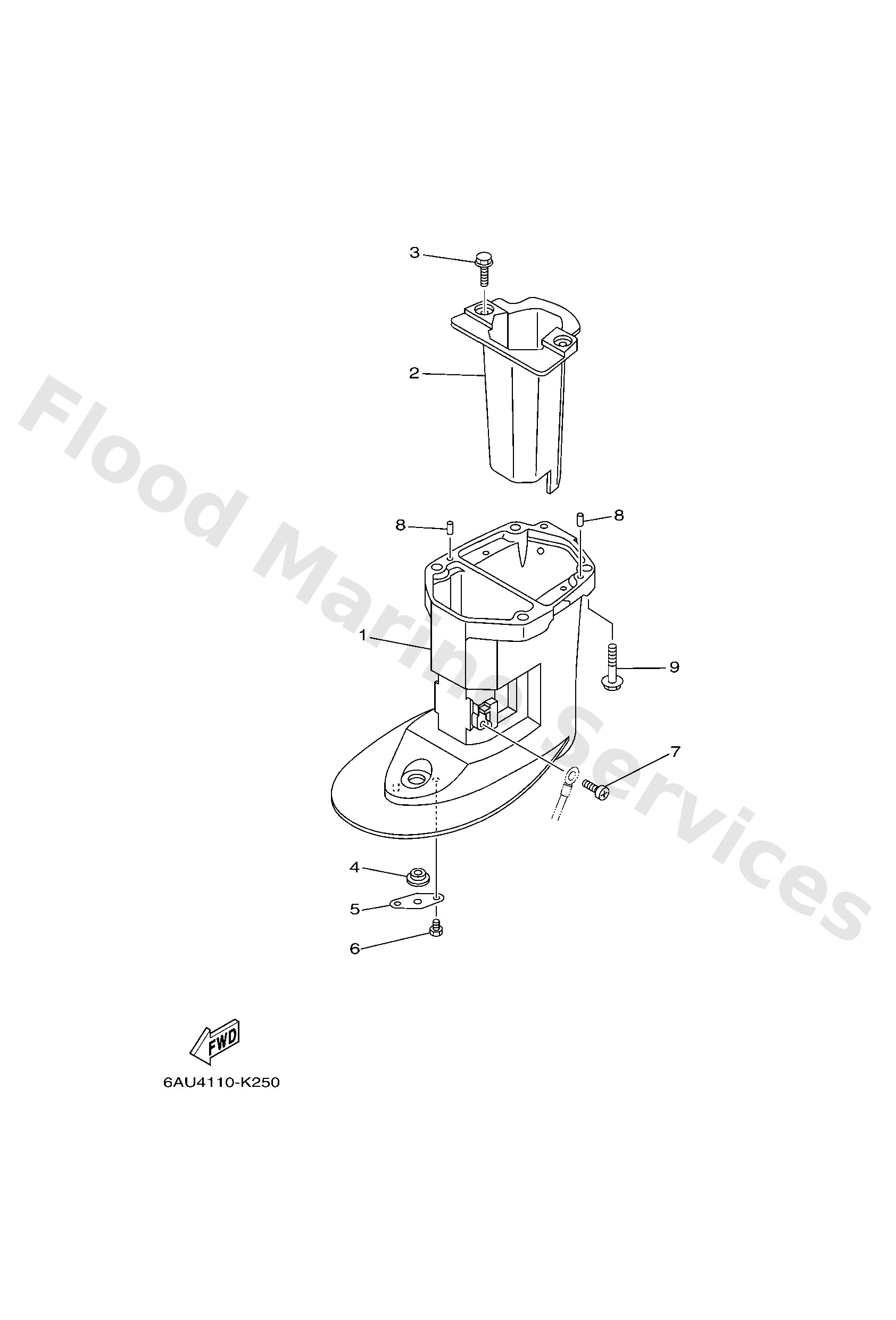

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
60RG5111004D
S(17.1")
Casing upper
Loading…
↗
1
60RG5111104D
L(22.1")
Casing, upper
Loading…
↗
2
60RE471100CA
Muffler 1
Loading…
↗
3
9757506514
Bolt, hexagon w/w deep recess
Loading…
↗
4
9048014M54
Grommet
Loading…
↗
5
68T4532100
Plate
Loading…
↗
6
9709506008
Bolt (fj1)
Loading…
↗
7
9788505008
Screw, pan head
Loading…
↗
8
9360412M07
Pin, dowel (688)
Loading…
↗
9
9757508535
Bolt(70w)
Loading…
↗
