F8FMH (2023)
UPPER CASING

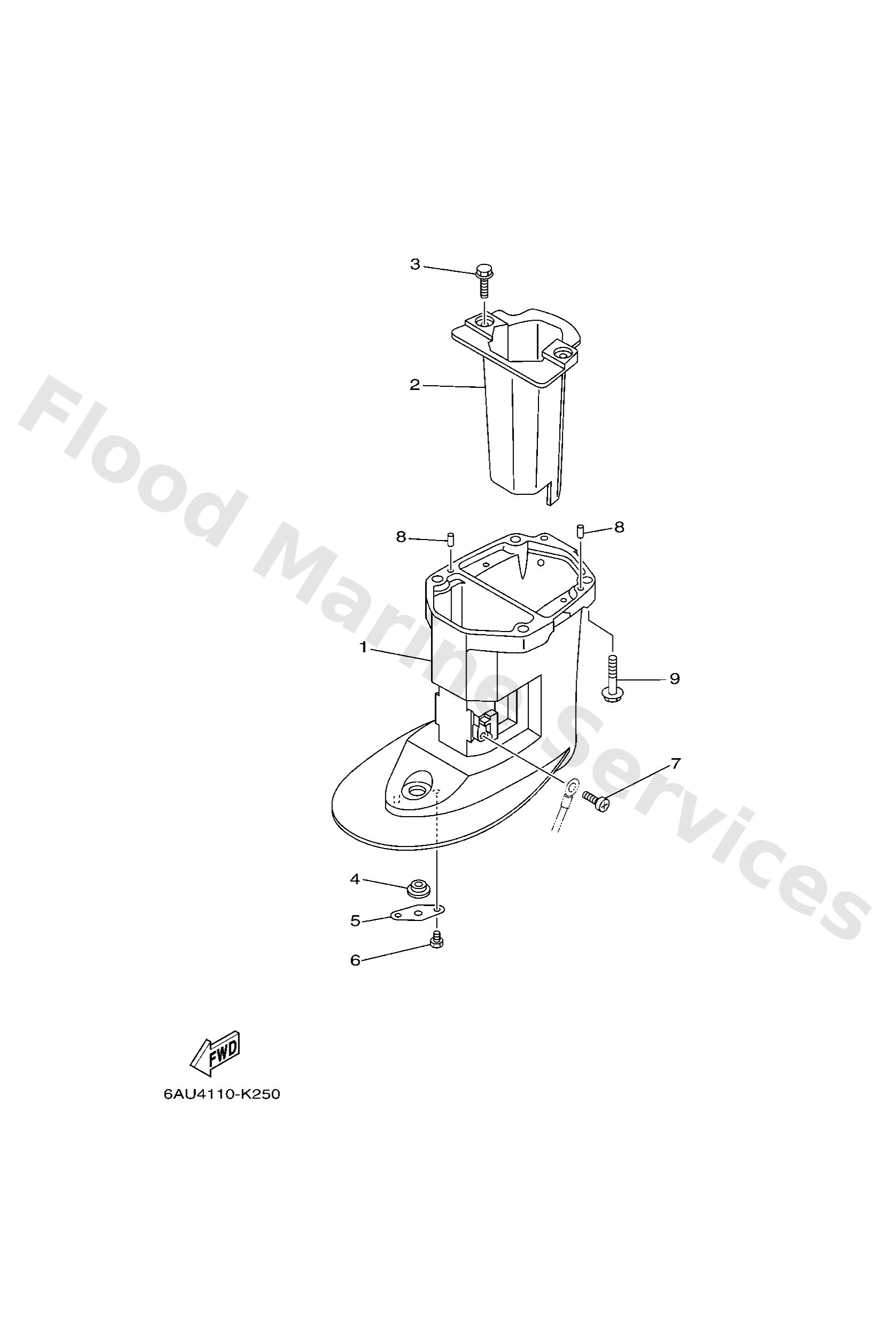

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6AU45111008D
S(17.0")
Casing, upper
Loading…
↗
1
6AU45111108D
L(22.0")
Casing, upper
Loading…
↗
2
6AU1471100CA
Muffler 1
Loading…
↗
3
97E7506514
Bolt, hexagon w/w deep recess
Loading…
↗
4
9048014M54
Grommet
Loading…
↗
5
68T4532100
Plate
Loading…
↗
6
97D9506008
Bolt, hexagon deep recess
Loading…
↗
7
9788505008
Screw, pan head
Loading…
↗
8
9360412M07
Pin, dowel (688)
Loading…
↗
9
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
