FL115AET (2010)
UPPER CASING

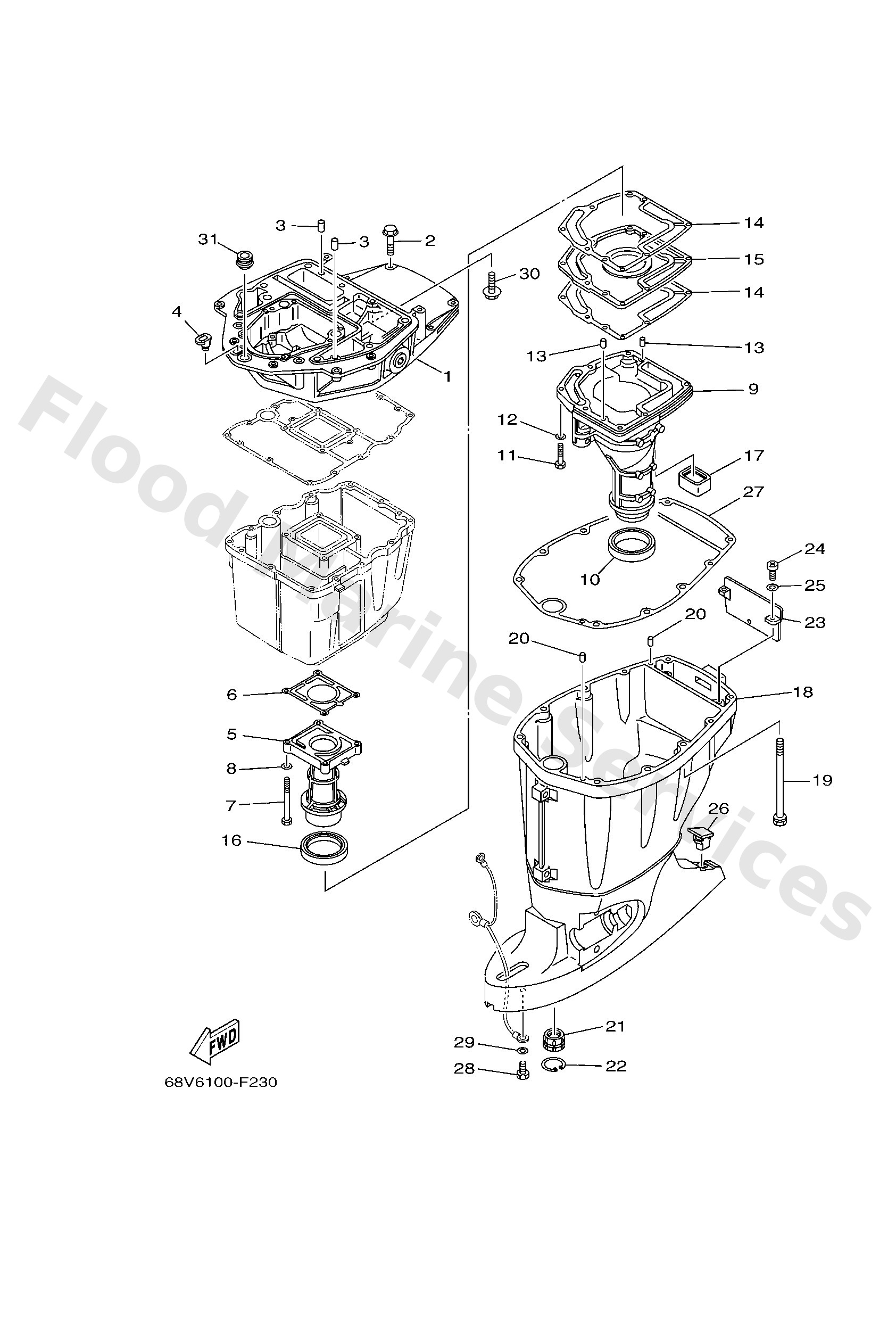

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
67F4113702CA
Guide, exhaust
Loading…
↗
2
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
3
9360816M16
Pin, dowel(6t4)
Loading…
↗
4
6G14272700
Grommet
Loading…
↗
5
67F4113101CA
Manifold, ext. 1
Loading…
↗
6
67F41133A1
Gasket, exhaust manifold 1
Loading…
↗
7
9707506070
Bolt(4kg)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
68V1471110CA
L(20.3")
Muffler 1
Loading…
↗
9
68V1471130CA
X(25.3")
Muffler 1
Loading…
↗
10
68V4512300
Gasket, muffler
Loading…
↗
11
9707506030
Bolt(jf7)
Loading…
↗
13
9360619M23
Pin, dowel
Loading…
↗
14
67F41134A0
Gasket, exhaust manifold
Loading…
↗
15
67F4518100CA
Plate
Loading…
↗
16
67F4113800
Seal, ext. 1
Loading…
↗
17
67F4512700
Seal
Loading…
↗
18
68V45111118D
L(20.3")
Casing, upper
Loading…
↗
18
68V45111318D
X(25.3")
Casing, upper
Loading…
↗
19
9011910M08
Bolt, with washer
Loading…
↗
21
6E54531800
Bushing, drive shaft 3
Loading…
↗
22
9342036M01
Circlip (6a0)
Loading…
↗
23
67F4515100
Cover, upper casing
Loading…
↗
24
9788006016
Screw pan head
Loading…
↗
25
9299006600
Washer, plain (646)
Loading…
↗
26
6C54515500
Cap
Loading…
↗
27
67F4511300
Gasket, upper casing
Loading…
↗
28
9709506010
Bolt
Loading…
↗
30
9011908M58
Bolt, with washer
Loading…
↗
31
67F4272400
Grommet
Loading…
↗
