FL150AET (2004)
UPPER CASING

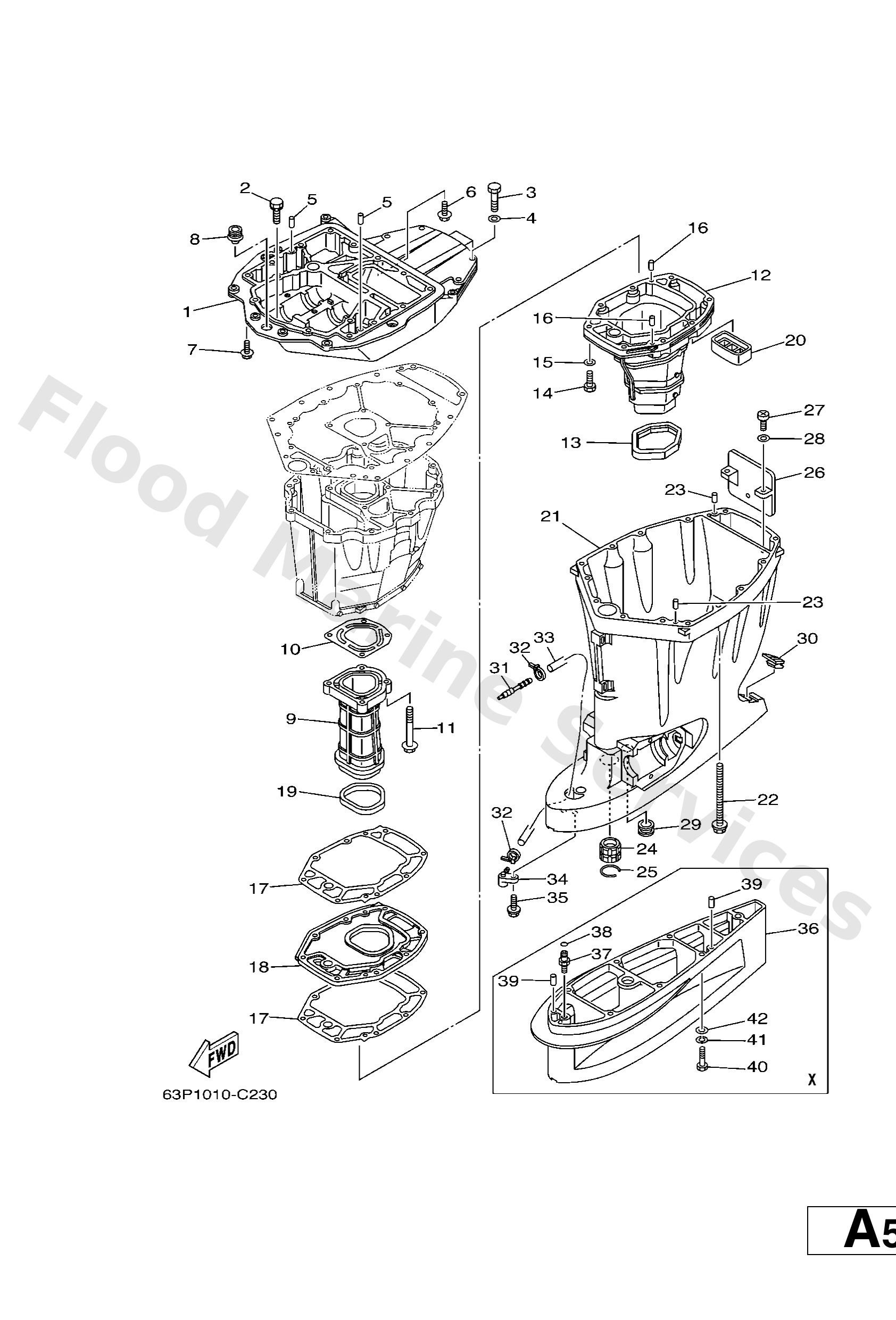

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
63P4113700
Guide, exhaust
Loading…
↗
2
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
3
9707510045
Bolt(64d)
Loading…
↗
42
9299510600
X
Washer, plate
Loading…
↗
39
9360816M16
X
Pin, dowel(6t4)
Loading…
↗
6
9011908M58
Bolt, with washer
Loading…
↗
7
9757510535
Bolt, hexagon w/w deep recess
Loading…
↗
8
6E54272400
Grommet
Loading…
↗
9
63P41131005B
Manifold, ext. 1
Loading…
↗
10
63P41133A0
Gasket, exhaust manifold 1
Loading…
↗
11
9757508560
Bolt, hexagon w/w deep recess
Loading…
↗
12
63P14711005B
Muffler 1
Loading…
↗
13
69J4512300
Gasket, muffler
Loading…
↗
14
9707508035
Bolt(70w)
Loading…
↗
15
9299508600
Washer, plain (663)
Loading…
↗
16
9360619M23
Pin, dowel
Loading…
↗
17
63P41134A0
Gasket, exhaust manifold
Loading…
↗
18
63P45181005B
Plate
Loading…
↗
19
63P4113800
Seal, ext. 1
Loading…
↗
20
69J4512700
Seal
Loading…
↗
21
63P45111008D
Casing, upper
Loading…
↗
22
9011910007
Bolt, with washer
Loading…
↗
24
6E54531800
Bushing, drive shaft 3
Loading…
↗
25
9342036M01
Circlip (6a0)
Loading…
↗
26
69J1462401
Cover, exhaust
Loading…
↗
27
9788006016
Screw pan head
Loading…
↗
28
9299006600
Washer, plain (646)
Loading…
↗
29
6E54436600
Damper, water seal 2
Loading…
↗
30
6H34515500
Cap
Loading…
↗
31
6E58355800
End, nipple
Loading…
↗
32
9046511M10
Clamp
Loading…
↗
33
90445070F1
Hose (l1050)
Loading…
↗
34
63P4537900
Nipple, hose
Loading…
↗
35
9011906M18
Bolt, with washer(61n)
Loading…
↗
36
63P45211008D
X
Extension
Loading…
↗
37
63P4537800
X
Nipple, hose
Loading…
↗
38
9321007003
X
O-ring (11m)
Loading…
↗
40
9709510045
X
Bolt(64d)
Loading…
↗
41
9299510100
X
Ybs67-10 washer, spring
Loading…
↗
