FL150AET (2014)
UPPER CASING

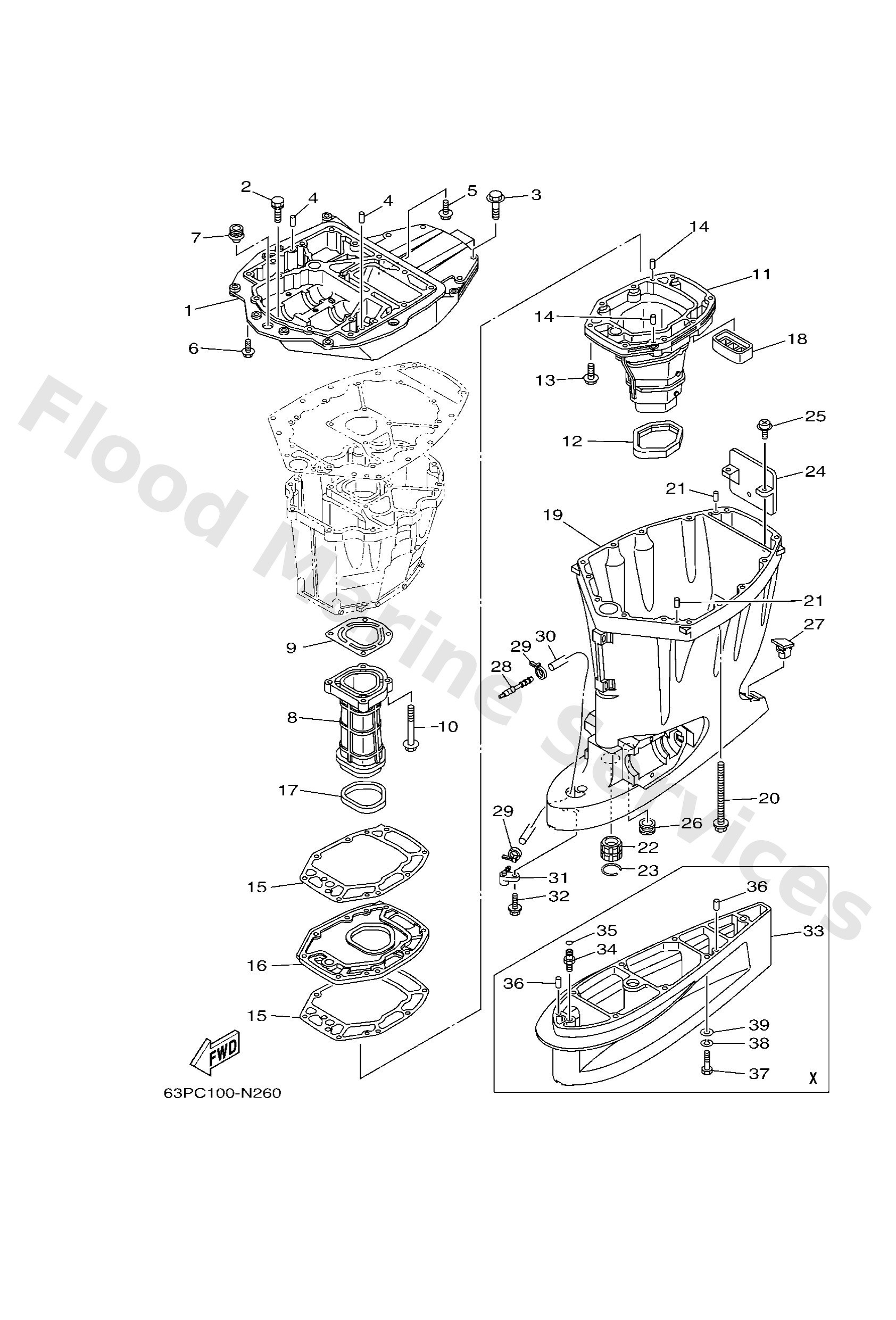

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
63P4113704CA
Guide, exhaust
Loading…
↗
2
9011908102
Bolt, with washer
Loading…
↗
3
9757510545
Bolt, hexagon w/w deep recess
Loading…
↗
36
9360816M16
X(25.3")
Pin, dowel(6t4)
Loading…
↗
5
9011908M58
Bolt, with washer
Loading…
↗
6
9757510535
Bolt, hexagon w/w deep recess
Loading…
↗
7
6E54272400
Grommet
Loading…
↗
8
63P41131019S
Manifold, ext. 1
Loading…
↗
9
63P41133A0
Gasket, exhaust manifold 1
Loading…
↗
10
9757508560
Bolt, hexagon w/w deep recess
Loading…
↗
11
63P14711019S
Muffler 1
Loading…
↗
12
69J4512300
Gasket, muffler
Loading…
↗
13
9757508535
Bolt(70w)
Loading…
↗
14
9360619M23
Pin, dowel
Loading…
↗
15
63P41134A1
Gasket, exhaust manifold
Loading…
↗
16
63P45181019S
Plate
Loading…
↗
17
63P4113800
Seal, ext. 1
Loading…
↗
18
69J4512700
Seal
Loading…
↗
19
63P45111008D
Casing, upper
Loading…
↗
20
9011910007
Bolt, with washer
Loading…
↗
22
6E54531800
Bushing, drive shaft 3
Loading…
↗
23
9342036M01
Circlip (6a0)
Loading…
↗
24
69J1462401
Cover, exhaust
Loading…
↗
25
9798006216
Screw, with washer(6h2)
Loading…
↗
26
6E54436600
Damper, water seal 2
Loading…
↗
27
6C54515500
Cap
Loading…
↗
28
6E58355800
63PC-F150AET2
End, nipple
Loading…
↗
29
9046511M10
FOR F(L)150AET2
Clamp
Loading…
↗
30
9044507018
FOR F150AET
Hose (l1457)
Loading…
↗
30
90445070F1
FOR F(L)150AET2
Hose (l1050)
Loading…
↗
31
63P4537900
Nipple, hose
Loading…
↗
32
9011906M18
Bolt, with washer(61n)
Loading…
↗
33
63P45211008D
X(25.3")
Extension
Loading…
↗
34
63P4537800
X(25.3")
Nipple, hose
Loading…
↗
35
9321007003
X(25.3")
O-ring (11m)
Loading…
↗
37
9709510045
X(25.3")
Bolt(64d)
Loading…
↗
38
9299510100
X(25.3")
Ybs67-10 washer, spring
Loading…
↗
39
9299510600
X(25.3")
Washer, plate
Loading…
↗
