FL200CET (2007)
UPPER CASING

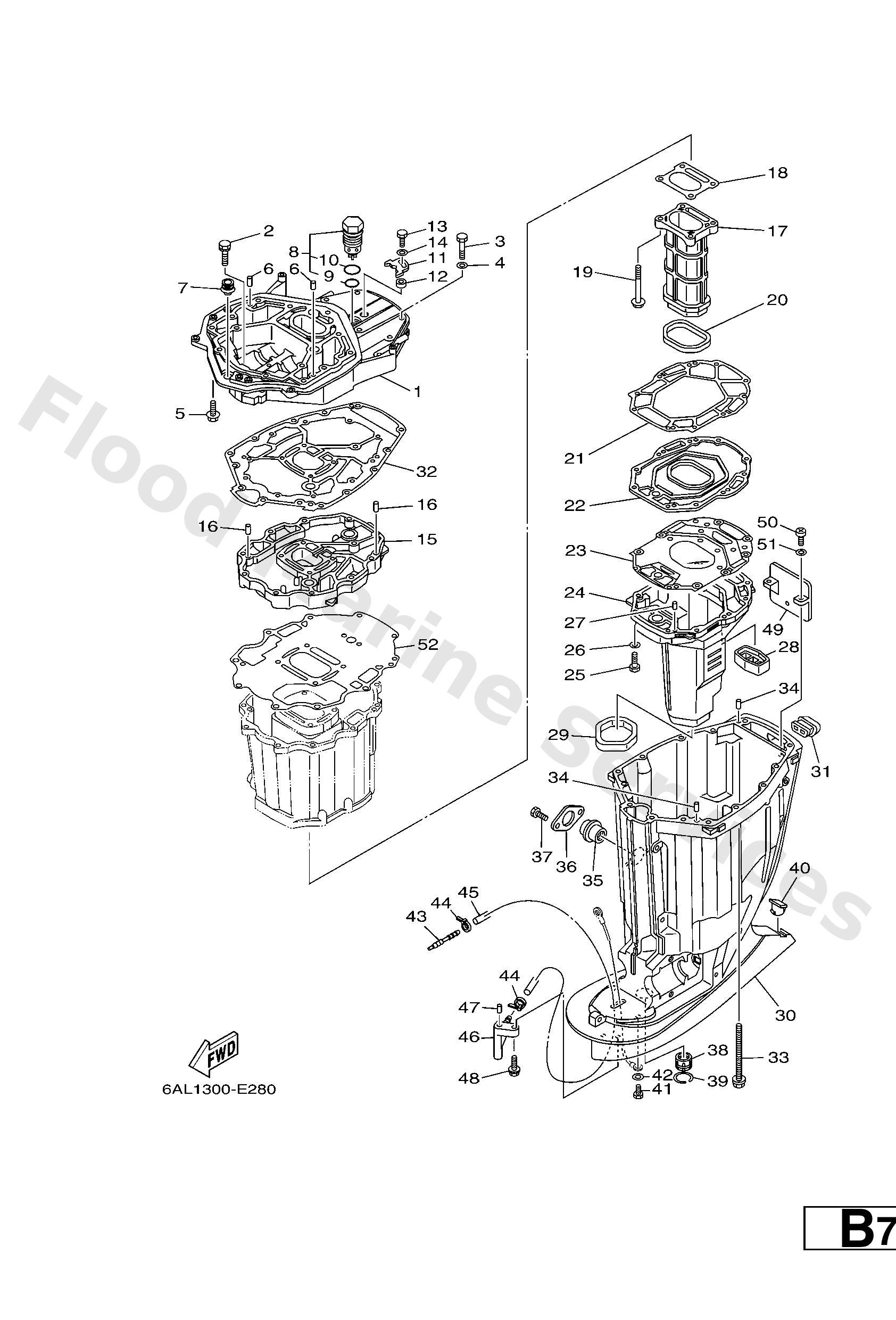

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69J411370294
Guide, exhaust
Loading…
↗
2
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
3
9707510045
Bolt(64d)
Loading…
↗
4
9299510600
Washer, plate
Loading…
↗
5
9757510535
Bolt, hexagon w/w deep recess
Loading…
↗
6
9360816M16
Pin, dowel(6t4)
Loading…
↗
7
6E54272400
Grommet
Loading…
↗
8
69J1137100
Pressure control valve assembly
Loading…
↗
9
9321028543
O-ring(72f)
Loading…
↗
10
9321033MG4
O-ring
Loading…
↗
11
69J1223300
Plate, guide stopper 1
Loading…
↗
12
9038706037
Collar 8121444900
Loading…
↗
13
9709506020
Bolt(7u8)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
69J411311094
Manifold, ext. 1
Loading…
↗
17
69J41132105B
Manifold, exhaust
Loading…
↗
18
6P24113400
Gasket, exhaust manifold
Loading…
↗
19
9757508590
Bolt, hexagon w/w deep recess
Loading…
↗
20
69J4113800
Seal, ext. 1
Loading…
↗
21
69J41135A0
Gasket, exhaust manifold
Loading…
↗
22
69J45181005B
Plate
Loading…
↗
23
6S14113600
Gasket, exhaust manifold 4
Loading…
↗
24
69J14711105B
Muffler 1
Loading…
↗
25
9707508035
Bolt(70w)
Loading…
↗
26
9299508600
Washer, plain (663)
Loading…
↗
27
9360619M23
Pin, dowel
Loading…
↗
28
69J4512700
Seal
Loading…
↗
29
69J4512300
Gasket, muffler
Loading…
↗
30
69J45111108D
Casing, upper
Loading…
↗
31
69J4276900
Seal, rubber
Loading…
↗
32
69J4511320
Gasket, upper casing
Loading…
↗
33
9011910007
Bolt, with washer
Loading…
↗
35
69J1531600
Damper 1
Loading…
↗
36
69J45152008D
Cover, upper casing 2
Loading…
↗
37
9709506014
Bolt(gj3)
Loading…
↗
38
69J4531801
Bushing, drive shaft
Loading…
↗
39
9342036M01
Circlip (6a0)
Loading…
↗
40
61A4515500
Cap
Loading…
↗
41
9709506010
Bolt
Loading…
↗
43
6E58355800
End, nipple
Loading…
↗
44
9046511M10
Clamp
Loading…
↗
45
9044507010
X(25.3")
Hose (l1457)
Loading…
↗
46
61A4537800
Nipple, hose
Loading…
↗
47
9360612019
Pin, dowel (614)
Loading…
↗
48
9011906M17
Bolt, with washer
Loading…
↗
49
69J1462401
Cover, exhaust
Loading…
↗
50
9788006016
Screw pan head
Loading…
↗
51
9299006600
Washer, plain (646)
Loading…
↗
52
69J1531201
Gasket, oil pan
Loading…
↗
