Yamaha Outboard Parts - UPPER CASING - FL200CET (2024) | Flood Marine
New Search
Parts
New Outboards
Home
FL200CET (2024)
UPPER CASING

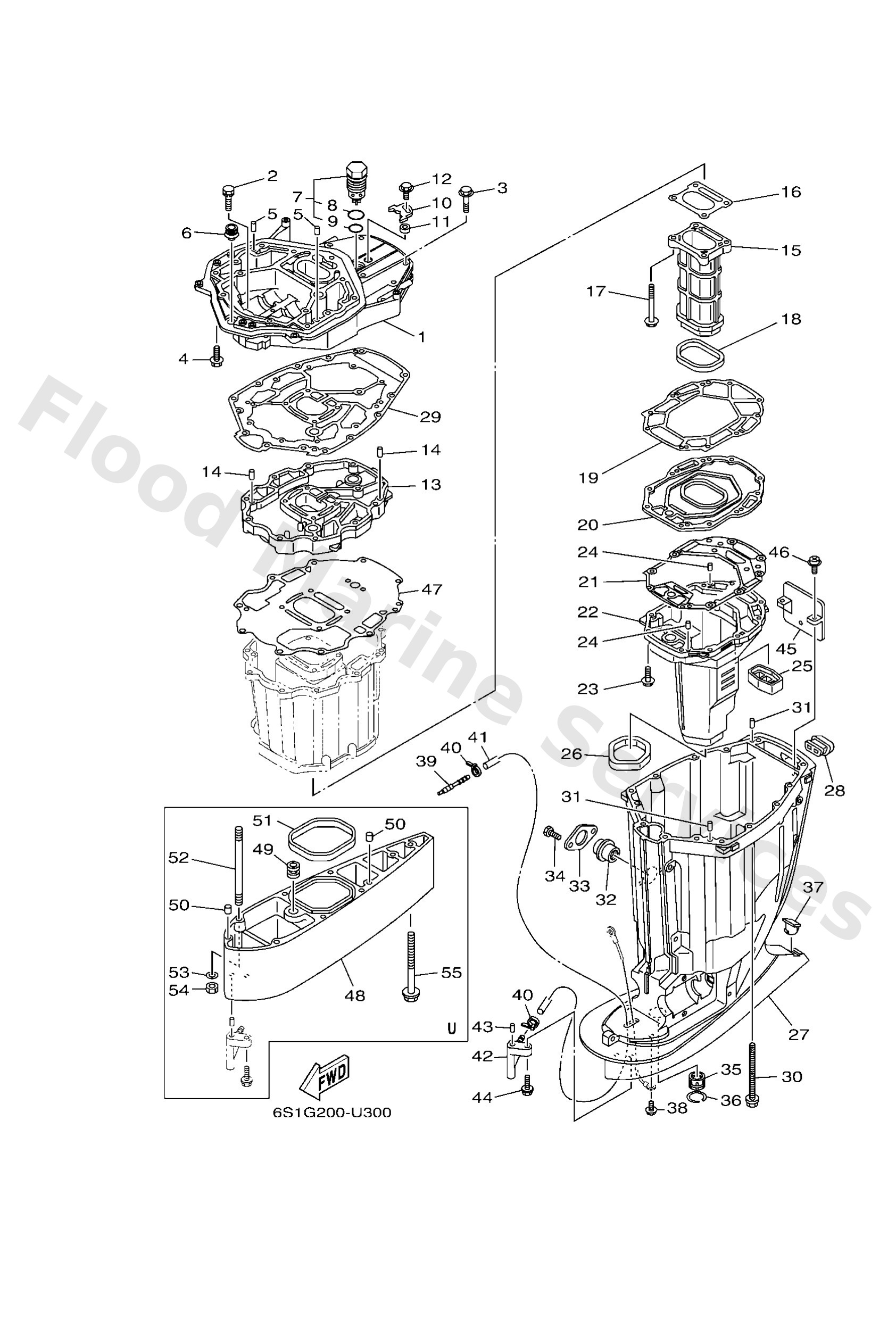

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69J4113710CA
Guide, exhaust
Loading…
↗
2
9011908182
Bolt, with washer
Loading…
↗
3
97E7510545
Bolt, hexagon w/w deep recess
Loading…
↗
4
97E7510535
Bolt, hexagon w/w deep recess
Loading…
↗
5
9360816M16
Pin, dowel(6t4)
Loading…
↗
6
6E54272401
Grommet
Loading…
↗
7
6AW1137110
Pressure control valve assembly
Loading…
↗
8
93210347A1
O-ring
Loading…
↗
9
9321028543
O-ring(72f)
Loading…
↗
10
69J1223300
Plate, guide stopper 1
Loading…
↗
11
9038706037
Collar 8121444900
Loading…
↗
12
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
13
69J4113111CA
Manifold, ext. 1
Loading…
↗
15
69J41132209S
Manifold, exhaust
Loading…
↗
16
6P24113400
Gasket, exhaust manifold
Loading…
↗
17
97E7508590
Bolt, hexagon w/w deep recess
Loading…
↗
18
69J4113800
Seal, ext. 1
Loading…
↗
19
69J41135A0
Gasket, exhaust manifold
Loading…
↗
20
69J45181109S
Plate
Loading…
↗
21
6S14113601
Gasket, exhaust manifold 4
Loading…
↗
22
69J14711009S
Muffler 1
Loading…
↗
23
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
24
9360619M23
Pin, dowel
Loading…
↗
25
69J4512701
Seal
Loading…
↗
26
69J4512300
Gasket, muffler
Loading…
↗
27
69J45111108D
Casing, upper
Loading…
↗
28
69J4276901
Seal, rubber
Loading…
↗
29
69J4511321
Gasket, upper casing
Loading…
↗
30
9011910007
Bolt, with washer
Loading…
↗
32
69J1531601
Damper 1
Loading…
↗
33
69J4515210
Cover, upper casing 2
Loading…
↗
34
97D9506012
Bolt, hexagon deep recess
Loading…
↗
35
69J4531801
Bushing, drive shaft
Loading…
↗
36
9342036M01
Circlip (6a0)
Loading…
↗
37
61A4515501
Cap
Loading…
↗
38
95D9506010
Bolt, flange deep recess
Loading…
↗
39
6E58355800
End, nipple
Loading…
↗
40
9046511M10
Clamp
Loading…
↗
41
9044507010
X(25.3")
Hose (l1457)
Loading…
↗
41
9044507012
U(30.3")
Hose (l1457)
Loading…
↗
42
61A4537800
Nipple, hose
Loading…
↗
43
9360612019
Pin, dowel (614)
Loading…
↗
44
9011906309
Bolt, with washer
Loading…
↗
45
69J1462401
Cover, exhaust
Loading…
↗
46
9798006216
Screw, with washer(6h2)
Loading…
↗
47
69J1531202
Gasket, oil pan
Loading…
↗
48
69J45211028D
U(30.3")
Extension
Loading…
↗
49
6E54436601
U(30.3")
Damper, water seal 2
Loading…
↗
50
9360812M05
U(30.3")
Pin, dowel b (6e5)
Loading…
↗
51
69J4515900
U(30.3")
Damper
Loading…
↗
52
9011610012
U(30.3")
Bolt, stud
Loading…
↗
53
9299510600
U(30.3")
Washer, plate
Loading…
↗
54
9538010600
U(30.3")
Nut(624)
Loading…
↗
55
9011910009
U(30.3")
Bolt, with washer
Loading…
↗
