FL225FET (2018)
UPPER CASING

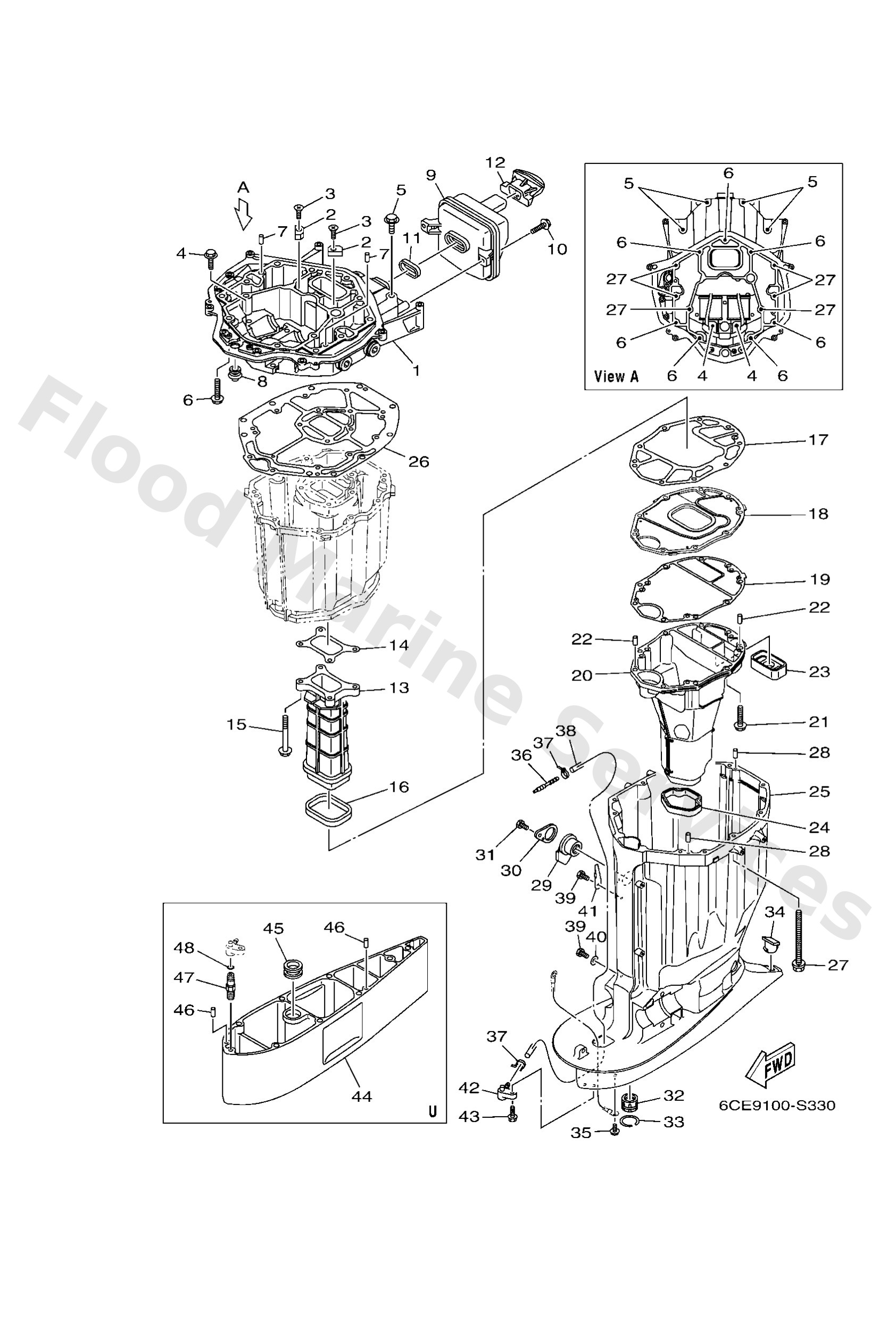

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6CE4113701
Guide, exhaust
Loading…
↗
2
63P1132511
Anode
Loading…
↗
3
9015106M02
Screw, countersunk
Loading…
↗
4
9011908102
Bolt, with washer
Loading…
↗
5
9757510545
Bolt, hexagon w/w deep recess
Loading…
↗
6
9757510535
Bolt, hexagon w/w deep recess
Loading…
↗
46
9360816M16
U(30.3")
Pin, dowel(6t4)
Loading…
↗
8
6E54272400
Grommet
Loading…
↗
9
6CB14750A0
Silencer assembly
Loading…
↗
10
9589506020
Bolt, flange(jk3)
Loading…
↗
11
6CB1475500
Gasket, silencer
Loading…
↗
12
6CB4276901
Seal, rubber
Loading…
↗
13
6CB4113201
Manifold, exhaust
Loading…
↗
14
6CB4113400
Gasket, exhaust manifold
Loading…
↗
15
9757508560
Bolt, hexagon w/w deep recess
Loading…
↗
16
6CB4113800
Seal, ext. 1
Loading…
↗
17
6CB4113500
Gasket, exhaust manifold
Loading…
↗
18
6CE4518101
Plate
Loading…
↗
19
6CE4113600
Gasket, exhaust manifold 4
Loading…
↗
20
6CE1471101
Muffler 1
Loading…
↗
21
9757508535
Bolt(70w)
Loading…
↗
22
9360619M23
Pin, dowel
Loading…
↗
23
6CE4512700
Seal
Loading…
↗
24
6CE4512300
Gasket, muffler
Loading…
↗
25
6CE45111018D
Casing, upper
Loading…
↗
26
6CB4511300
Gasket, upper casing
Loading…
↗
27
9011910007
Bolt, with washer
Loading…
↗
29
6BB1531600
Damper 1
Loading…
↗
30
6BB4515201
Cover, upper casing 2
Loading…
↗
31
9709506012
Bolt(gh1)
Loading…
↗
32
69J4531801
Bushing, drive shaft
Loading…
↗
33
9342036M01
Circlip (6a0)
Loading…
↗
34
61A4515500
Cap
Loading…
↗
35
9589506010
Bolt, flange(7ht)
Loading…
↗
36
6E58355800
EXCEPT LAN SPEED
End, nipple
Loading…
↗
37
9046511M10
FOR LAN SPEED
Clamp
Loading…
↗
38
9044507034
FOR LAN SPEED
Hose
Loading…
↗
38
9044507032
EXCEPT LAN SPEED
Hose
Loading…
↗
39
9709506010
Bolt
Loading…
↗
40
9020106M02
Washer,plate (6k8)
Loading…
↗
41
9046210061
Clamp
Loading…
↗
42
63P4537900
Nipple, hose
Loading…
↗
43
9011906M18
Bolt, with washer(61n)
Loading…
↗
44
6CE45211108D
U(30.3")
Extension
Loading…
↗
45
6AW4436600
U(30.3")
Damper, water seal 2
Loading…
↗
47
63P4537800
U(30.3")
Nipple, hose
Loading…
↗
48
9321007003
U(30.3")
O-ring (11m)
Loading…
↗
