Yamaha Outboard Parts - UPPER CASING - FL225JET (2025) | Flood Marine
New Search
Parts
New Outboards
Home
FL225JET (2025)
UPPER CASING

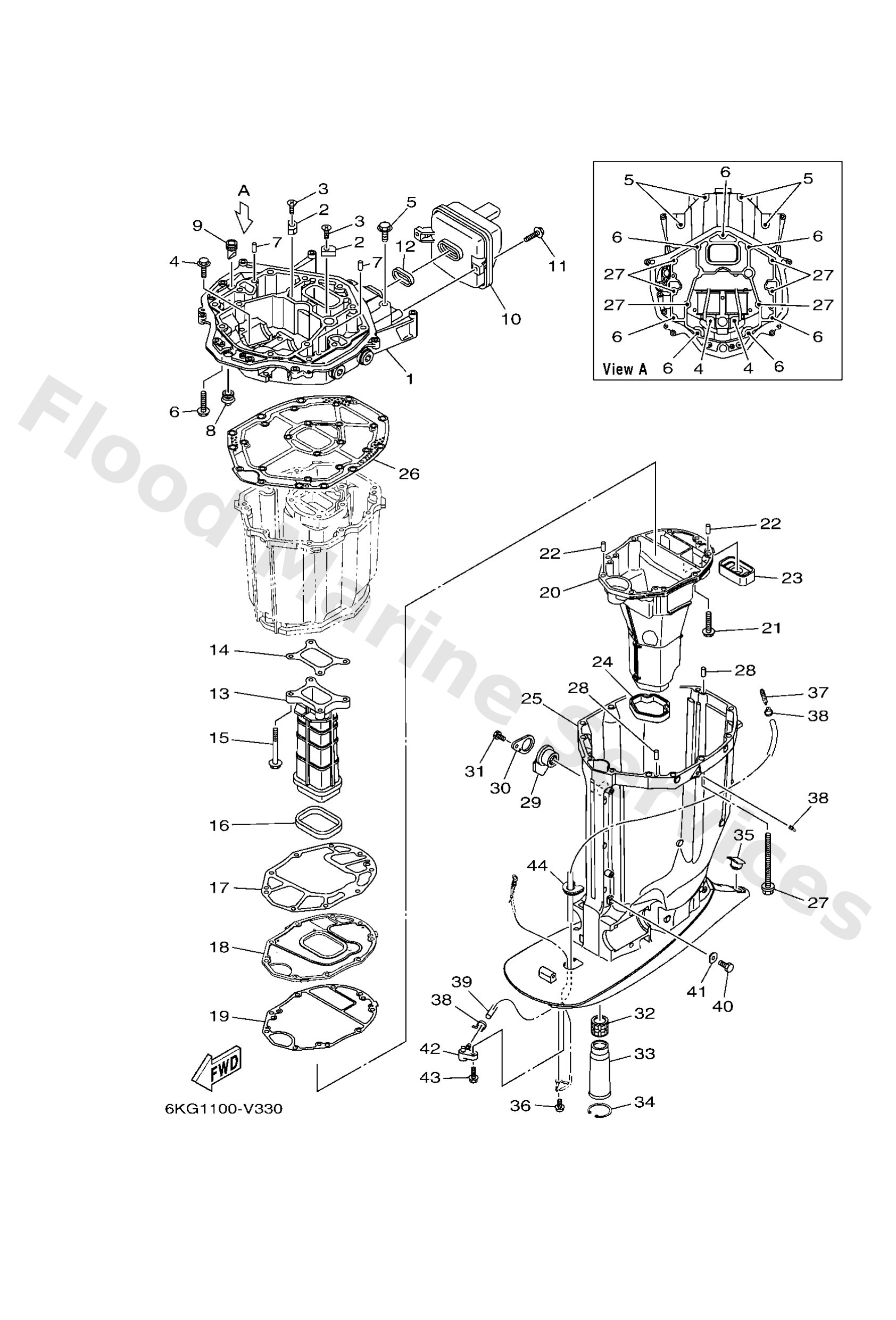

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6CE4113701
Guide, exhaust
Loading…
↗
2
63P1132511
Anode
Loading…
↗
3
9015106M02
Screw, countersunk
Loading…
↗
4
9011908182
Bolt, with washer
Loading…
↗
5
97E7510545
Bolt, hexagon w/w deep recess
Loading…
↗
6
97E7510535
Bolt, hexagon w/w deep recess
Loading…
↗
7
9360816M16
Pin, dowel(6t4)
Loading…
↗
8
6E54272401
Grommet
Loading…
↗
9
61A4271700
Rubber, seal 2
Loading…
↗
10
6CB14750A0
Silencer assembly
Loading…
↗
11
95D9506020
Bolt, flange deep recess
Loading…
↗
12
6CB1475501
Gasket, silencer
Loading…
↗
13
6CB4113201
Manifold, exhaust
Loading…
↗
14
6CB4113400
Gasket, exhaust manifold
Loading…
↗
15
97E7508560
Bolt, hexagon w/w deep recess
Loading…
↗
16
6CB4113800
Seal, ext. 1
Loading…
↗
17
6CB4113500
Gasket, exhaust manifold
Loading…
↗
18
6KA4518100
Plate
Loading…
↗
19
6CE4113600
Gasket, exhaust manifold 4
Loading…
↗
20
6KA1471100
Muffler 1
Loading…
↗
21
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
22
9360619M23
Pin, dowel
Loading…
↗
23
6CE4512700
Seal
Loading…
↗
24
6CE4512300
Gasket, muffler
Loading…
↗
25
6KA45111018D
Casing, upper
Loading…
↗
26
6CB4511310
Gasket, upper casing
Loading…
↗
27
9011910007
Bolt, with washer
Loading…
↗
29
6BB1531601
Damper 1
Loading…
↗
30
6BB4515201
Cover, upper casing 2
Loading…
↗
31
97D9506012
Bolt, hexagon deep recess
Loading…
↗
32
69J4531801
Bushing, drive shaft
Loading…
↗
33
6KA4615300
Collar, guide
Loading…
↗
34
9342050093
Circlip
Loading…
↗
35
61A4515501
Cap
Loading…
↗
36
95D9506010
Bolt, flange deep recess
Loading…
↗
37
6E58355800
End, nipple
Loading…
↗
38
9046511M10
Clamp
Loading…
↗
39
6KF4689400
Hose
Loading…
↗
40
97D9506010
Bolt, hexagon deep recess
Loading…
↗
41
9020106M02
Washer,plate (6k8)
Loading…
↗
42
63P4537900
Nipple, hose
Loading…
↗
43
9011906287
Bolt, with washer
Loading…
↗
44
6KA4452100
Seal
Loading…
↗
