FL250BET (2009)
UPPER CASING

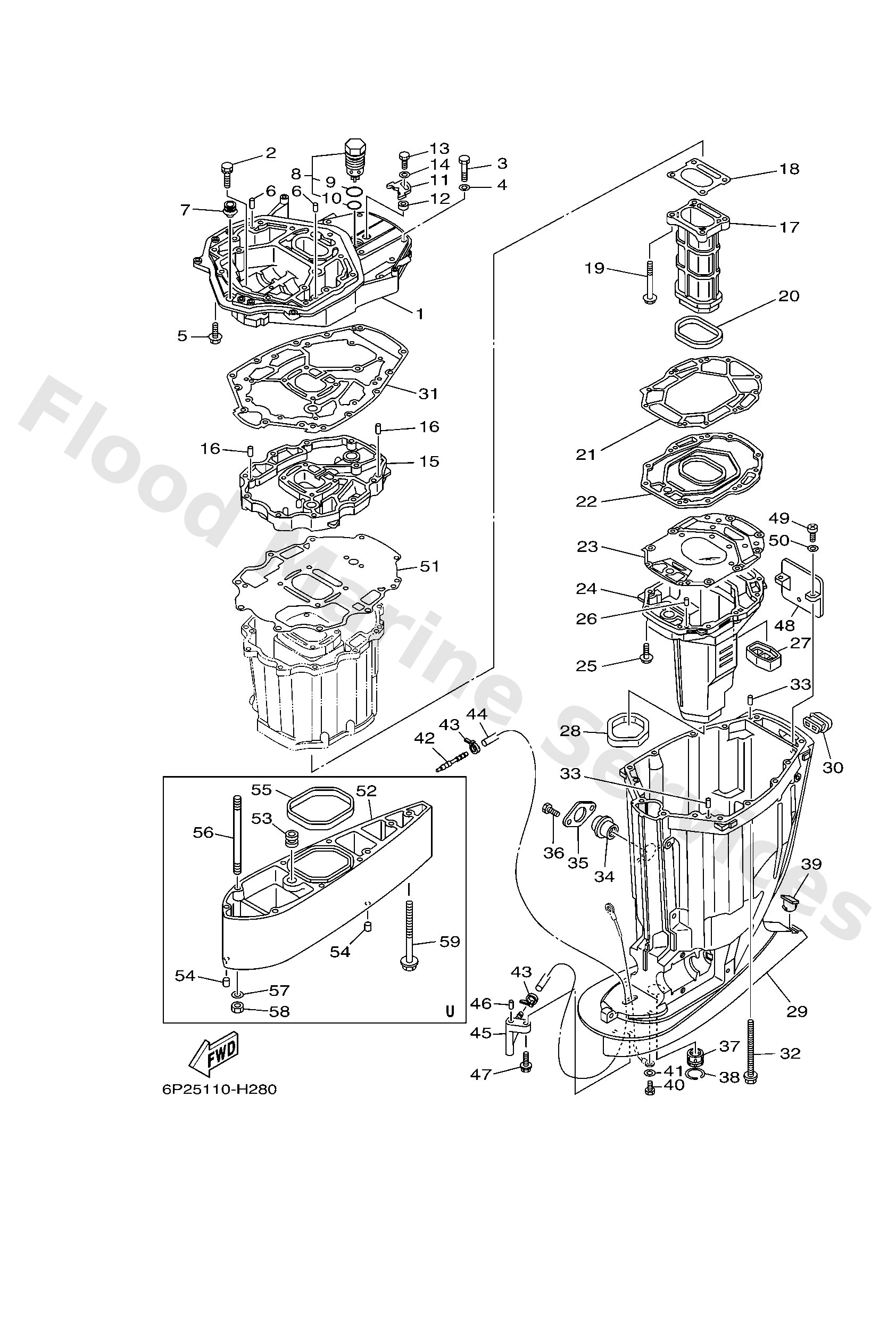

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69J4113710CA
Guide, exhaust
Loading…
↗
2
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
3
9707510045
Bolt(64d)
Loading…
↗
4
9299510600
Washer, plate
Loading…
↗
5
9757510535
Bolt, hexagon w/w deep recess
Loading…
↗
6
9360816M16
Pin, dowel(6t4)
Loading…
↗
7
6E54272400
Grommet
Loading…
↗
8
6AW1137110
Pressure control valve assembly
Loading…
↗
9
93210347A1
O-ring
Loading…
↗
10
9321028543
O-ring(72f)
Loading…
↗
11
69J1223300
Plate, guide stopper 1
Loading…
↗
12
9038706037
Collar 8121444900
Loading…
↗
13
9709506020
Bolt(7u8)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
69J4113110CA
Manifold, ext. 1
Loading…
↗
17
69J41132209S
Manifold, exhaust
Loading…
↗
18
6P24113400
Gasket, exhaust manifold
Loading…
↗
19
9757508590
Bolt, hexagon w/w deep recess
Loading…
↗
20
69J4113800
Seal, ext. 1
Loading…
↗
21
69J41135A0
Gasket, exhaust manifold
Loading…
↗
22
69J45181109S
Plate
Loading…
↗
23
6S14113600
Gasket, exhaust manifold 4
Loading…
↗
24
69J14711209S
Muffler 1
Loading…
↗
25
9757508535
Bolt(70w)
Loading…
↗
26
9360619M23
Pin, dowel
Loading…
↗
27
69J4512700
Seal
Loading…
↗
28
69J4512300
Gasket, muffler
Loading…
↗
29
69J45111108D
Casing, upper
Loading…
↗
30
69J4276900
Seal, rubber
Loading…
↗
31
69J4511320
Gasket, upper casing
Loading…
↗
32
9011910007
Bolt, with washer
Loading…
↗
34
69J1531600
Damper 1
Loading…
↗
35
69J4515210
Cover, upper casing 2
Loading…
↗
36
9010106055
Bolt
Loading…
↗
37
69J4531801
Bushing, drive shaft
Loading…
↗
38
9342036M01
Circlip (6a0)
Loading…
↗
39
61A4515500
Cap
Loading…
↗
40
9709506010
Bolt
Loading…
↗
42
6E58355800
End, nipple
Loading…
↗
43
9046511M10
Clamp
Loading…
↗
44
9044507010
X(25.3")
Hose (l1457)
Loading…
↗
44
9044507012
U(30.3")
Hose (l1457)
Loading…
↗
45
61A4537800
Nipple, hose
Loading…
↗
46
9360612019
Pin, dowel (614)
Loading…
↗
47
9011906M17
Bolt, with washer
Loading…
↗
48
69J1462401
Cover, exhaust
Loading…
↗
49
9788006016
Screw pan head
Loading…
↗
50
9299006600
Washer, plain (646)
Loading…
↗
51
69J1531201
Gasket, oil pan
Loading…
↗
52
69J45211018D
U(30.3")
Extension
Loading…
↗
53
6E54436600
U(30.3")
Damper, water seal 2
Loading…
↗
54
9360812M05
U(30.3")
Pin, dowel b (6e5)
Loading…
↗
55
69J4515900
U(30.3")
Damper
Loading…
↗
56
9011610041
U(30.3")
Bolt, stud
Loading…
↗
57
9020110048
U(30.3")
Washer, plate
Loading…
↗
58
9017010009
U(30.3")
Nut
Loading…
↗
59
9011910009
U(30.3")
Bolt, with washer
Loading…
↗
