Yamaha Outboard Parts - UPPER CASING - FL250BET (2011) | Flood Marine

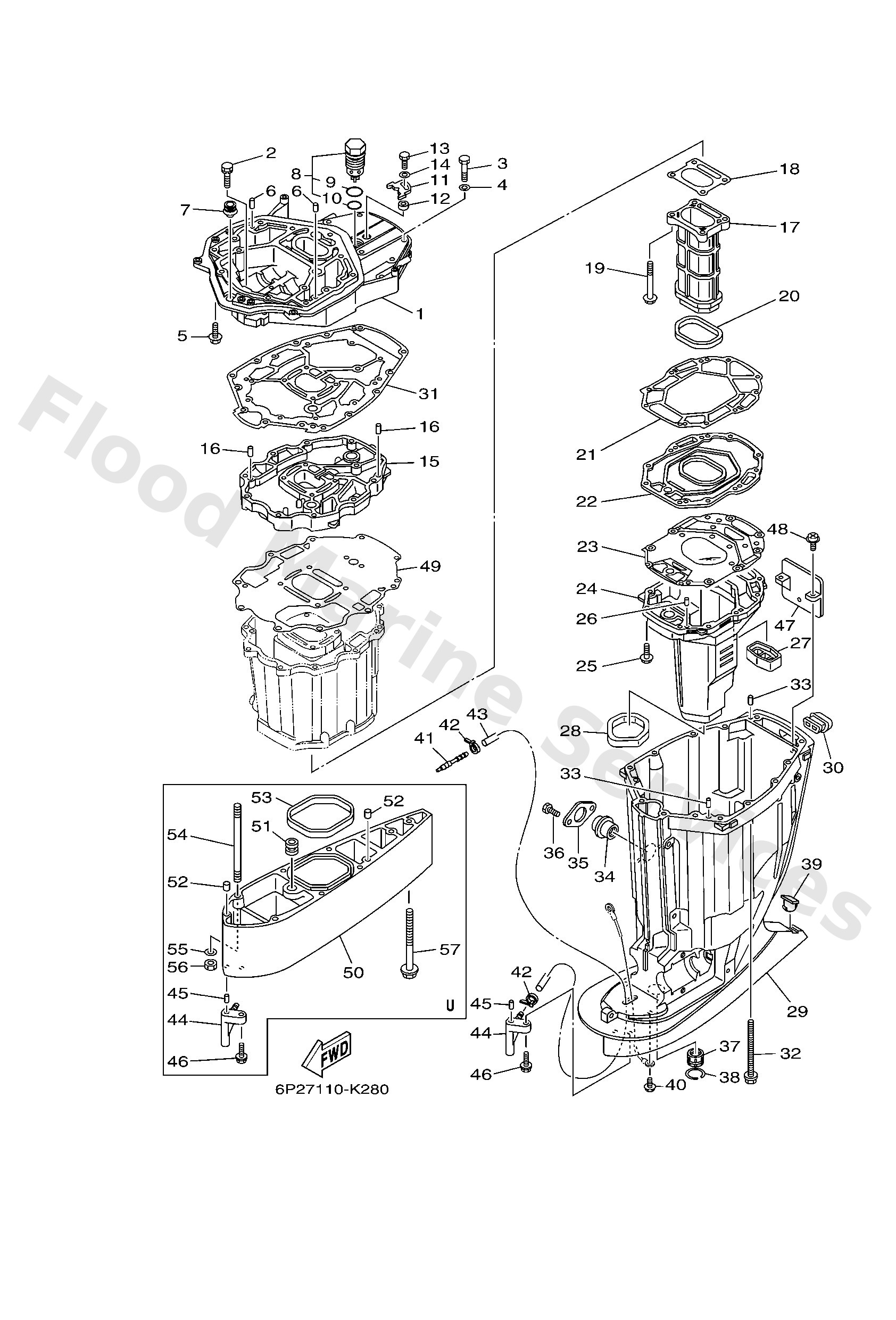

Diagram: UPPER CASING

Diagram

Parts List

Reference
Description
Price


1
69J4113710CA
Guide, exhaust
Loading…

↗
2
9011908102
Bolt, with washer
Loading…

↗
3
9707510045
Bolt(64d)
Loading…

↗
55
9299510600 U(30.3")
Washer, plate
Loading…

↗
5
9757510535
Bolt, hexagon w/w deep recess
Loading…

↗
6
9360816M16
Pin, dowel(6t4)
Loading…

↗
7
6E54272400
Grommet
Loading…

↗
8
6AW1137110
Pressure control valve assembly
Loading…

↗
9
93210347A1
O-ring
Loading…

↗
10
9321028543
O-ring(72f)
Loading…

↗
11
69J1223300
Plate, guide stopper 1
Loading…

↗
12
9038706037
Collar 8121444900
Loading…

↗
13
9709506020
Bolt(7u8)
Loading…

↗
14
9299506600
Washer, plain (646)
Loading…

↗
15
69J4113111CA
Manifold, ext. 1
Loading…

↗
17
69J41132209S
Manifold, exhaust
Loading…

↗
18
6P24113400
Gasket, exhaust manifold
Loading…

↗
19
9757508590
Bolt, hexagon w/w deep recess
Loading…

↗
20
69J4113800
Seal, ext. 1
Loading…

↗
21
69J41135A0
Gasket, exhaust manifold
Loading…

↗
22
69J45181109S
Plate
Loading…

↗
23
6S14113600
Gasket, exhaust manifold 4
Loading…

↗
24
69J14711209S
Muffler 1
Loading…

↗
25
9757508535
Bolt(70w)
Loading…

↗
26
9360619M23
Pin, dowel
Loading…

↗
27
69J4512700
Seal
Loading…

↗
28
69J4512300
Gasket, muffler
Loading…

↗
29
69J45111108D
Casing, upper
Loading…

↗
30
69J4276900
Seal, rubber
Loading…

↗
31
69J4511320
Gasket, upper casing
Loading…

↗
32
9011910007
Bolt, with washer
Loading…

↗
34
69J1531600
Damper 1
Loading…

↗
35
69J4515210
Cover, upper casing 2
Loading…

↗
36
9709506014
Bolt(gj3)
Loading…

↗
37
69J4531801
Bushing, drive shaft
Loading…

↗
38
9342036M01
Circlip (6a0)
Loading…

↗
39
61A4515500
Cap
Loading…

↗
40
9589506010
Bolt, flange(7ht)
Loading…

↗
41
6E58355800
End, nipple
Loading…

↗
42
9046511M10
Clamp
Loading…

↗
43
9044507010 X(25.3")
Hose (l1457)
Loading…

↗
43
9044507012 U(30.3")
Hose (l1457)
Loading…

↗
44
61A4537800
Nipple, hose
Loading…

↗
45
9360612019
Pin, dowel (614)
Loading…

↗
46
9011906M17
Bolt, with washer
Loading…

↗
47
69J1462401
Cover, exhaust
Loading…

↗
48
9798006216
Screw, with washer(6h2)
Loading…

↗
49
69J1531201
Gasket, oil pan
Loading…

↗
50
69J45211028D U(30.3")
Extension
Loading…

↗
51
6E54436600 U(30.3")
Damper, water seal 2
Loading…

↗
52
9360812M05 U(30.3")
Pin, dowel b (6e5)
Loading…

↗
53
69J4515900 U(30.3")
Damper
Loading…

↗
54
9011610012 U(30.3")
Bolt, stud
Loading…

↗
56
9538010600 U(30.3")
Nut(624)
Loading…

↗
57
9011910009 U(30.3")
Bolt, with washer
Loading…

↗
