FL250DET (2013)
UPPER CASING

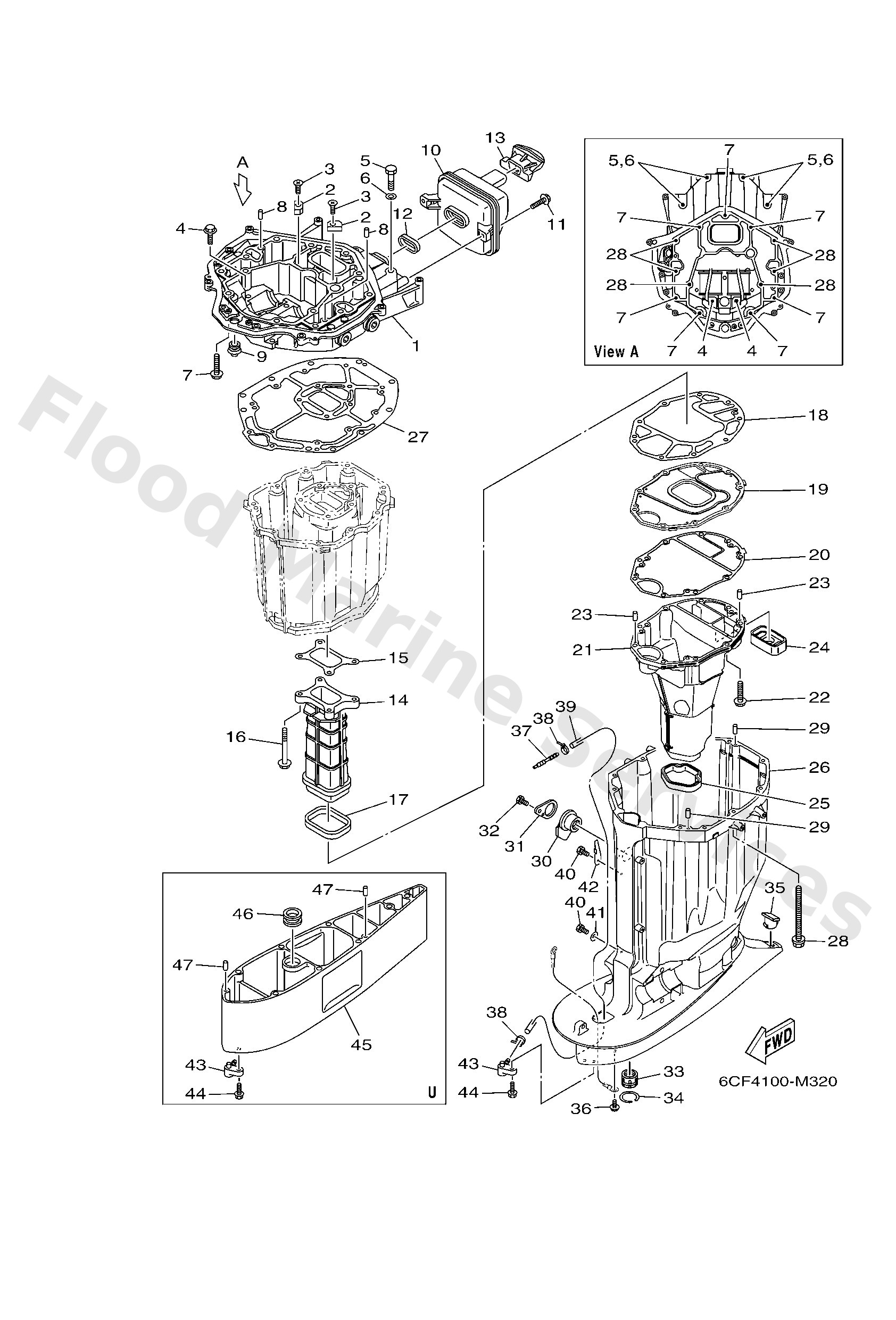

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6CE4113700CA
Guide, exhaust
Loading…
↗
2
63P1132511
Anode
Loading…
↗
3
9015106M02
Screw, countersunk
Loading…
↗
4
9011908102
Bolt, with washer
Loading…
↗
5
9707510045
Bolt(64d)
Loading…
↗
6
9299510600
Washer, plate
Loading…
↗
7
9757510535
Bolt, hexagon w/w deep recess
Loading…
↗
47
9360816M16
U(30.3")
Pin, dowel(6t4)
Loading…
↗
9
6E54272400
Grommet
Loading…
↗
10
6CB1475000
Silencer assembly
Loading…
↗
11
9587506020
Bolt, flange(jk3)
Loading…
↗
12
6CB1475500
Gasket, silencer
Loading…
↗
13
6CB4276901
Seal, rubber
Loading…
↗
14
6CB41132009S
Manifold, exhaust
Loading…
↗
15
6CB4113400
Gasket, exhaust manifold
Loading…
↗
16
9757508560
Bolt, hexagon w/w deep recess
Loading…
↗
17
6CB4113800
Seal, ext. 1
Loading…
↗
18
6CB4113500
Gasket, exhaust manifold
Loading…
↗
19
6CE45181009S
Plate
Loading…
↗
20
6CE4113600
Gasket, exhaust manifold 4
Loading…
↗
21
6CE14711009S
Muffler 1
Loading…
↗
22
9757508535
Bolt(70w)
Loading…
↗
23
9360619M23
Pin, dowel
Loading…
↗
24
6CE4512700
Seal
Loading…
↗
25
6CE4512300
Gasket, muffler
Loading…
↗
26
6CE45111008D
Casing, upper
Loading…
↗
27
6CB4511300
Gasket, upper casing
Loading…
↗
28
9011910007
Bolt, with washer
Loading…
↗
30
6BB1531600
Damper 1
Loading…
↗
31
6BB4515201
Cover, upper casing 2
Loading…
↗
32
9709506012
Bolt(gh1)
Loading…
↗
33
69J4531801
Bushing, drive shaft
Loading…
↗
34
9342036M01
Circlip (6a0)
Loading…
↗
35
61A4515500
Cap
Loading…
↗
36
9589506010
Bolt, flange(7ht)
Loading…
↗
37
6E58355800
EXCEPT FOR LAN
End, nipple
Loading…
↗
38
9046511M10
EXCEPT FOR LAN
Clamp
Loading…
↗
39
9044507034
X(25.3") FOR LAN
Hose
Loading…
↗
39
9044507032
X(25.3")
Hose
Loading…
↗
39
9044507043
U(30.3") FOR LAN
Hose (L2600)
Loading…
↗
39
9044507033
U(30.3")
Hose
Loading…
↗
40
9709506010
Bolt
Loading…
↗
41
9020106M02
Washer,plate (6k8)
Loading…
↗
42
9046210061
Clamp
Loading…
↗
43
63P4537900
Nipple, hose
Loading…
↗
44
9011906M18
Bolt, with washer(61n)
Loading…
↗
45
6CE45211008D
U(30.3")
Extension
Loading…
↗
46
6AW4436600
U(30.3")
Damper, water seal 2
Loading…
↗
