FL350AET (2012)
UPPER CASING

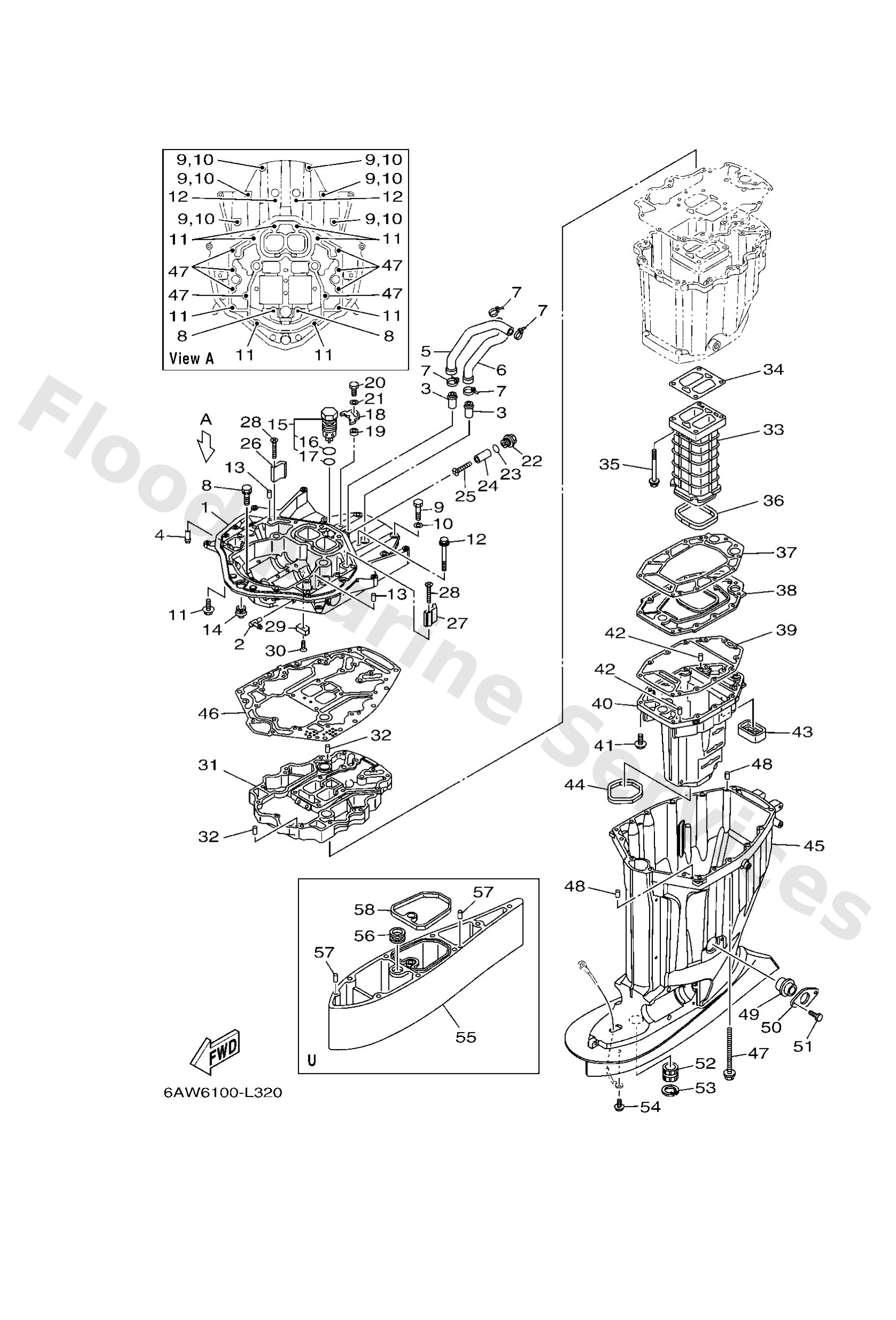

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6AW4113711CA
Guide, exhaust
Loading…
↗
2
6H11137200
Nipple, hose
Loading…
↗
3
6AW1475G00
Pipe 4
Loading…
↗
4
6AW1475J00
Pipe
Loading…
↗
5
6AW1244H00
Hose 5
Loading…
↗
6
6AW1243F00
Hose,3
Loading…
↗
7
9046511M59
Clamp(63m)
Loading…
↗
8
9011908102
Bolt, with washer
Loading…
↗
9
9707510045
Bolt(64d)
Loading…
↗
10
9299510600
Washer, plate
Loading…
↗
11
9011910040
Bolt, with washer
Loading…
↗
12
9757510585
Bolt, hexagon w/w deep recess
Loading…
↗
13
9360816M16
Pin, dowel(6t4)
Loading…
↗
14
6AW4272400
Grommet
Loading…
↗
15
6AW1137110
Pressure control valve assembly
Loading…
↗
16
93210347A1
O-ring
Loading…
↗
17
9321028543
O-ring(72f)
Loading…
↗
18
69J1223300
Plate, guide stopper 1
Loading…
↗
19
9038706037
Collar 8121444900
Loading…
↗
20
9709506020
Bolt(7u8)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
6AW1119700
Plug, blind
Loading…
↗
23
9321019758
O-ring(m01)
Loading…
↗
24
6AW1132S00
Anode 7
Loading…
↗
25
9878005550
Screw, flat head
Loading…
↗
26
6AW1132T00
Anode 8
Loading…
↗
27
6AW1132U00
Anode 9
Loading…
↗
29
63P1132511
Anode
Loading…
↗
30
9015106M02
Screw, countersunk
Loading…
↗
31
6AW4113101CA
Manifold, ext. 1
Loading…
↗
33
6AW41132009S
Manifold, exhaust
Loading…
↗
34
6AW4113402
Gasket, exhaust manifold
Loading…
↗
35
9011908117
Bolt, with washer
Loading…
↗
36
6AW4113800
Seal, ext. 1
Loading…
↗
37
6AW4113500
Gasket, exhaust manifold
Loading…
↗
38
6AW45181019S
Plate
Loading…
↗
39
6AW4113600
Gasket, exhaust manifold 4
Loading…
↗
40
6AW14711009S
Muffler 1
Loading…
↗
41
9757508535
Bolt(70w)
Loading…
↗
42
9360619M23
Pin, dowel
Loading…
↗
43
6AW4512700
Seal
Loading…
↗
44
69J4512300
Gasket, muffler
Loading…
↗
45
6AW45111108D
Casing, upper
Loading…
↗
46
6AW4511300
Gasket, upper casing
Loading…
↗
47
9011910007
Bolt, with washer
Loading…
↗
49
69J1531600
Damper 1
Loading…
↗
50
69J4515210
Cover, upper casing 2
Loading…
↗
51
9709506014
Bolt(gj3)
Loading…
↗
52
6AW4531800
Bushing, drive shaft
Loading…
↗
53
9342038091
Circlip
Loading…
↗
54
9589506010
Bolt, flange(7ht)
Loading…
↗
55
6AW45211108D
U(30.1")
Extension
Loading…
↗
56
6AW4436600
U(30.1")
Damper, water seal 2
Loading…
↗
57
9360812M05
U(30.1")
Pin, dowel b (6e5)
Loading…
↗
58
6AW4515900
U(30.1")
Damper
Loading…
↗
