Yamaha Outboard Parts - UPPER CASING - FL350AET (2017) | Flood Marine

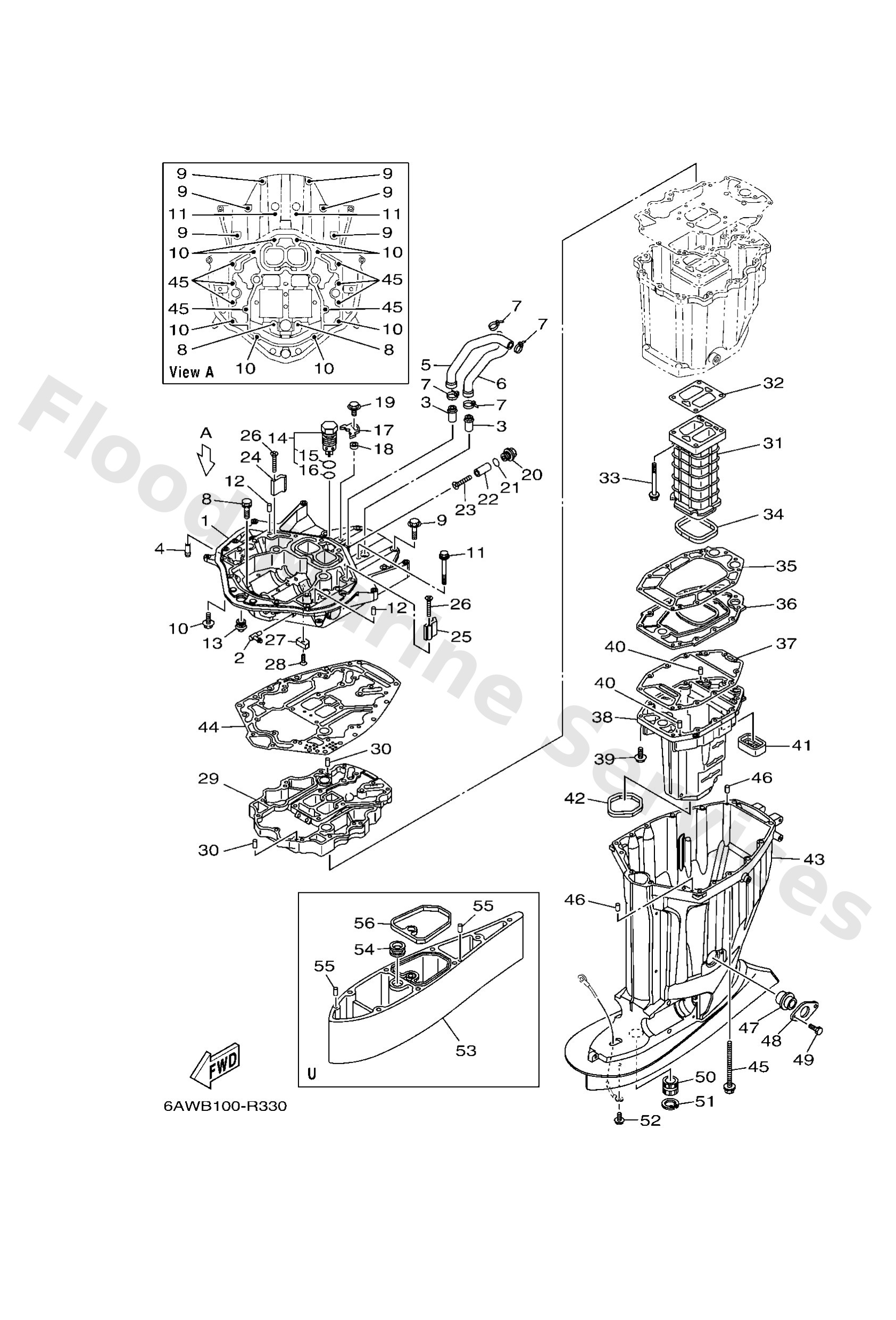

Diagram: UPPER CASING

Diagram

Parts List

Reference
Description
Price


1
6AW4113711CA
Guide, exhaust
Loading…

↗
2
6H11137200
Nipple, hose
Loading…

↗
3
6AW1475G00
Pipe 4
Loading…

↗
4
6AW1475J00
Pipe
Loading…

↗
5
6AW1244H00
Hose 5
Loading…

↗
6
6AW1243F00
Hose,3
Loading…

↗
7
9046511M59
Clamp(63m)
Loading…

↗
8
9011908102
Bolt, with washer
Loading…

↗
9
9757510545
Bolt, hexagon w/w deep recess
Loading…

↗
10
9011910040
Bolt, with washer
Loading…

↗
11
9757510585
Bolt, hexagon w/w deep recess
Loading…

↗
12
9360816M16
Pin, dowel(6t4)
Loading…

↗
13
6AW4272400
Grommet
Loading…

↗
14
6AW1137110
Pressure control valve assembly
Loading…

↗
15
93210347A1
O-ring
Loading…

↗
16
9321028543
O-ring(72f)
Loading…

↗
17
69J1223300
Plate, guide stopper 1
Loading…

↗
18
9038706037
Collar 8121444900
Loading…

↗
19
9759506520
Bolt(7u8)
Loading…

↗
20
6AW1119700
Plug, blind
Loading…

↗
21
9321019758
O-ring(m01)
Loading…

↗
22
6AW1132S00
Anode 7
Loading…

↗
23
9878005550
Screw, flat head
Loading…

↗
24
6AW1132T00
Anode 8
Loading…

↗
25
6AW1132U00
Anode 9
Loading…

↗
27
63P1132511
Anode
Loading…

↗
28
9015106M02
Screw, countersunk
Loading…

↗
29
6AW4113101CA
Manifold, ext. 1
Loading…

↗
31
6AW41132009S
Manifold, exhaust
Loading…

↗
32
6AW4113402
Gasket, exhaust manifold
Loading…

↗
33
9011908117
Bolt, with washer
Loading…

↗
34
6AW4113800
Seal, ext. 1
Loading…

↗
35
6AW4113500
Gasket, exhaust manifold
Loading…

↗
36
6AW45181019S
Plate
Loading…

↗
37
6AW4113600
Gasket, exhaust manifold 4
Loading…

↗
38
6AW14711009S
Muffler 1
Loading…

↗
39
9757508535
Bolt(70w)
Loading…

↗
40
9360619M23
Pin, dowel
Loading…

↗
41
6AW4512700
Seal
Loading…

↗
42
69J4512300
Gasket, muffler
Loading…

↗
43
6AW45111108D
Casing, upper
Loading…

↗
44
6AW4511300
Gasket, upper casing
Loading…

↗
45
9011910007
Bolt, with washer
Loading…

↗
47
69J1531600
Damper 1
Loading…

↗
48
69J4515210
Cover, upper casing 2
Loading…

↗
49
9709506012
Bolt(gh1)
Loading…

↗
50
6AW4531800
Bushing, drive shaft
Loading…

↗
51
9342038091
Circlip
Loading…

↗
52
9589506010
Bolt, flange(7ht)
Loading…

↗
53
6AW45211108D U(30.1")
Extension
Loading…

↗
54
6AW4436600 U(30.1")
Damper, water seal 2
Loading…

↗
55
9360812M05 U(30.1")
Pin, dowel b (6e5)
Loading…

↗
56
6AW4515900 U(30.1")
Damper
Loading…

↗
