FT25BET (2003)
UPPER CASING

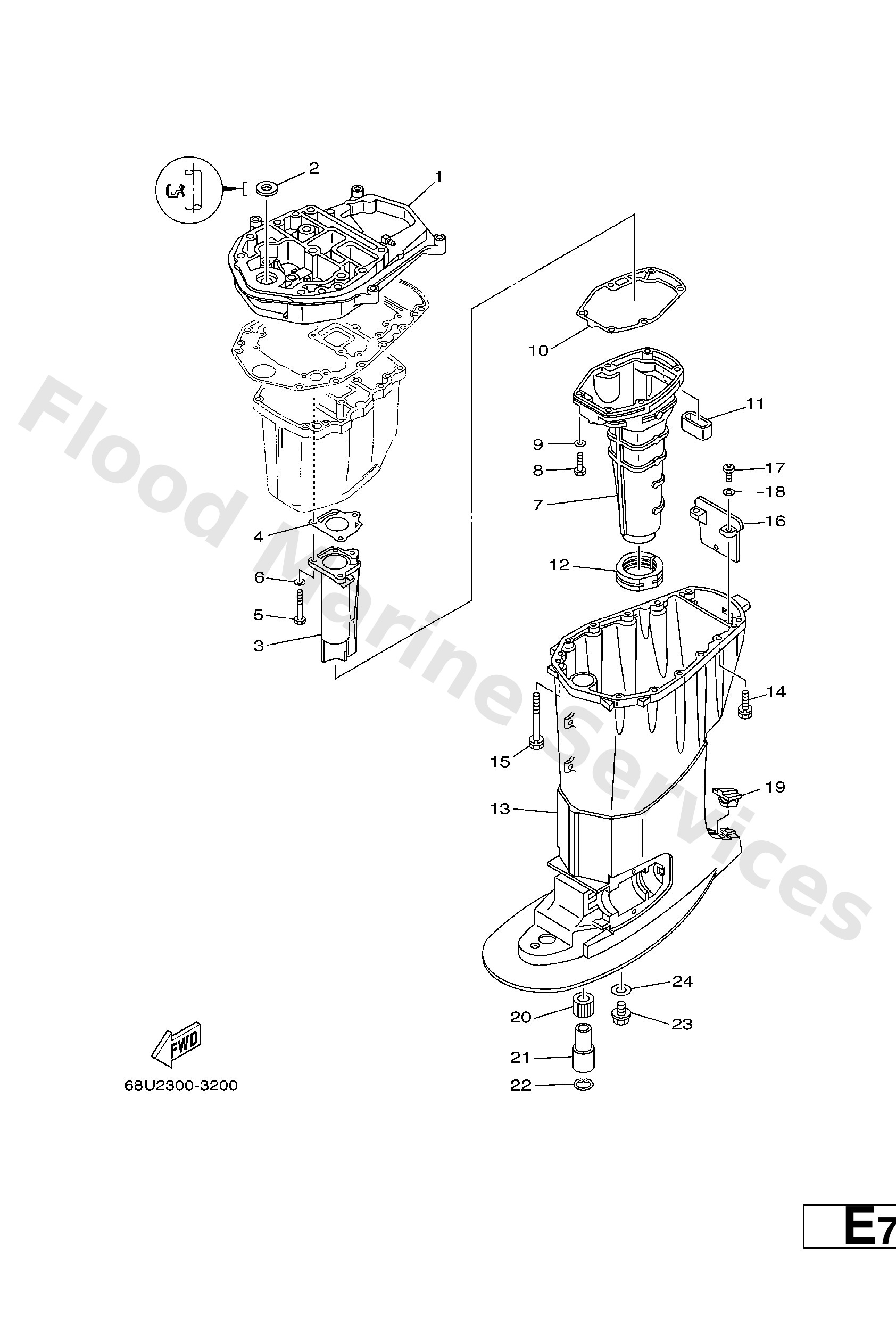

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
68U−41137−01−94
Guide, exhaust
Loading…
↗
2
93110−16004
Oil seal
Loading…
↗
3
68U−41131−00−5B
Manifold, ext. 1
Loading…
↗
4
67C−41133−00
Gasket, exhaust manifold 1
Loading…
↗
5
97075−06050
Bolt(jf7)
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
67C−14711−12−5B
Muffler 1
Loading…
↗
8
97075−06025
Bolt
Loading…
↗
10
62Y−41134−01
Gasket, exhaust manifold
Loading…
↗
11
62Y−45127−00
Seal
Loading…
↗
12
67C−45123−00
Gasket, muffler
Loading…
↗
13
67C−45111−21−4D
Casing, Upper
Loading…
↗
14
90119−08M79
Bolt, hexagon (fj1)
Loading…
↗
15
90119−08M80
Bolt, with washer(688)
Loading…
↗
16
67C−45151−00
Cover, upper casing
Loading…
↗
17
97880−05016
Screw, pan head(6b0)
Loading…
↗
18
92990−05600
Washer, plain (646)
Loading…
↗
19
6H3−45155−00
Cap
Loading…
↗
20
679−45318−00
Bushing, drive shaft 3
Loading…
↗
21
90387−23002
Collar
Loading…
↗
22
93420−36M01
Circlip (6a0)
Loading…
↗
23
90340−14M06
Plug, straight screw(62y)
Loading…
↗
24
90430−14M09
Gasket
Loading…
↗
