FT25BET (2005)
UPPER CASING

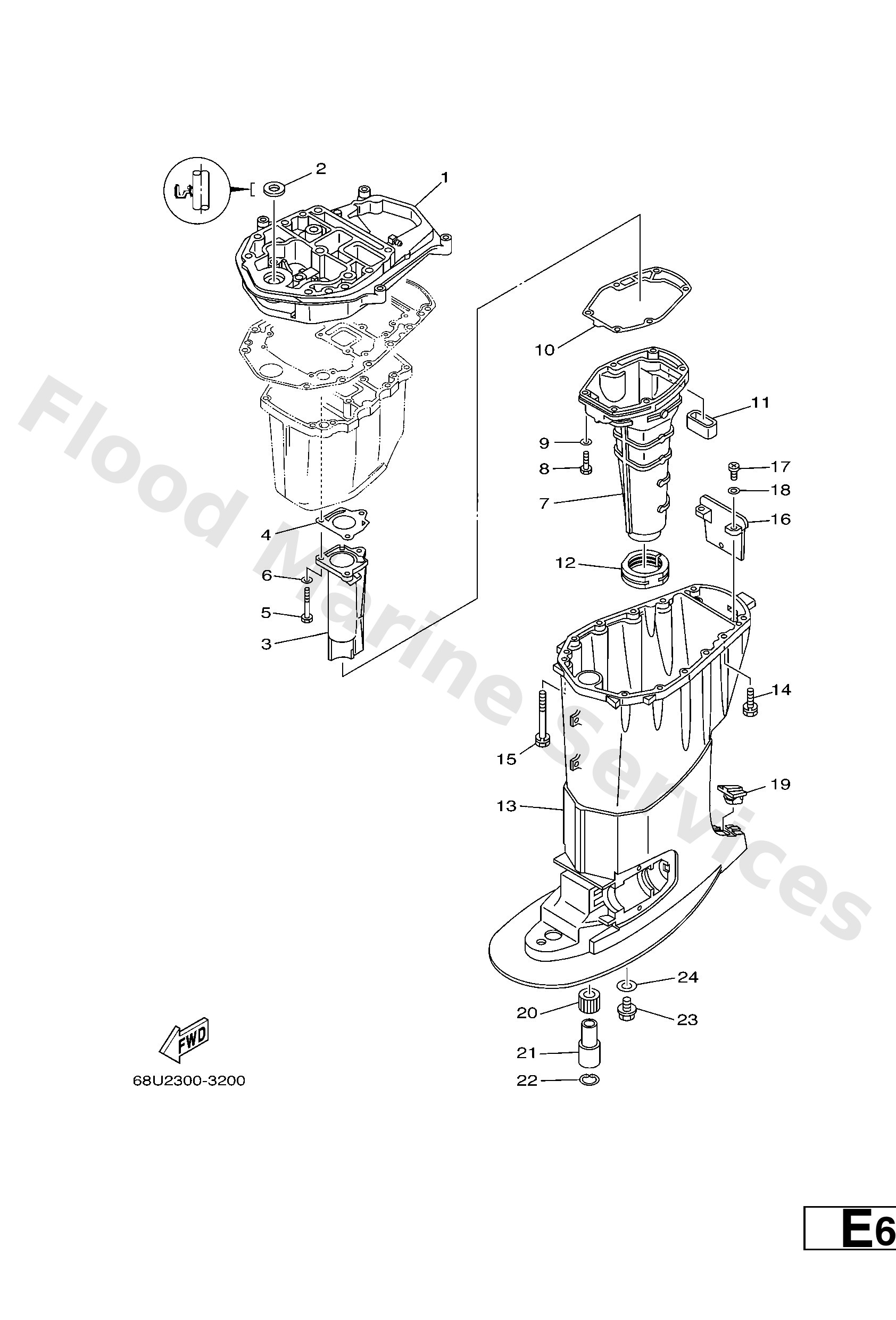

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
68U411370194
Guide, exhaust
Loading…
↗
2
9311016004
Oil seal
Loading…
↗
3
68U41131005B
Manifold, ext. 1
Loading…
↗
4
67C4113300
Gasket, exhaust manifold 1
Loading…
↗
5
9707506050
Bolt(jf7)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
67C14711125B
Muffler 1
Loading…
↗
8
9707506025
Bolt
Loading…
↗
10
62Y4113401
Gasket, exhaust manifold
Loading…
↗
11
62Y4512700
Seal
Loading…
↗
12
67C4512300
Gasket, muffler
Loading…
↗
13
67C45111214D
Casing, Upper
Loading…
↗
14
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
15
9011908M80
Bolt, with washer(688)
Loading…
↗
16
67C4515100
Cover, upper casing
Loading…
↗
17
9788005016
Screw, pan head(6b0)
Loading…
↗
18
9299005600
Washer, plain (646)
Loading…
↗
19
6H34515500
Cap
Loading…
↗
20
6794531800
Bushing, drive shaft 3
Loading…
↗
21
9038723002
Collar
Loading…
↗
22
9342036M01
Circlip (6a0)
Loading…
↗
23
9034014M06
Plug, straight screw(62y)
Loading…
↗
24
9043014M09
Gasket
Loading…
↗
