FT25FET (2020)
UPPER CASING

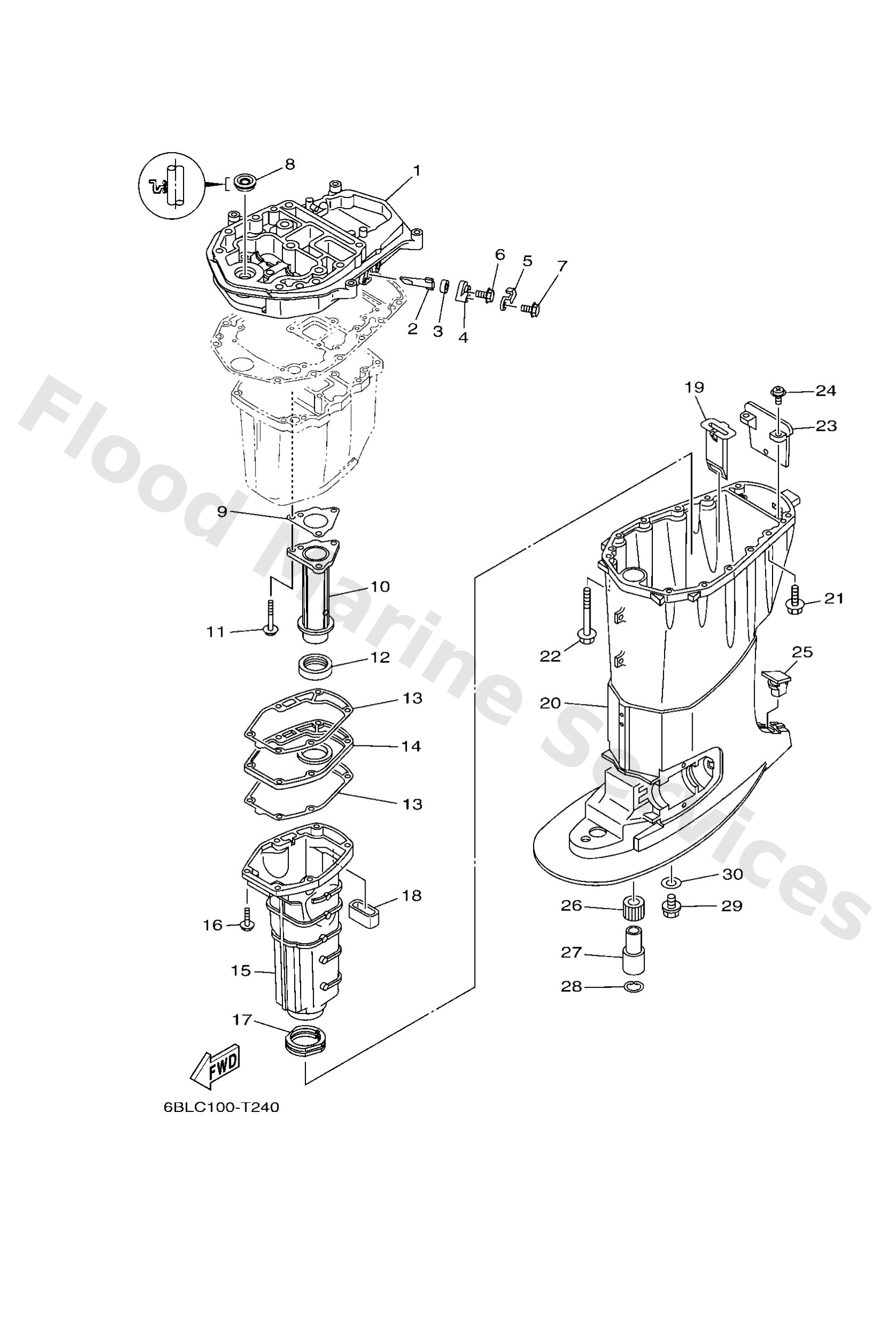

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
67C4113720CA
Guide, exhaust
Loading…
↗
2
62Y1132500
Anode
Loading…
↗
3
66M1132800
Grommet, anode
Loading…
↗
4
66M113270094
Cover, anode
Loading…
↗
5
66M1253500
Plate
Loading…
↗
6
9759505512
Bolt, hexagon
Loading…
↗
7
9751306520
Bolt, with washer(61b)
Loading…
↗
8
9310316011
Oil seal
Loading…
↗
9
64J4113310
Gasket, exhaust manifold 1
Loading…
↗
10
6BG41131A0CA
Manifold, ext. 1
Loading…
↗
11
97E7506550
Bolt, hexagon w/w deep recess
Loading…
↗
12
64J4613210
Gasket 1
Loading…
↗
13
6BG4113400
Gasket, exhaust manifold
Loading…
↗
14
6BG4518100CA
Plate
Loading…
↗
15
69W1471110CA
Muffler 1
Loading…
↗
16
97E7506525
Bolt, hexagon w/w deep recess
Loading…
↗
17
67C4512300
Gasket, muffler
Loading…
↗
18
62Y4512700
Seal
Loading…
↗
19
64J7712300
Guide 1
Loading…
↗
20
6BG45111108D
Casing, upper
Loading…
↗
21
97E7508530
Bolt, hexagon w/w deep recess
Loading…
↗
22
9011908132
Bolt, with washer
Loading…
↗
23
67C4515100
Cover, upper casing
Loading…
↗
24
9798005216
Screw, pan w/ plain
Loading…
↗
25
6C54515500
Cap
Loading…
↗
26
6794531800
Bushing, drive shaft 3
Loading…
↗
27
9038723002
Collar
Loading…
↗
28
9342036M01
Circlip (6a0)
Loading…
↗
29
9034014M06
Plug, straight screw(62y)
Loading…
↗
30
9043014M09
Gasket
