FT60BET (2005)
UPPER CASING

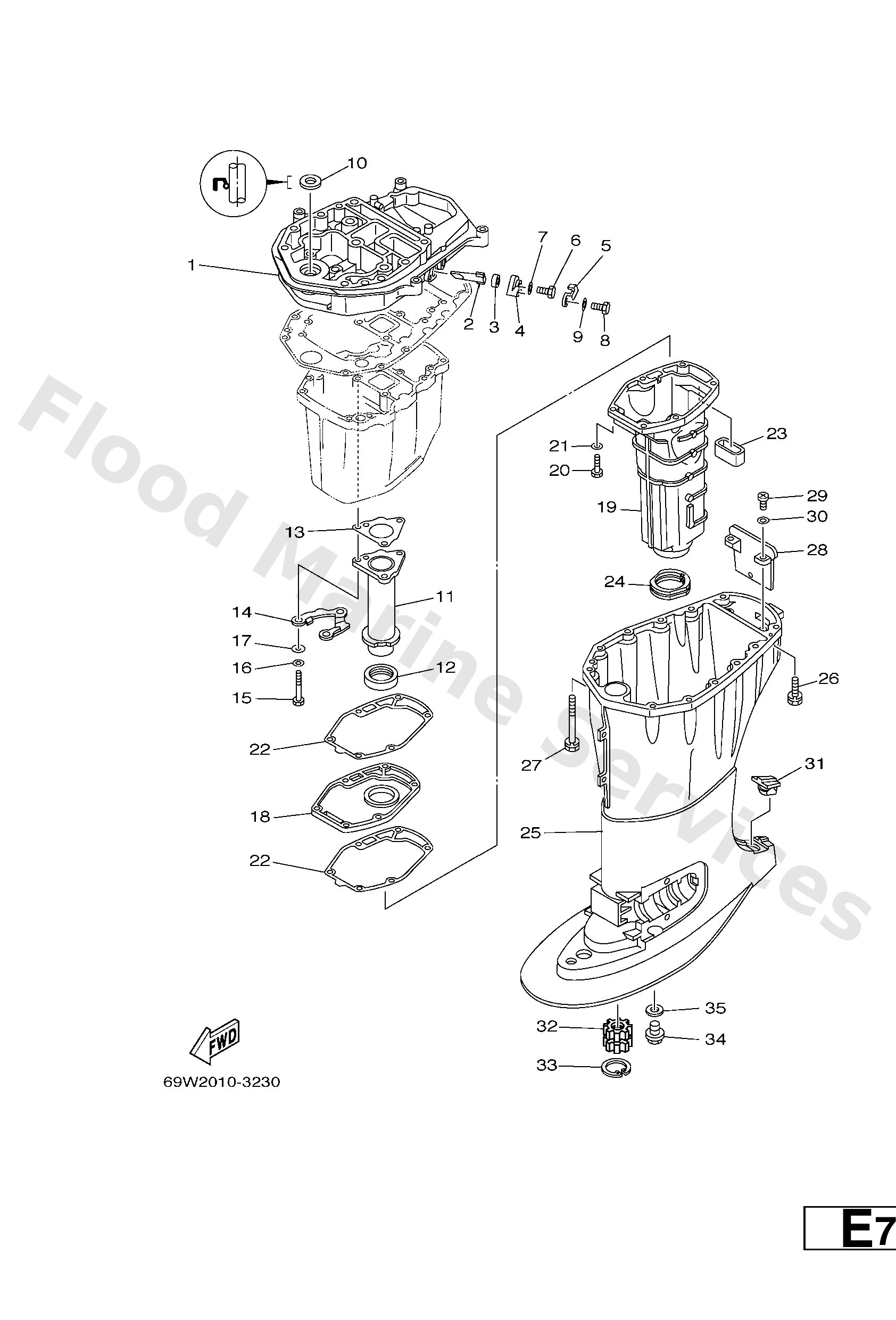

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69W411370194
Guide, Exhaust
Loading…
↗
2
62Y1132500
Anode
Loading…
↗
3
66M1132800
Grommet, anode
Loading…
↗
4
66M113270094
Cover, anode
Loading…
↗
5
66M1253500
Plate
Loading…
↗
6
9709505012
Bolt, hexagon
Loading…
↗
7
9299505600
Washer, plain (646)
Loading…
↗
8
9701306020
Bolt(62y)
Loading…
↗
9
9290306600
Washer, plain (646)
Loading…
↗
10
9310318011
Oil seal
Loading…
↗
11
69W4113100
Manifold, Ext. 1
Loading…
↗
12
64J4613210
Gasket 1
Loading…
↗
13
64J4113310
Gasket, exhaust manifold 1
Loading…
↗
14
64J4111600
Protector
Loading…
↗
15
9707506050
Bolt(jf7)
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
9020106015
Washer, plate
Loading…
↗
18
69W45181005B
Plate
Loading…
↗
19
69W14711005B
Muffler 1
Loading…
↗
20
9707506025
Bolt
Loading…
↗
22
62Y4113401
Gasket, exhaust manifold
Loading…
↗
23
62Y4512700
Seal
Loading…
↗
24
67C4512300
Gasket, muffler
Loading…
↗
25
67C45111214D
Casing, Upper
Loading…
↗
26
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
27
9011908M82
Bolt, with washer(697)
Loading…
↗
28
67C4515100
Cover, upper casing
Loading…
↗
29
9788005016
Screw, pan head(6b0)
Loading…
↗
30
9299005600
Washer, plain (646)
Loading…
↗
31
6H34515500
Cap
Loading…
↗
32
69W4531800
Bushing, drive shaft
Loading…
↗
33
9342036M01
Circlip (6a0)
Loading…
↗
34
9034014M06
Plug, straight screw(62y)
Loading…
↗
35
9043014M09
Gasket
Loading…
↗
