Yamaha Outboard Parts - UPPER CASING - FT8DMH (2003) | Flood Marine

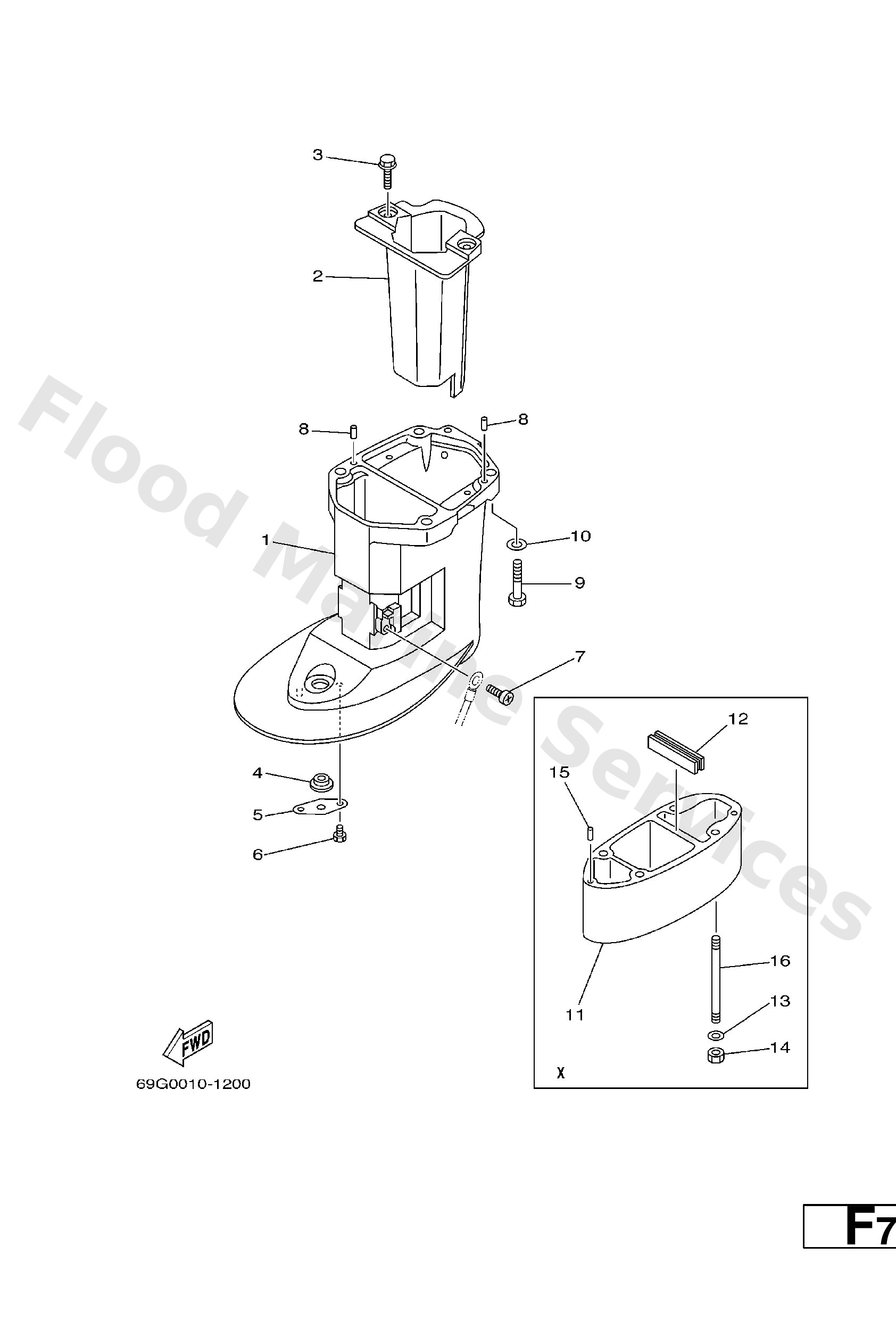

Diagram: UPPER CASING

Diagram

Parts List

Reference
Description
Price


1
68T−45111−10−4D
Casing, upper
Loading…

↗
2
68T−14711−00−5B
Muffler 1
Loading…

↗
3
97575−06514
Bolt, hexagon w/w deep recess
Loading…

↗
4
90480−14M54
Grommet
Loading…

↗
5
68T−45321−00
Plate
Loading…

↗
6
97095−06008
Bolt (fj1)
Loading…

↗
7
97885−05008
Screw, pan head
Loading…

↗
15
93604−12M07 X
Pin, dowel (688)
Loading…

↗
9
97075−08035
Bolt(70w)
Loading…

↗
10
92995−08600
Washer, plain (663)
Loading…

↗
11
69G−45211−20−4D X
Extension
Loading…

↗
12
63V−45127−00 X
Seal
Loading…

↗
13
92990−08600 X
Washer, plain (663)
Loading…

↗
14
95380−08600 X
Nut (661)
Loading…

↗
16
90116−08M62 X
Bolt, stud
Loading…

↗
