FT8DMH (2009)
UPPER CASING

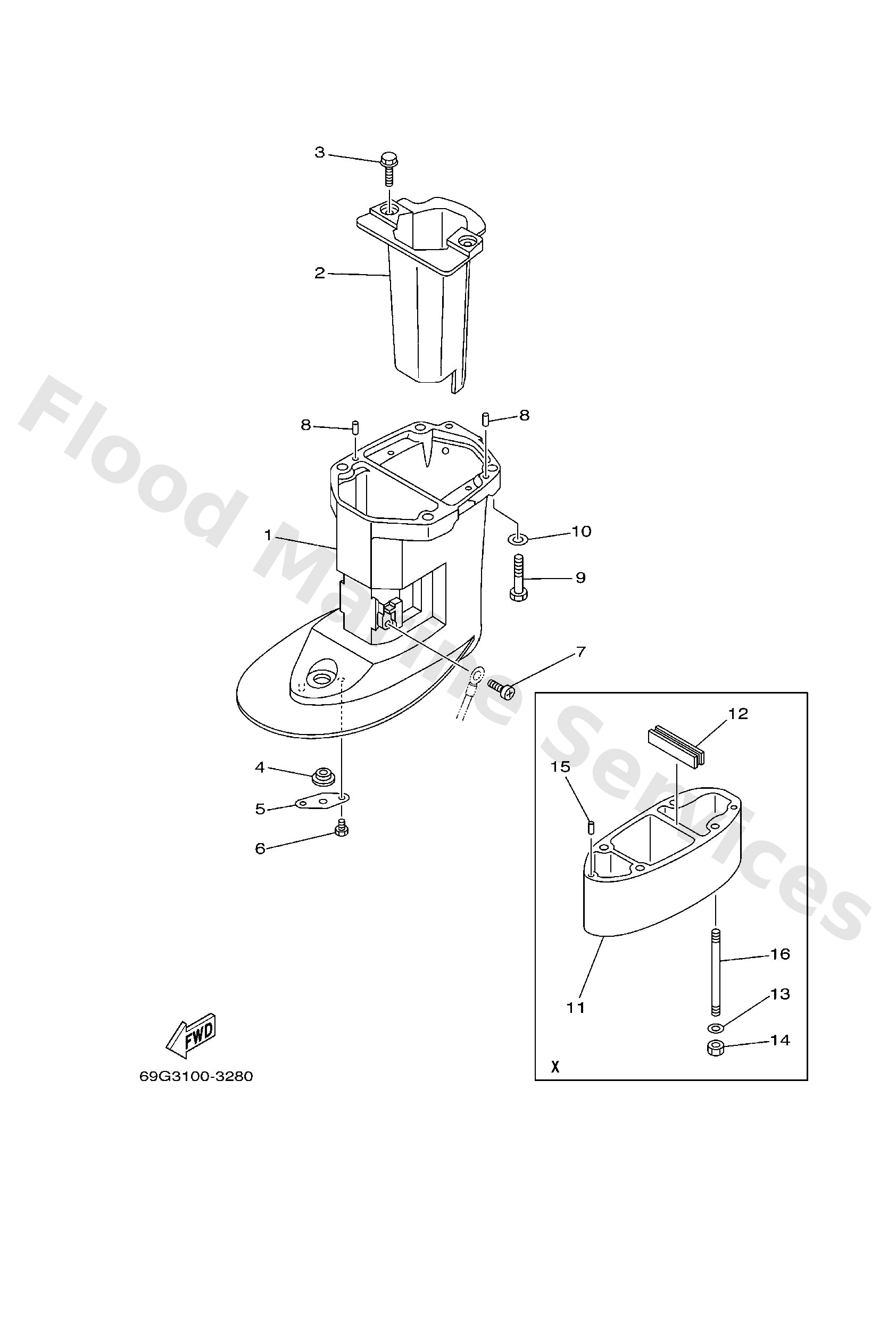

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
60RG5111104D
Casing, upper
Loading…
↗
2
60RE4711005B
Muffler 1
Loading…
↗
3
9757506514
Bolt, hexagon w/w deep recess
Loading…
↗
4
9048014M54
Grommet
Loading…
↗
5
68T4532100
Plate
Loading…
↗
6
9709506008
Bolt (fj1)
Loading…
↗
7
9788505008
Screw, pan head
Loading…
↗
15
9360412M07
X(24.6")
Pin, dowel (688)
Loading…
↗
9
9707508035
Bolt(70w)
Loading…
↗
10
9299508600
Washer, plain (663)
Loading…
↗
11
60SG5211204D
X(24.6")
Extension
Loading…
↗
12
63V4512700
X(24.6")
Seal
Loading…
↗
13
9299008600
X(24.6")
Washer, plain (663)
Loading…
↗
14
9538008600
X(24.6")
Nut (661)
Loading…
↗
16
9011608M62
X(24.6")
Bolt, stud
Loading…
↗
