Yamaha Outboard Parts - UPPER CASING - FT8GEP (2025) | Flood Marine

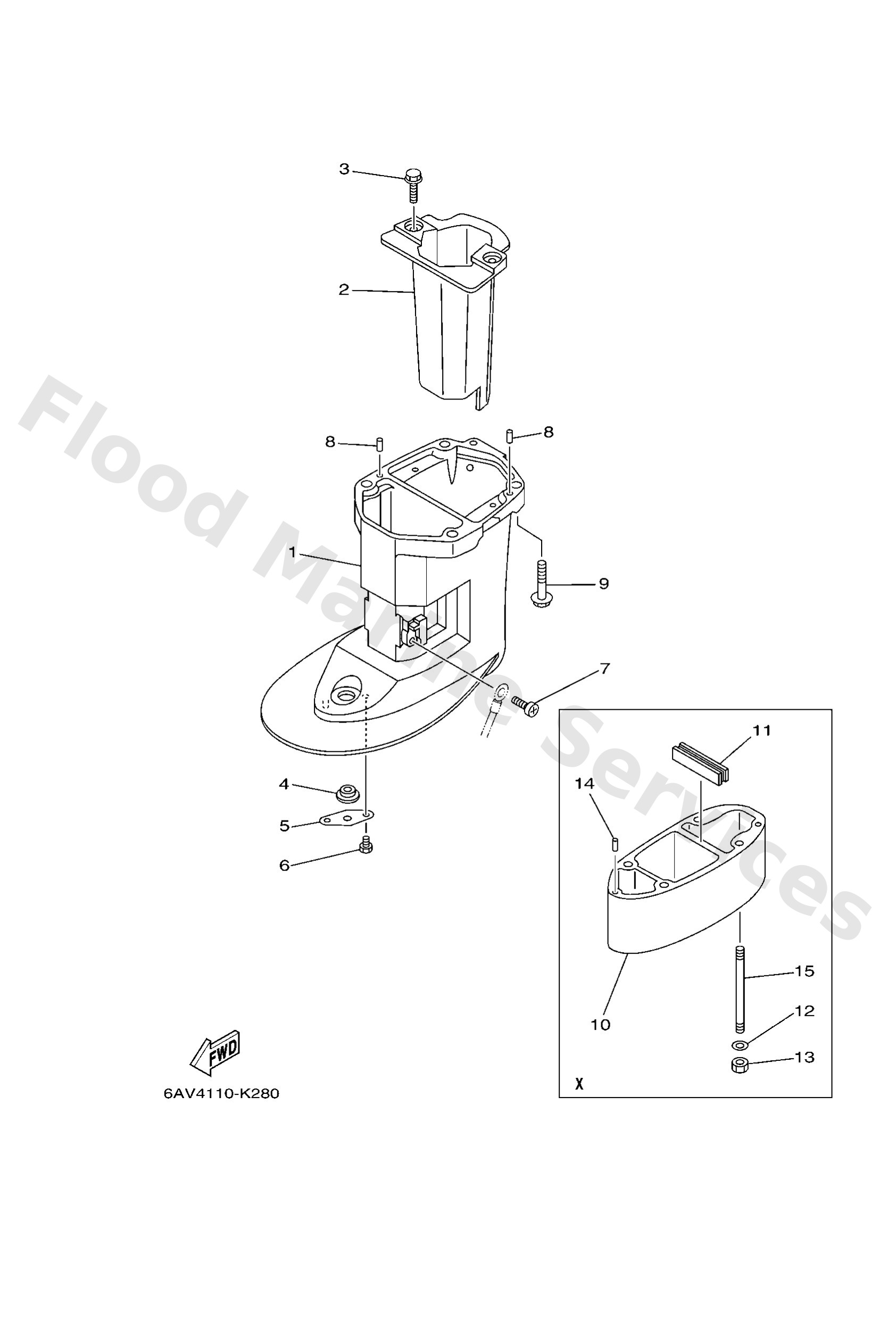

Diagram: UPPER CASING

Diagram

Parts List

Reference
Description
Price


1
6AU45111108D
Casing, upper
Loading…

↗
2
6AU1471100CA
Muffler 1
Loading…

↗
3
97E7506514
Bolt, hexagon w/w deep recess
Loading…

↗
4
9048014M54
Grommet
Loading…

↗
5
68T4532100
Plate
Loading…

↗
6
97D9506008
Bolt, hexagon deep recess
Loading…

↗
7
9788505008
Screw, pan head
Loading…

↗
14
9360412M07 X(24.4")
Pin, dowel (688)
Loading…

↗
9
97E9508535
Bolt, hexagon w/w deep recess
Loading…

↗
10
69G45211208D X(24.4")
Extension
Loading…

↗
11
63V4512701 X(24.4")
Seal
Loading…

↗
12
9299008600 X(24.4")
Washer, plain (663)
Loading…

↗
13
9538008600 X(24.4")
Nut (661)
Loading…

↗
15
9011608M62 X(24.4")
Bolt, stud
Loading…

↗
