Yamaha Outboard Parts - UPPER CASING - FT9.9DEP (2002) | Flood Marine

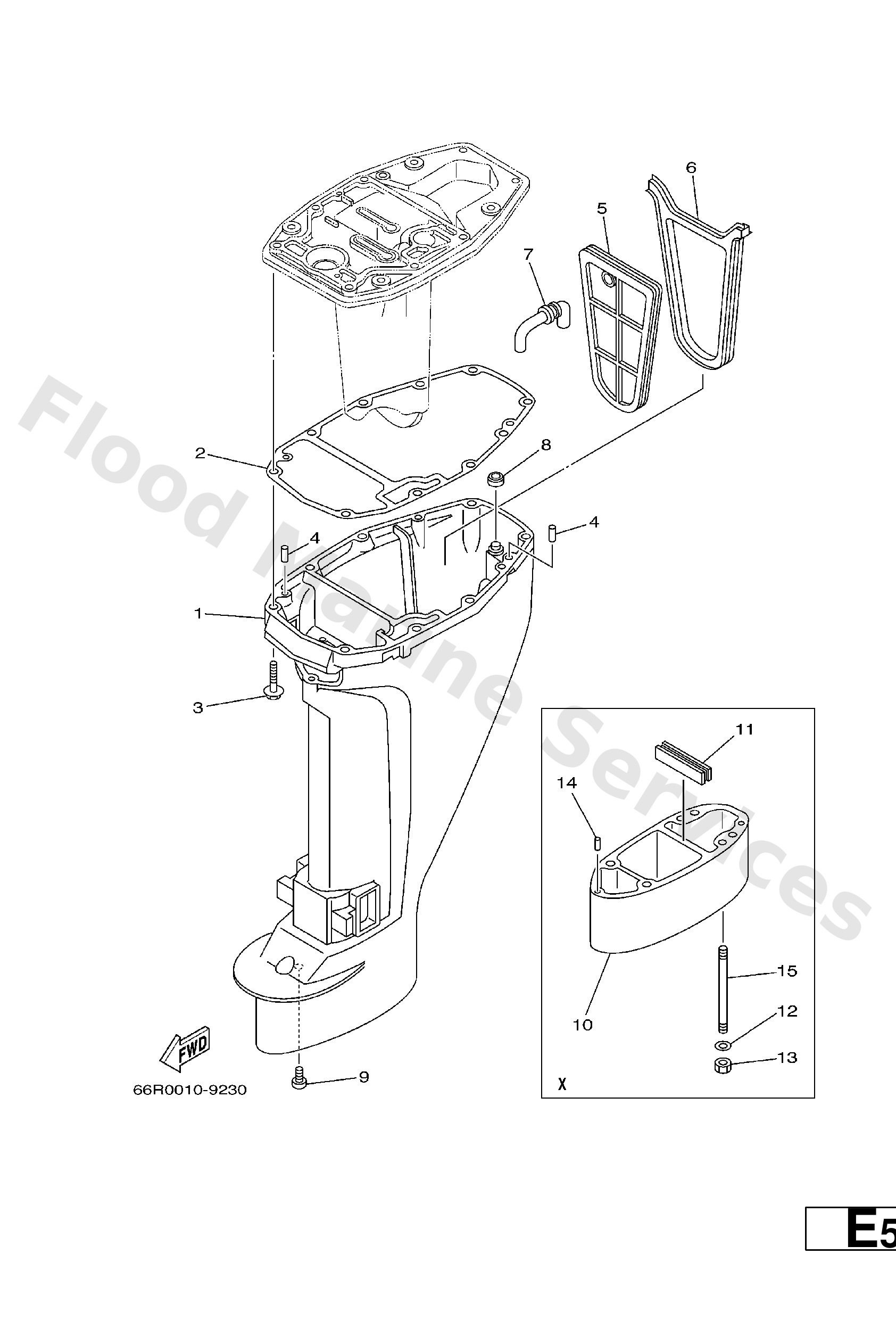

Diagram: UPPER CASING

Diagram

Parts List

Reference
Description
Price


1
66M−45111−10−4D L,X
Casing, upper
Loading…

↗
2
66M−45113−00
Gasket, upper casing
Loading…

↗
3
97575−08545
Bolt, hexagon w/w deep recess
Loading…

↗
4
93606−12019
Pin, dowel (614)
Loading…

↗
5
66M−45126−00
20 −
Loading…

↗
6
66M−45115−00
Gasket, upper casing
Loading…

↗
7
66M−45136−00
Pipe
Loading…

↗
8
66M−45128−00
Seal 2
Loading…

↗
9
90157−06M06
Screw, pan head(6m7)
Loading…

↗
10
66R−45211−20−4D X
22 −
Loading…

↗
11
63V−45127−00 X
Seal
Loading…

↗
12
92990−08600 X
Washer, plain (663)
Loading…

↗
13
95380−08600 X
Nut (661)
Loading…

↗
14
93604−12M07 X
Pin, dowel (688)
Loading…

↗
15
90116−08M62 X
Bolt, stud
Loading…

↗
