FT9.9DMH (2008)
UPPER CASING

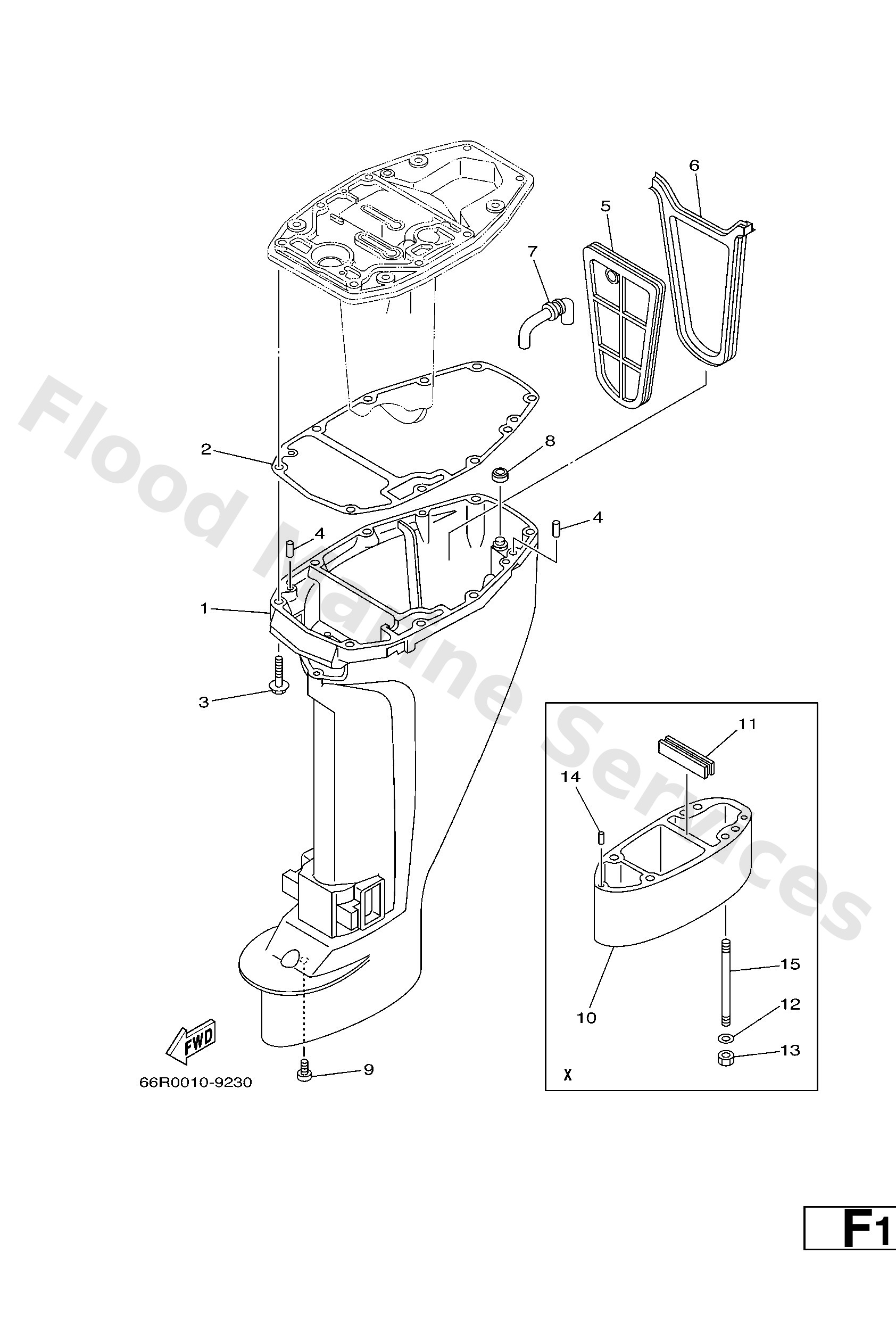

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
66M45111104D
Casing, upper
Loading…
↗
2
66M4511300
Gasket, upper casing
Loading…
↗
3
9757508545
Bolt, hexagon w/w deep recess
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
66M4512600
Plate, Seal Damper
Loading…
↗
6
66M4511500
Gasket, upper casing
Loading…
↗
7
66M4513600
Pipe
Loading…
↗
8
66M4512800
Seal 2
Loading…
↗
9
9015706M06
Screw, pan head(6m7)
Loading…
↗
10
66R45211204D
X(25.0")
-
Loading…
↗
11
63V4512700
X(25.0")
Seal
Loading…
↗
12
9299008600
X(25.0")
Washer, plain (663)
Loading…
↗
13
9538008600
X(25.0")
Nut (661)
Loading…
↗
14
9360412M07
X(25.0")
Pin, dowel (688)
Loading…
↗
15
9011608M62
X(25.0")
Bolt, stud
Loading…
↗
