FT9.9LMH (2020)
UPPER CASING

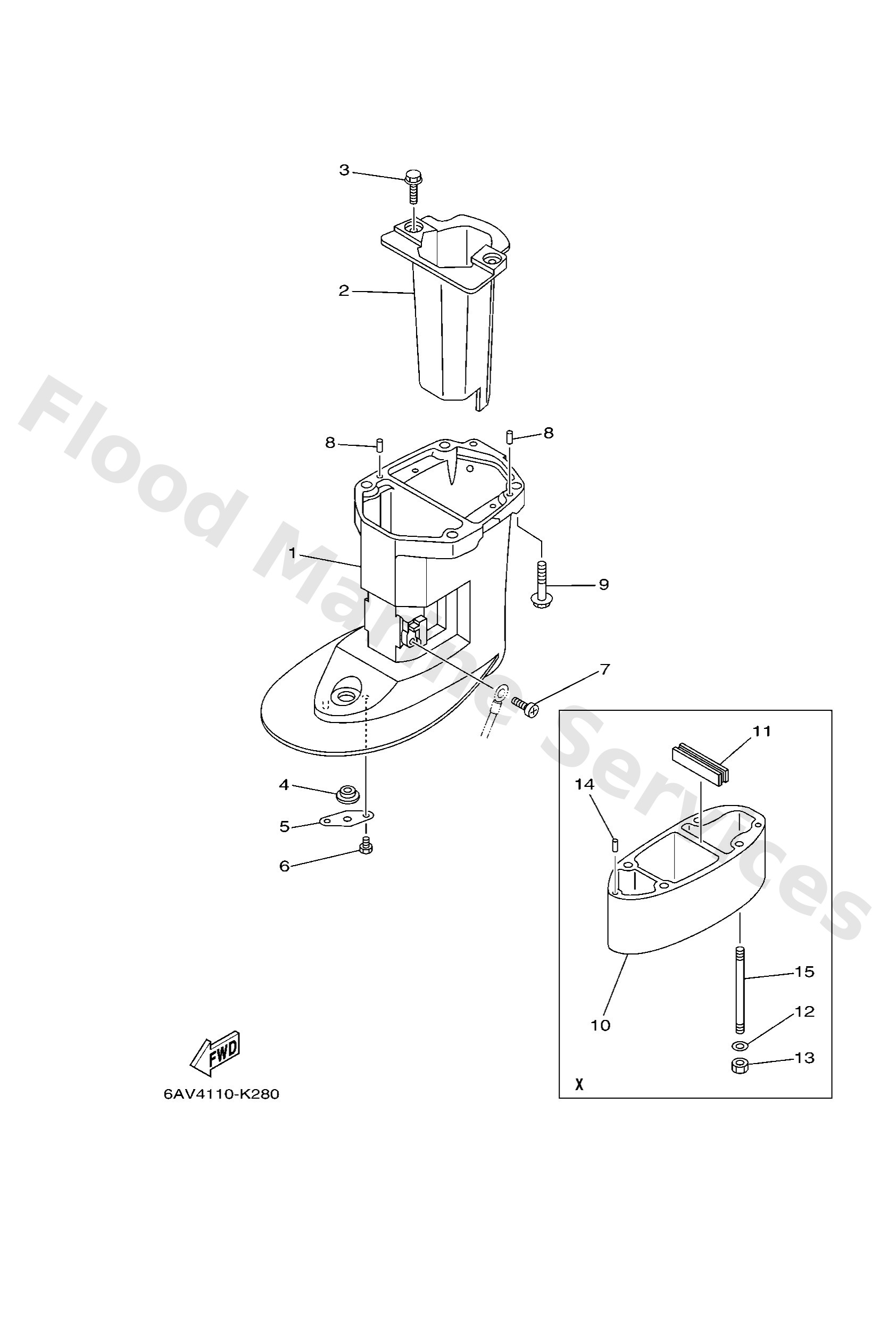

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6AU45111108D
Casing, upper
Loading…
↗
2
6AU1471100CA
Muffler 1
Loading…
↗
3
97E7506514
Bolt, hexagon w/w deep recess
Loading…
↗
4
9048014M54
Grommet
Loading…
↗
5
68T4532100
Plate
Loading…
↗
6
97D9506008
Bolt, hexagon deep recess
Loading…
↗
7
9788505008
Screw, pan head
Loading…
↗
14
9360412M07
X(24.4")
Pin, dowel (688)
Loading…
↗
9
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
10
69G45211208D
X(24.4")
Extension
Loading…
↗
11
63V4512700
X(24.4")
Seal
Loading…
↗
12
9299008600
X(24.4")
Washer, plain (663)
Loading…
↗
13
9538008600
X(24.4")
Nut (661)
Loading…
↗
15
9011608M62
X(24.4")
Bolt, stud
Loading…
↗
