L250AETO (2005)
UPPER CASING

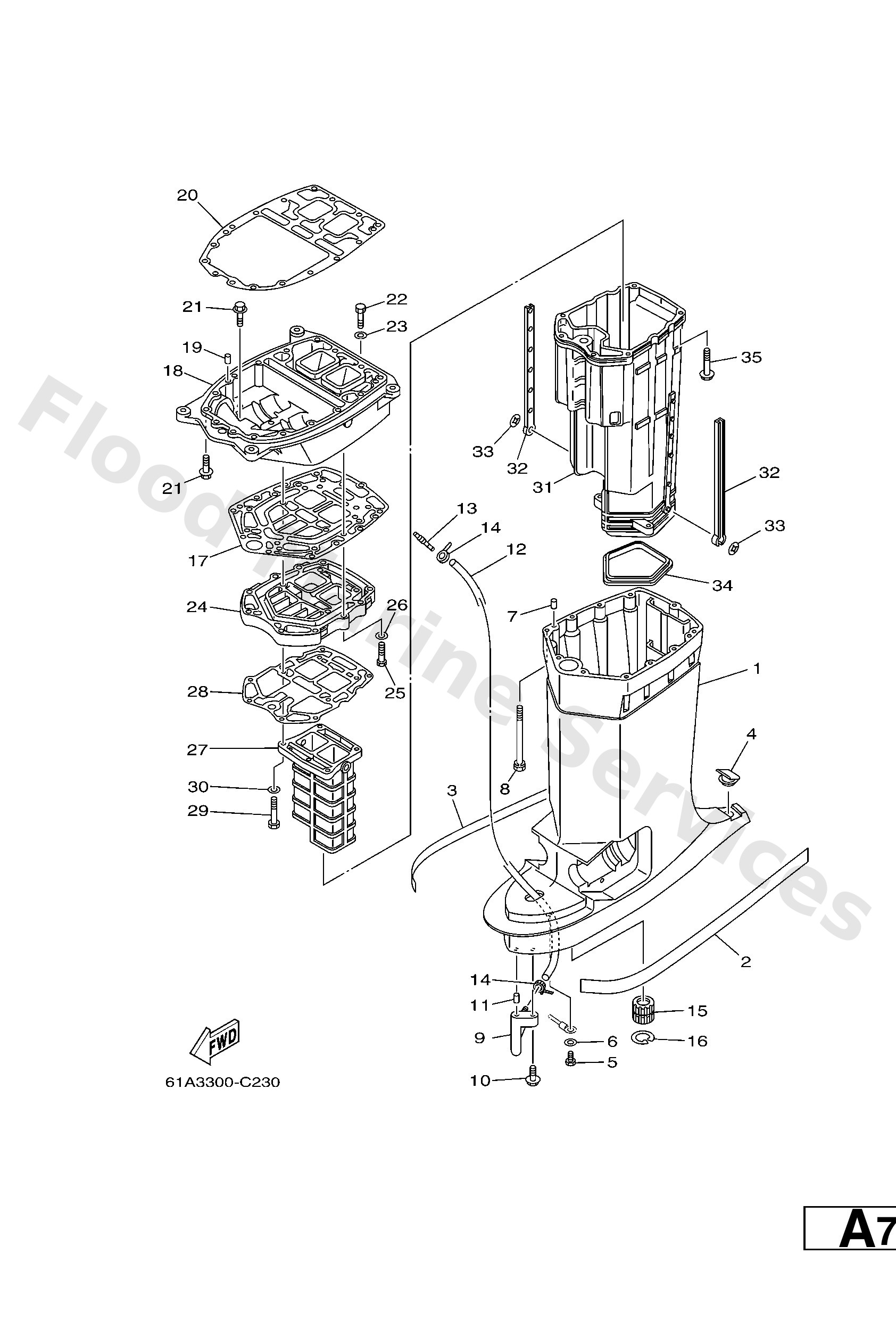

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
61A45111228D
X
Casing, upper
Loading…
↗
2
61A42791S0
Mark 1
Loading…
↗
3
61A42792S0
Mark
Loading…
↗
4
61A4515500
Cap
Loading…
↗
5
9709506010
Bolt
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9360812M05
Pin, dowel b (6e5)
Loading…
↗
8
9011908M78
Bolt, with washer
Loading…
↗
9
61A4537800
Nipple, hose
Loading…
↗
10
9011906M17
Bolt, with washer
Loading…
↗
11
9360612019
Pin, dowel (614)
Loading…
↗
12
9044507MF0
X
Hose (l1160)
Loading…
↗
13
6E58355800
End, nipple
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
6E54531800
Bushing, drive shaft 3
Loading…
↗
16
9342036M01
Circlip (6a0)
Loading…
↗
17
61A45114A0
Gasket, upper casing
Loading…
↗
18
61A411370594
Guide, exhaust
Loading…
↗
20
61A45113A0
Gasket, upper casing
Loading…
↗
21
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
22
9709508035
Bolt(70w)
Loading…
↗
23
9299508600
Washer, plain (663)
Loading…
↗
24
61A41131015B
Manifold, ext. 1
Loading…
↗
27
61A41132015B
Manifold, exhaust
Loading…
↗
28
61A41134A0
Gasket, exhaust manifold
Loading…
↗
29
9709508050
Bolt (62k)
Loading…
↗
31
61A14711225B
Muffler 1
Loading…
↗
32
6E51473700
Damper, muffler
Loading…
↗
33
9018305M02
Nut, spring (6e5)
Loading…
↗
34
61A4512301
Gasket, muffler
Loading…
↗
35
9011908M74
Bolt, with washer(61a)
Loading…
↗
