L250BETO (2002)
UPPER CASING

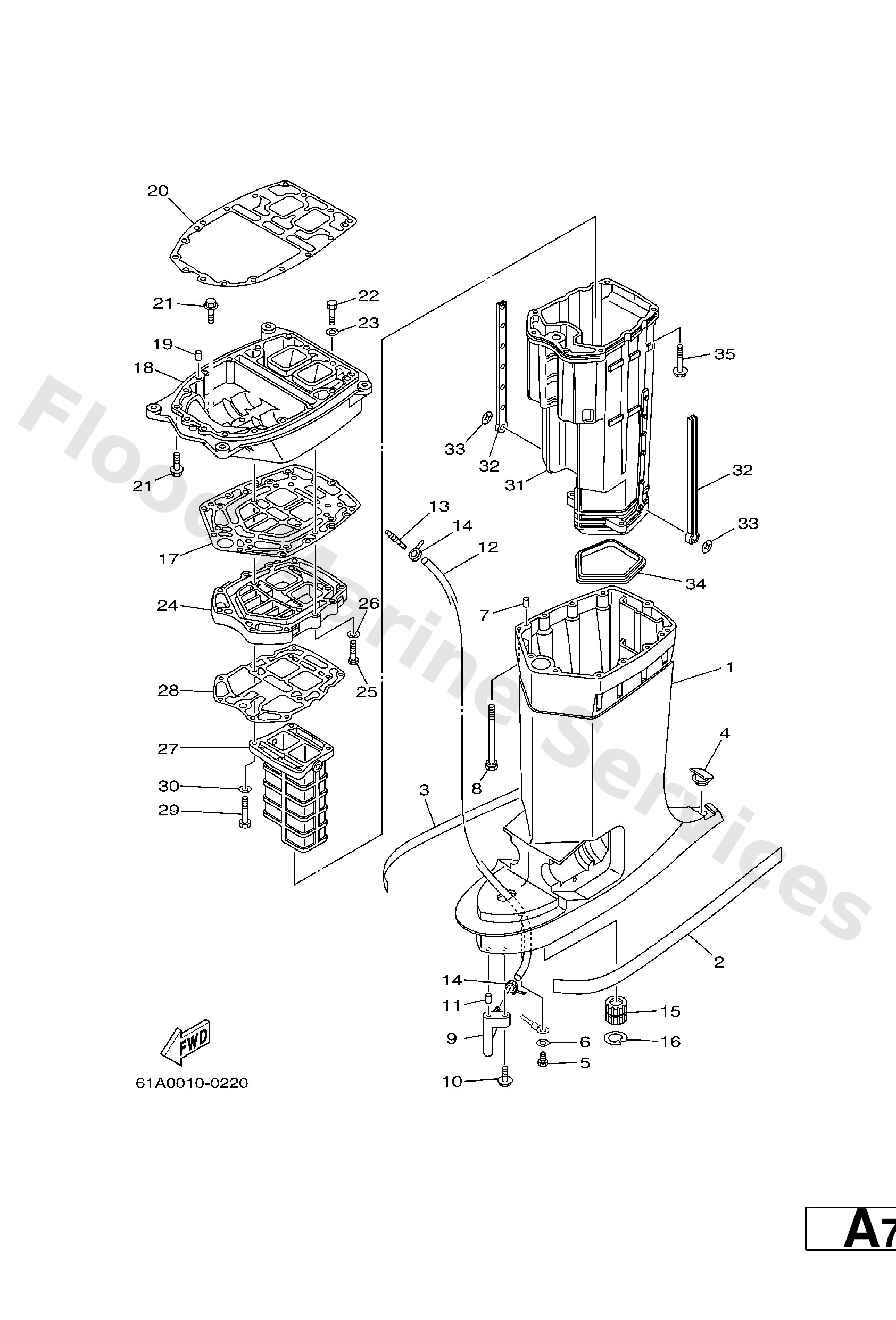

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
61A45111218D
X
Casing, Upper
Loading…
↗
2
61A42791S0
Mark 1
Loading…
↗
3
61A42792S0
Mark
Loading…
↗
4
61A--45155--00
Cap
Loading…
↗
5
97095--06010
Bolt
Loading…
↗
6
92995--06600
Washer, plain (646)
Loading…
↗
7
93608--12M05
Pin, dowel b (6e5)
Loading…
↗
8
90119--08027
Bolt, with washer
Loading…
↗
9
61A--45378--00
Nipple, hose
Loading…
↗
10
90119--06M17
Bolt, with washer
Loading…
↗
11
93606--12019
Pin, dowel (614)
Loading…
↗
12
90445--07MF0
X
Hose (l1160)
Loading…
↗
13
6E5--83558--00
End, nipple
Loading…
↗
14
90465--11M10
Clamp
Loading…
↗
15
6E5--45318--00
Bushing, drive shaft 3
Loading…
↗
16
93420--36M01
Circlip (6a0)
Loading…
↗
17
61A--45114--A0
Gasket, upper casing
Loading…
↗
18
61A411370394
Guide, exhaust
Loading…
↗
20
61A--45113--A0
Gasket, upper casing
Loading…
↗
21
90119--08M79
Bolt, hexagon (fj1)
Loading…
↗
22
97095--08035
Bolt(70w)
Loading…
↗
23
92995--08600
Washer, plain (663)
Loading…
↗
24
61A41131005B
Manifold, ext. 1
Loading…
↗
27
61A41132015B
Manifold, exhaust
Loading…
↗
28
61A--41134--A0
Gasket, exhaust manifold
Loading…
↗
29
97095--08050
Bolt (62k)
Loading…
↗
31
61A14711225B
Muffler 1
Loading…
↗
32
6E5--14737--00
Damper, muffler
Loading…
↗
33
90183--05M02
Nut, spring (6e5)
Loading…
↗
34
61A4512301
Gasket, muffler
Loading…
↗
35
90119--08M74
Bolt, with washer(61a)
Loading…
↗
